Want to break through the bottlenecks of efficiency and precision in Arabic gum processing? Our Arabic Gum Pulverizer Mill is designed precisely to solve industry pain points! As core processing equipment for food, pharmaceutical, daily chemical and other fields, it accurately matches the natural characteristics of Arabic gum, upgrading the time‑consuming and labor‑intensive crushing process in traditional technology to efficient and standardized production. No pre‑crushing treatment is required; it directly achieves ultra‑fine powder output of 50–200 mesh, with particle size uniformity far exceeding the industry average, perfectly meeting the high‑end application requirements of beverage emulsification, pharmaceutical adhesion, cosmetic film formation, etc.

Whether you are a baking enterprise pursuing food‑grade purity or a beverage manufacturer in need of stable emulsification effects, this Arabic Gum Pulverizer Mill integrating low‑temperature grinding, dust‑free design and continuous operation can help your Arabic gum powder achieve a qualitative leap in solubility, stability and functionality, and seize the high ground of quality in the fierce market competition!

Table of Contents

1. What is the working principle of the Arabic Gum Pulverizer Mill?
2. Do raw materials of Arabic gum need pre‑crushing and drying?
3. How to select the right model of Arabic Gum Pulverizer Mill?
4. Summary and Recommendations
5. FAQs
6. About Pcreate Machinery

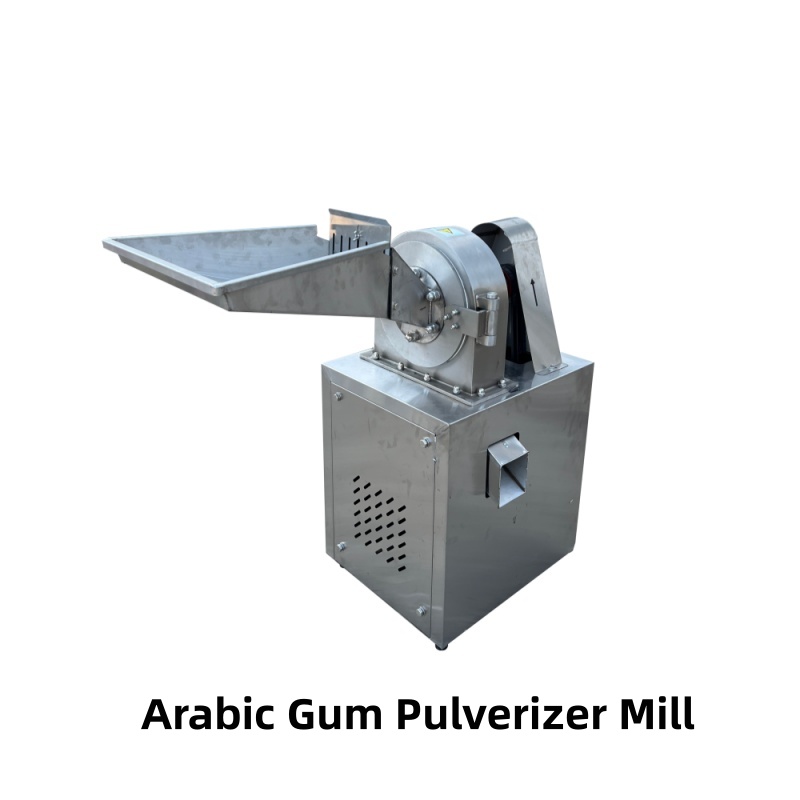

What is the working principle of the Arabic Gum Pulverizer Mill?

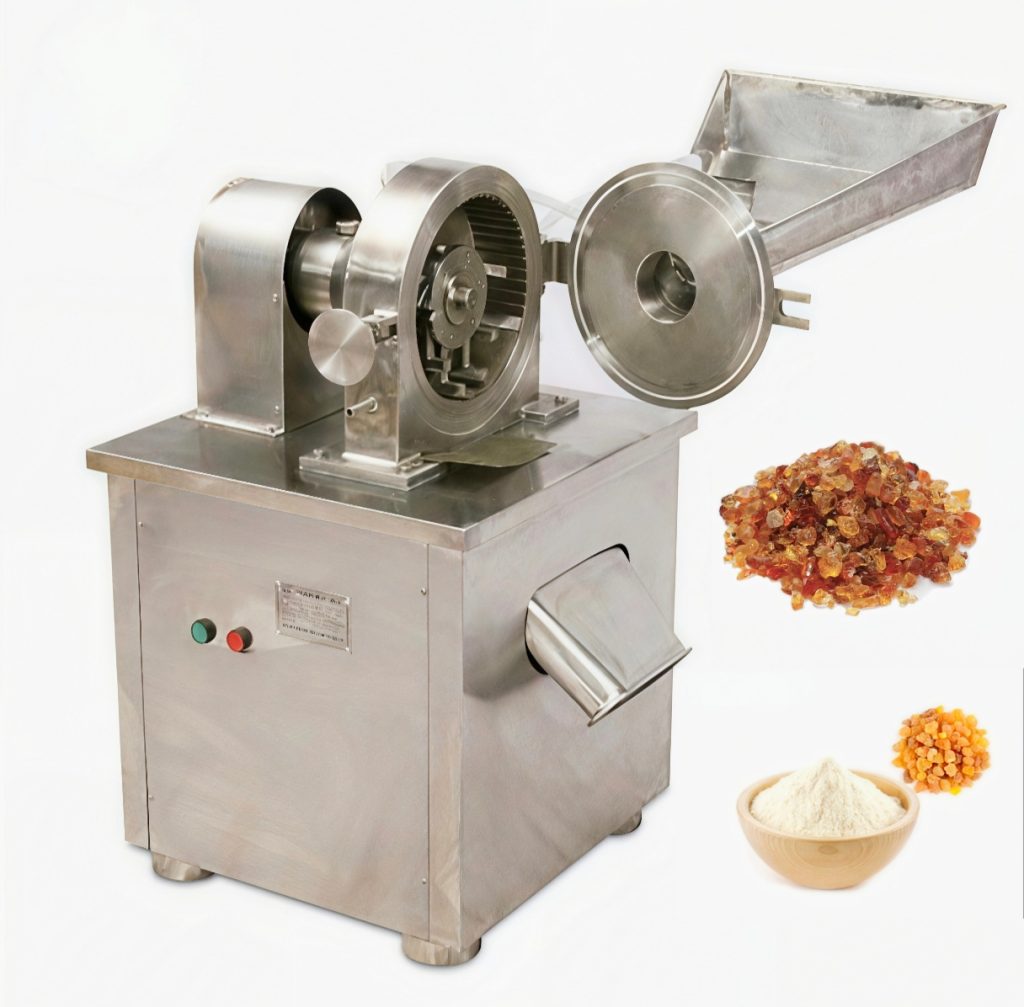

I. Core Structure of the Arabic Gum Pulverizer Mill

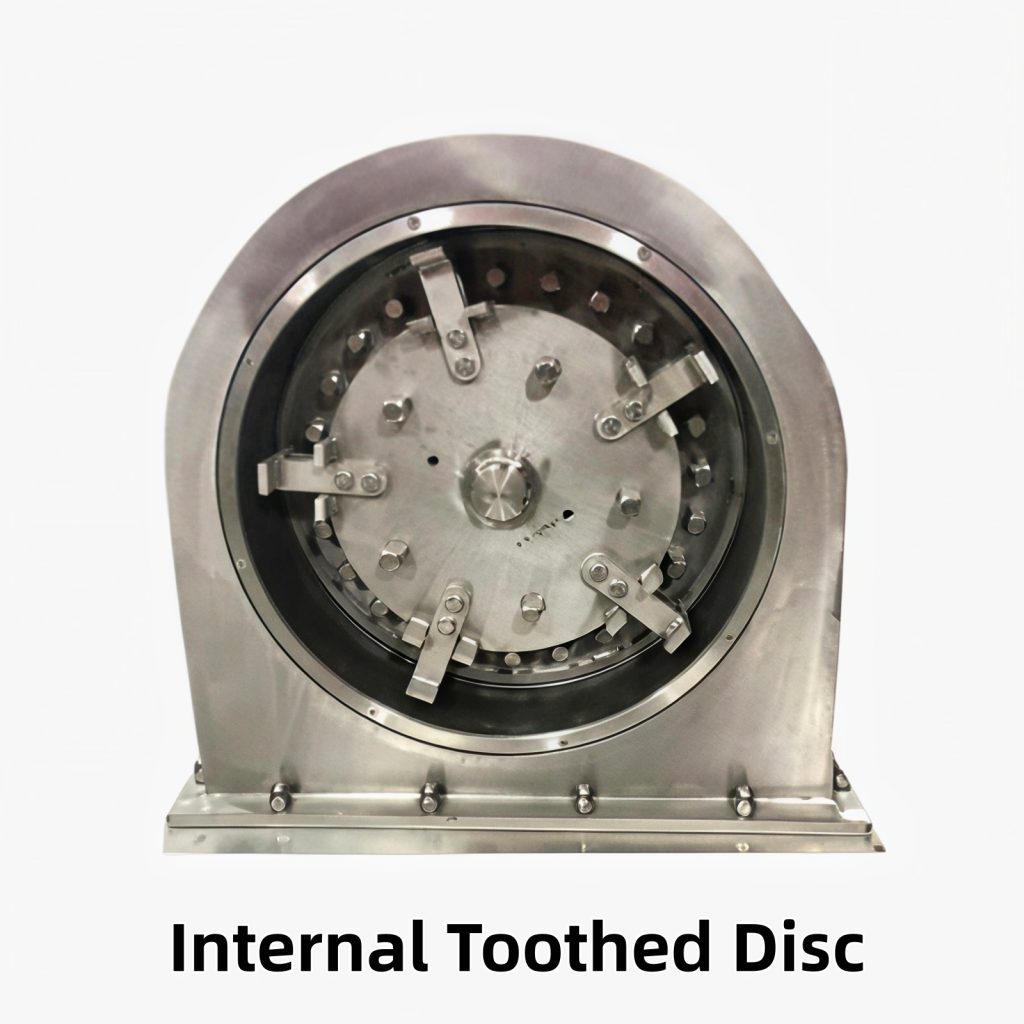

1. Double Toothed Disc Design

• Fixed Toothed Disc (Stator): Installed inside the casing, mostly sharp teeth distributed annularly.
• Rotating Toothed Disc (Rotor): Driven by a motor to rotate at high speed, with teeth interlocking with the fixed toothed disc.
• Material: Food‑grade 304/316 stainless steel, corrosion‑resistant, easy to clean, avoiding contamination of Arabic gum.

2. Feeding System: Hopper to control feeding speed and prevent machine blockage caused by excessive feeding.

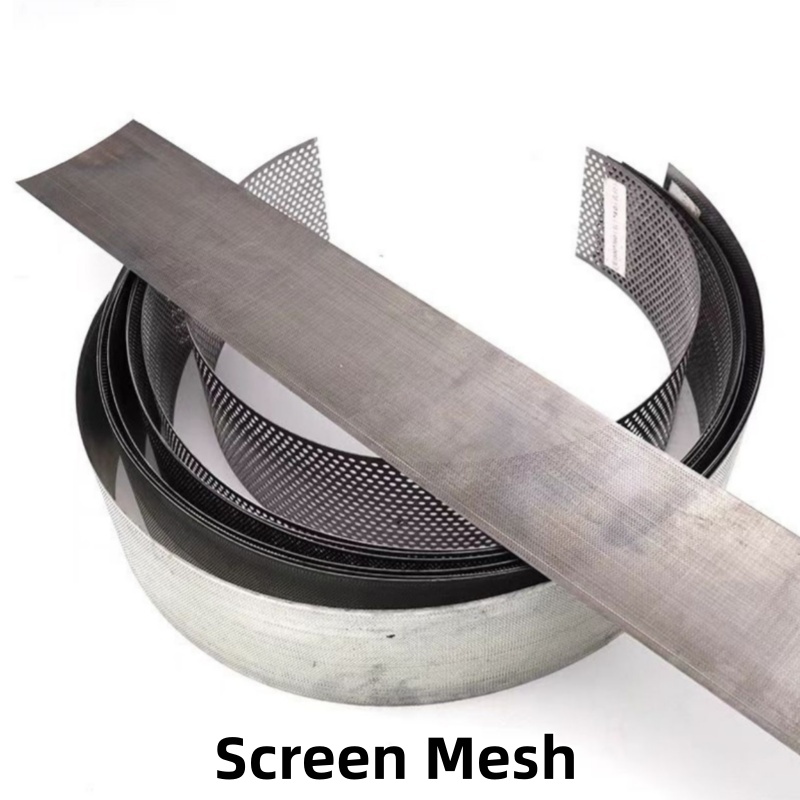

3. Classifying Screen: Installed inside the crushing chamber; the aperture determines the finished product fineness (80–200 mesh replaceable).
4. Temperature Control Design: Some models are equipped with air‑cooled / water‑cooled jackets (for the heat‑sensitive and sticky characteristics of Arabic gum).

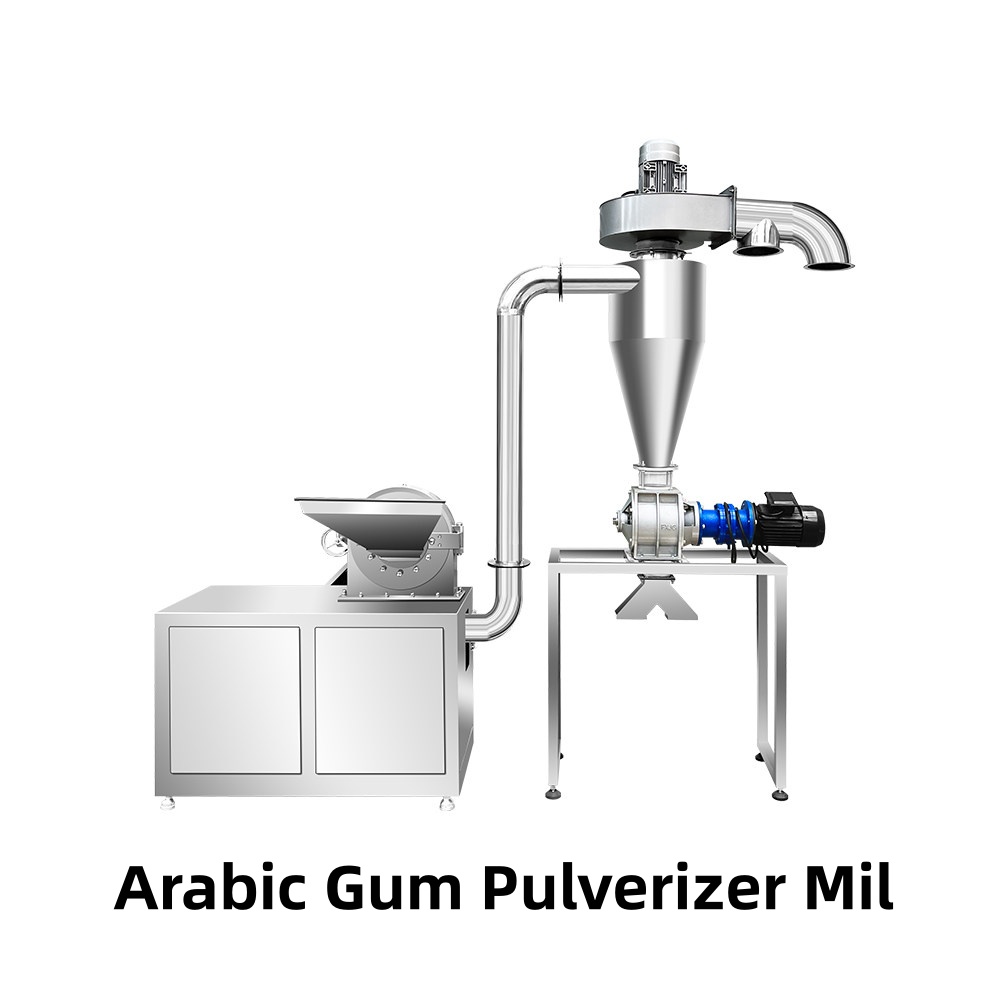

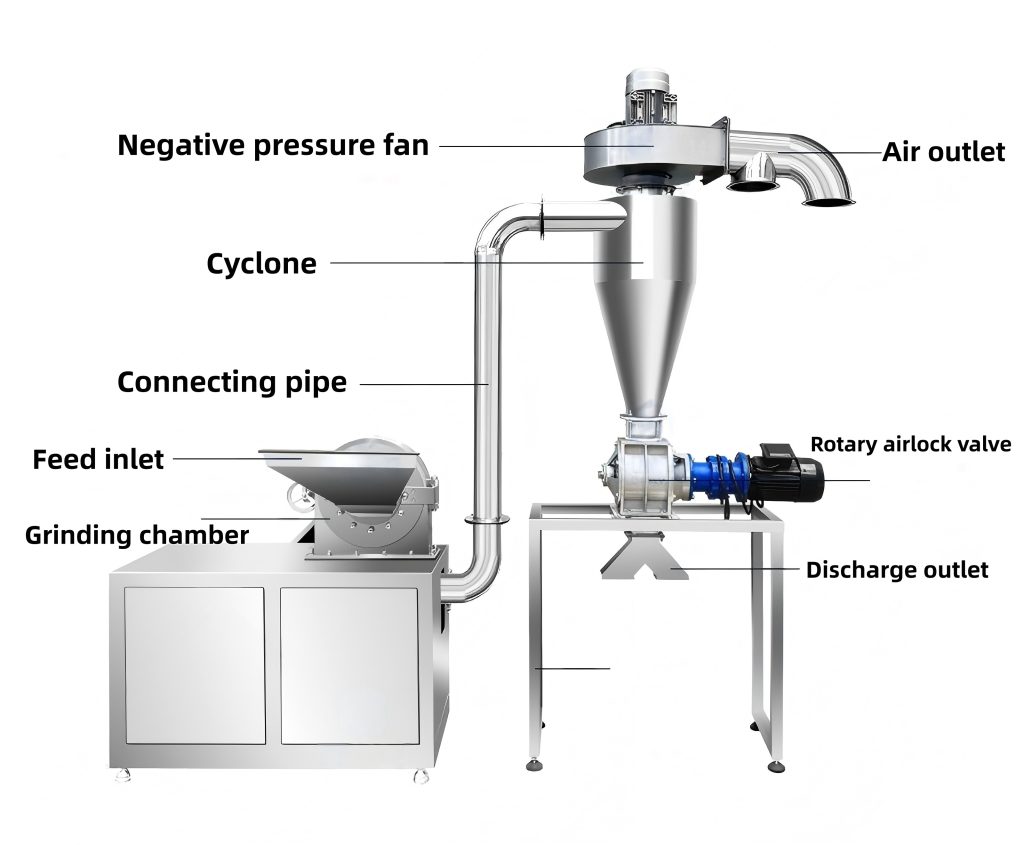

5. Discharge + Dust Removal: Negative pressure discharge, matched with bag filter to avoid dust leakage.

II. Working Process of the Arabic Gum Pulverizer Mill

1. Pretreatment Feeding: Dried block or granular Arabic gum, avoiding moisture absorption and stickiness, enters the crushing chamber through the hopper.
2. Shearing and Crushing by Toothed Discs:

• The rotating toothed disc rotates at high speed, forming strong relative movement with the fixed toothed disc.
• Arabic gum particles enter between the teeth, are sheared and torn by high‑speed tooth tips, and crushed by the impact force of the tooth surface at the same time.

3. Friction Refinement: The crushed small particles produce severe friction due to high‑speed movement between the toothed discs, between particles and the inner wall of the casing, and are further refined into powder.
4. Classifying Discharge:

• Fine powder meeting the screen aperture (80–200 mesh) passes through the screen under the action of air flow and gravity, and is discharged from the discharge port.
• Unqualified coarse particles remain in the crushing chamber and continue to be sheared and impacted by the toothed discs until passing through the screen.

5. Temperature Control Protection: If the model is equipped with air cooling or water cooling, it can reduce the temperature rise during the crushing process, avoiding softening, tooth sticking and screen blocking of Arabic gum.

III. Issues needing special attention when using the Arabic Gum Pulverizer Mill

• Feeding must be dry: Arabic gum becomes sticky after moisture absorption, which will stick to the toothed discs and screens, leading to machine blockage and reduced crushing efficiency.
• Control feeding speed: Excessive feeding will overload the crushing chamber, and the toothed discs cannot shear sufficiently, which increases the risk of machine sticking instead.
• Avoid long‑time continuous crushing: Ordinary toothed disc machines without strong temperature control will have excessive temperature rise after long‑time operation, which will cause softening and deterioration of Arabic gum.

Do raw materials of Arabic gum need pre‑crushing and drying?

I. Is pre‑crushing required for Arabic gum when using the Arabic Gum Pulverizer Mill?

1. Situations where pre‑crushing is recommended

• Raw material is large block Arabic gum (particle size >5 cm):The feeding port of the Arabic Gum Pulverizer Mill is usually only 5–10 cm; large raw materials cannot enter directly, and forced feeding will cause material blockage, machine jamming, and even damage the feeding hopper and toothed discs. Moreover, large raw materials are difficult to be fully sheared in the crushing chamber, which is prone to uneven crushing with “external crushing and internal hardness”, affecting the finished product fineness.
• High output demand (>50 kg/h):After pre‑crushing (cutting raw materials into small pieces of 2–3 cm), feeding is smoother, the toothed discs do not need to repeatedly impact large materials, crushing efficiency can be increased by more than 30%, and equipment wear can also be reduced.

2. Situations where pre‑crushing is not required

• Raw material is granular (particle size <2 cm) or powder:It can directly enter the Arabic Gum Pulverizer Mill without additional treatment.

Pre‑crushing suggestions:

• Simple solution: Manual cutting with tools, suitable for small‑batch production.

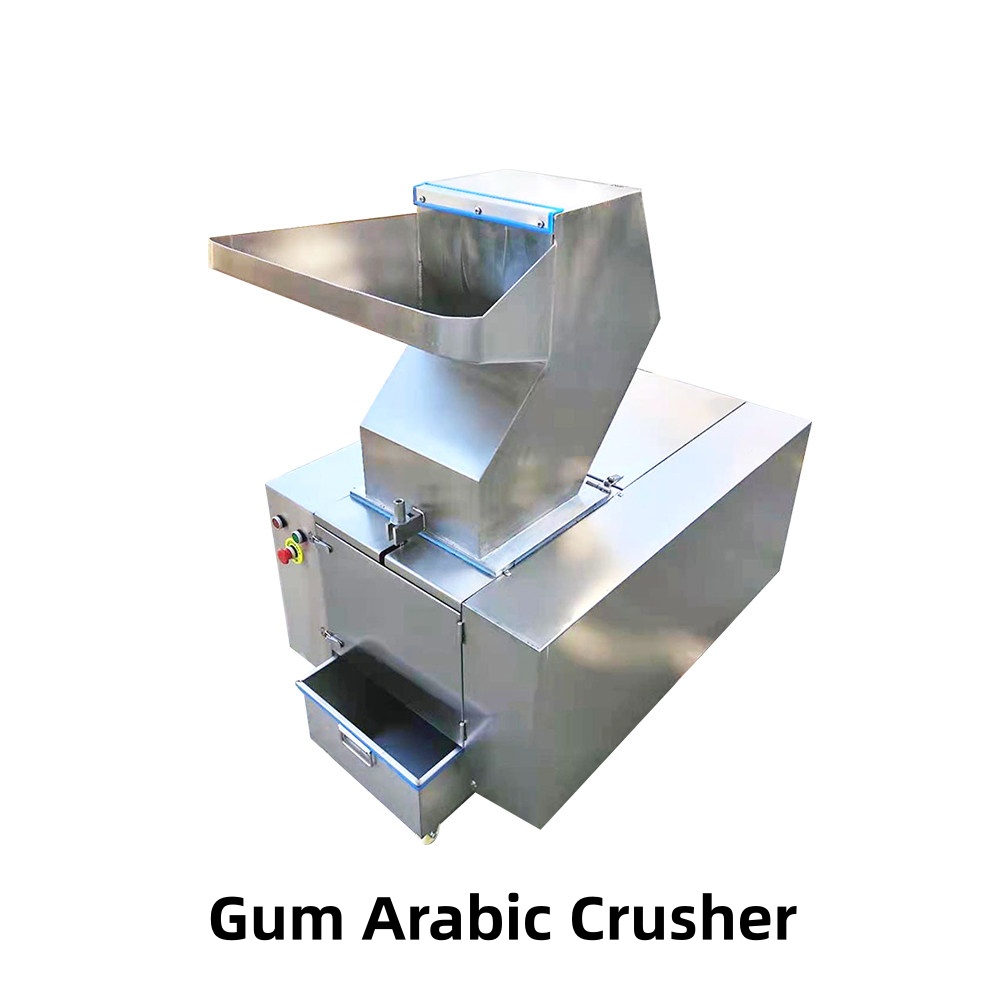

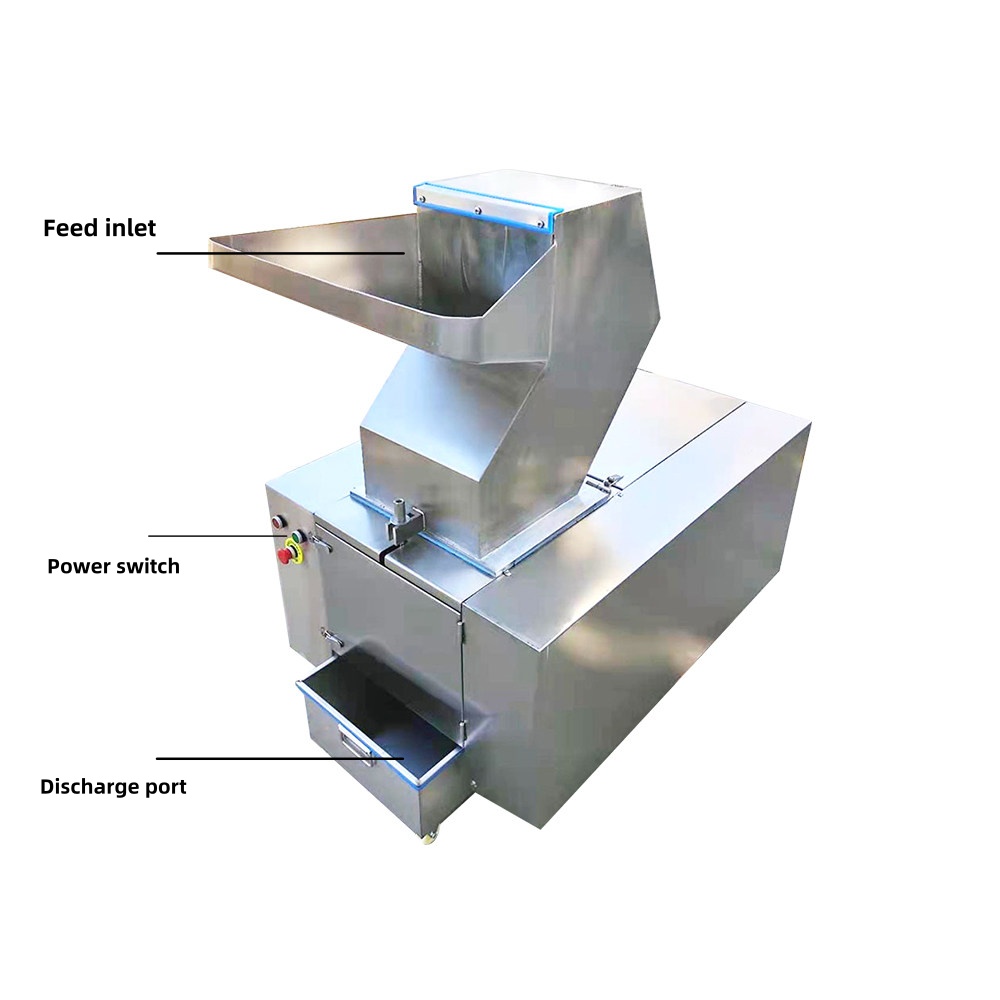

• Efficient solution: Equipped with a crusher, suitable for medium‑batch production; the particle size after crushing is best controlled at 1–3 cm.

II. Does Arabic gum need drying? — Must be dried

1. Core necessity of drying

• Arabic gum is a water‑soluble polysaccharide with extremely high moisture absorption:If the moisture content of raw materials is >8%, the following problems will occur:① Machine sticking and screen blocking: Wet raw materials soften due to friction temperature rise during crushing, stick to the toothed discs, screens and inner wall of the casing, resulting in poor discharge and machine blockage, and even shutdown for cleaning.② Finished product agglomeration: The crushed fine powder is easy to agglomerate after moisture absorption, unable to form uniform loose powder, affecting subsequent use.③ Deterioration risk: Arabic gum may breed microorganisms in a humid environment, especially food‑grade applications that will violate hygiene standards.

2. Specific requirements for drying

• Moisture content control: After drying, the moisture content of raw materials should be ≤5% (optimally 3–5%). At this time, Arabic gum is brittle, easy to shear and crush, and there is no risk of machine sticking.
• Drying temperature: Arabic gum has average heat resistance; the recommended drying temperature is 60–80°C (low‑temperature slow drying) to avoid colloid denaturation and deepening of color caused by high temperature.
• Drying equipment: Oven for small batches, dryer for medium batches; sealed storage is required after drying to prevent re‑moisture absorption.

III. Special situation: scenarios without pretreatment

Pre‑crushing and drying of Arabic gum can be omitted only when all the following conditions are met:

1. Raw material is dry fine particles (moisture content ≤5%, <1 cm).
2. Extremely low output (<10 kg/h), and no high requirements for grinding efficiency.
3. The equipment is a special model with strong air cooling + anti‑stick coating.

How to select the right model of Arabic Gum Pulverizer Mill?

1. Raw material condition

2. Core requirements for finished products

(1) Fineness requirements

(2) Purity and hygiene standards

3. Capacity demand

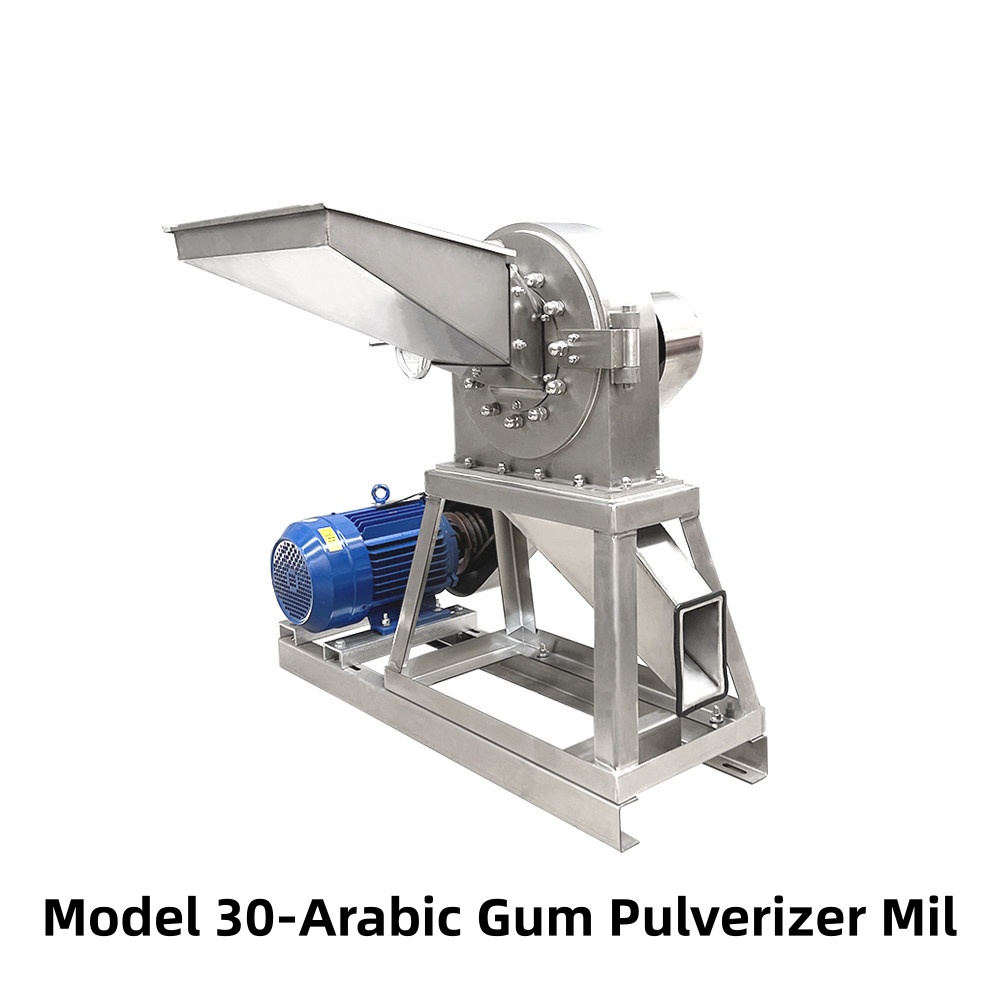

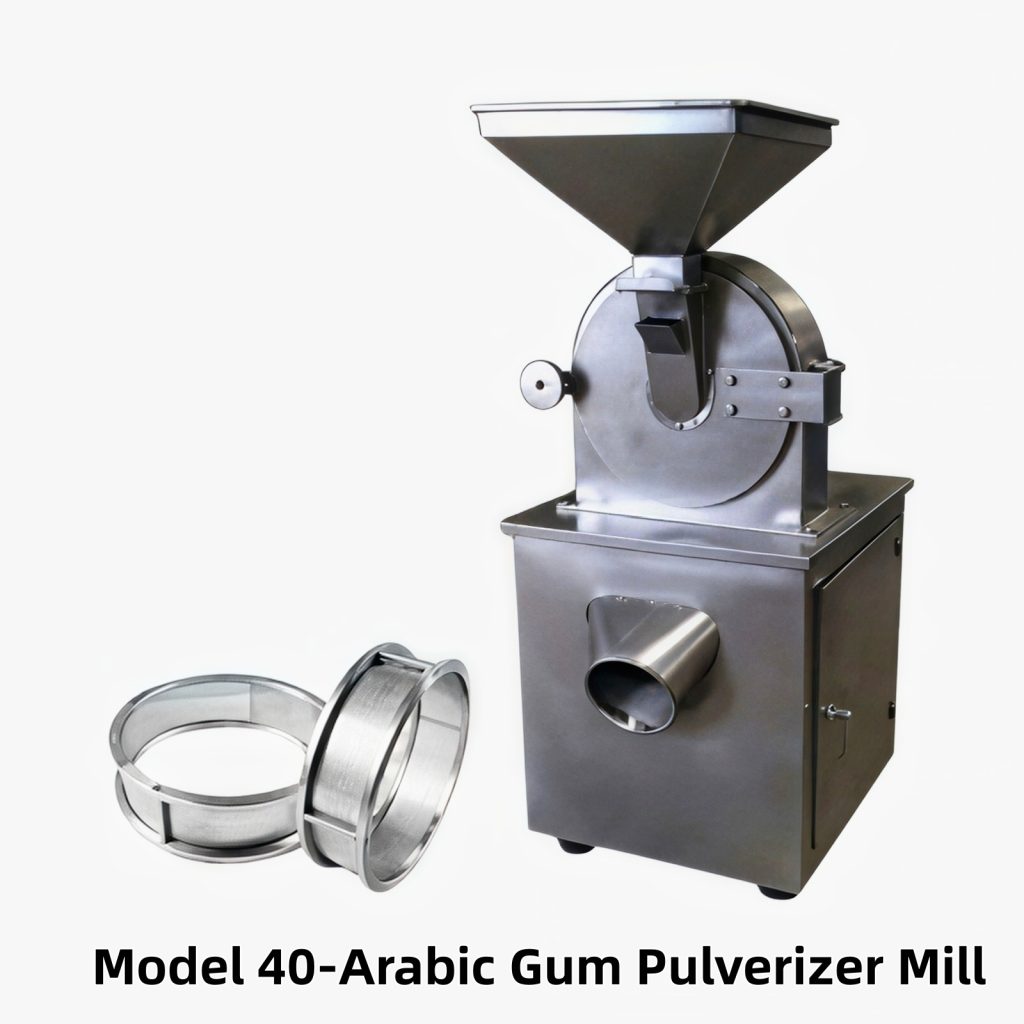

4. Models of Arabic Gum Pulverizer Mill

5. Core configuration of Arabic gum powder production line

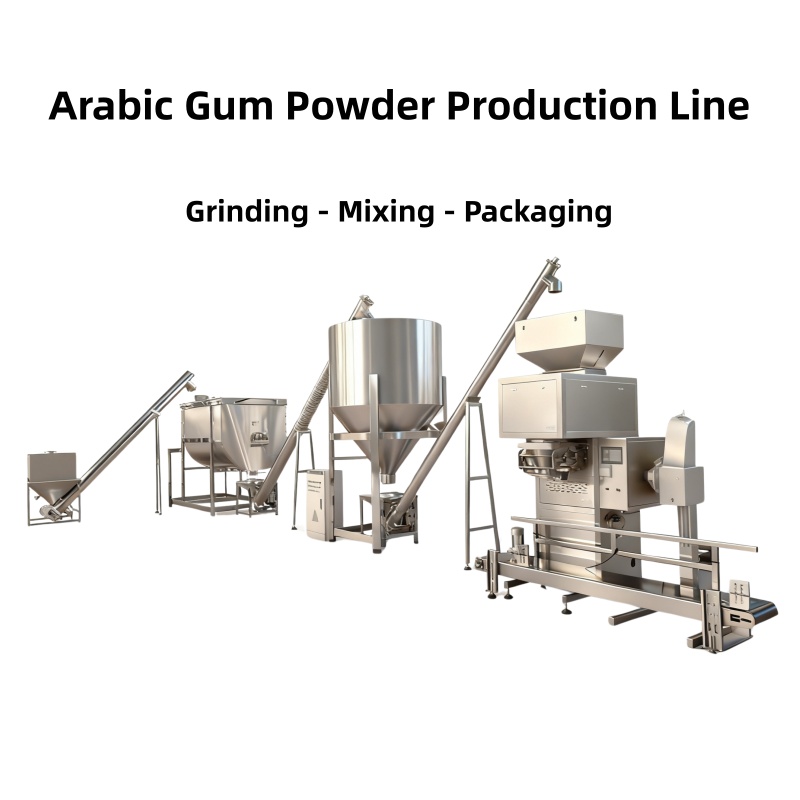

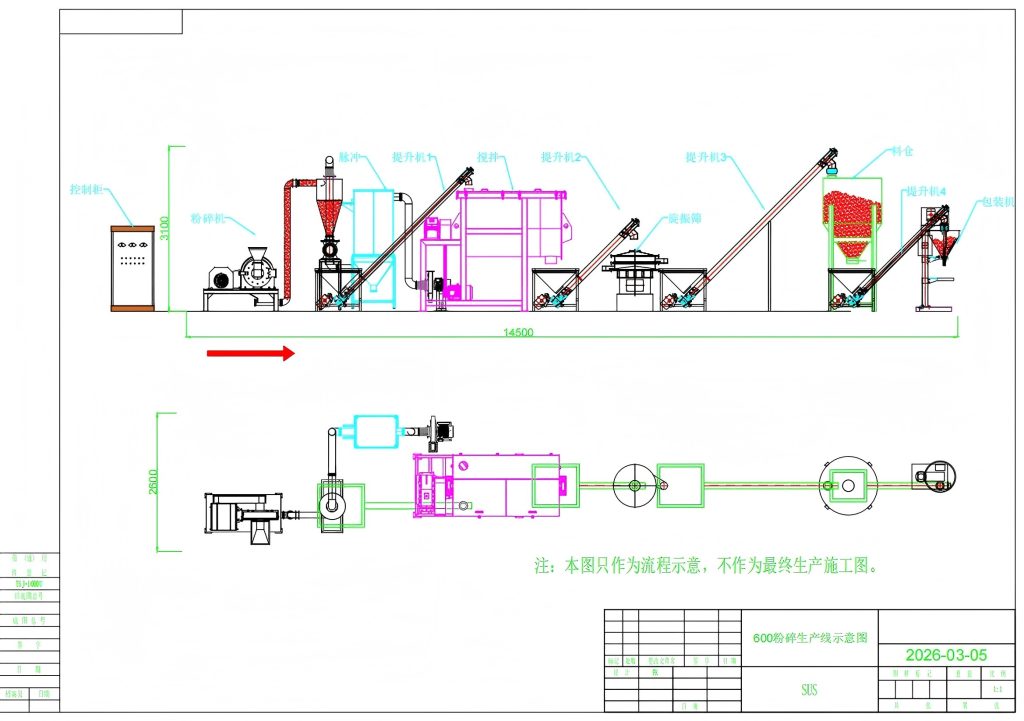

If you are a large‑scale Arabic gum powder processing factory with an hourly output of more than 1 ton, we recommend using our Arabic gum powder production line. Our Arabic gum powder production line features continuous automatic production, fast processing speed, high output and good quality. This Arabic gum powder production line produces Arabic gum powder products after drying, crushing, grinding, mixing, packaging and other processes.The Arabic gum powder production line includes dryer, Arabic gum crusher, Arabic gum pulverizer mill, Arabic gum powder mixer, Arabic gum powder elevator, Arabic gum powder packaging machine.

Arabic gum powder production line

Remarks: The Arabic gum powder production line can be customized according to your requirements.

Summary and Recommendations

Choosing our Arabic Gum Pulverizer Mill means choosing a worry‑free and efficient production solution! The Arabic Gum Pulverizer Mill adopts high‑quality food‑grade materials, passes multiple international certifications, is safe and residue‑free, and is suitable for large‑scale production in multiple scenarios. Equipped with an intelligent control system and convenient maintenance design, it not only greatly reduces labor and energy costs, but also continuously and stably outputs high‑quality Arabic gum powder.We provide professional technical support and comprehensive after‑sales guarantee to escort your production throughout the process. Whether you are seeking capacity upgrade or quality breakthrough, this Arabic Gum Pulverizer Mill will become your powerful partner in exploring the market, helping you take a steady lead in the industry track and gain more commercial value!

FAQs

1. Do I need to dry and crush Arabic gum before grinding?

Yes. Before grinding, you need to ensure that Arabic gum is completely dry and in small particles to prevent caking, mold, blockage and damage to the machine during grinding.

2. How to obtain different fineness levels of Arabic gum powder?

The fineness of Arabic gum powder can be adjusted by replacing screens with different apertures.

3. Can this Arabic Gum Pulverizer Mill process other raw materials?

Yes. This Arabic Gum Pulverizer Mill can also grind dry herbs, fruit raw materials, vegetable raw materials, condiments and food materials, such as coffee beans, cocoa beans, dried banana slices, white sugar, etc.
