Expertly Built for Perfect Mixing — Ribbon Blender Boosts Powder Processing Efficiency & Quality
1666This ribbon flour mixer has a pro ribbon mixing setup – mixes flour 360 degrees all around perfectly!
Voir les détailsFruit Powder Grinding Machine
Fruit powder processing turns fresh or dried fruit into fine powder through two core steps: dehydration (or freeze-drying) and grinding. Moisture is removed via hot air drying, or freeze-drying, with freeze-drying best preserving nutrients, color, and aroma. Once moisture drops below 8%, the dried fruit is ground into uniform powder using a fruit powder grinding machine.
A complete fruit powder production line includes feeding, grinding, dust collection, mixing, storage, and packaging, working together for efficient, stable, large-scale production.
Table des matières
- What is a Fruit Powder Grinding Machine?
- What is the role of the Fruit Powder Grinding Machine in the production line?
- Can the Fruit Powder Grinding Machine grind dried fruits, frozen fruits and soft fruits?
- Does the grinding process of the Fruit Powder Grinding Machine affect nutrition, color and flavor?
- Is the Fruit Powder Grinding Machine suitable for commercial use?
- What is the hourly output of the Fruit Powder Grinding Machine?
- Additional FAQs About Fruit Powder Grinding Machine
- About Pcreate Machinery
What is a Fruit Powder Grinding Machine?
The fruit powder grinding machine uses a tooth-claw grinding principle to turn dried or freeze-dried fruit into fine powder. It can be integrated with supporting systems such as feeding, dust collection, mixing, storage, and packaging.
Material: 304 stainless steel (food grade), upgradeable to 316.
Working principle: Rotating and stationary grinding discs create shear, compression, and grinding forces, working with a screen to complete the process.
Fineness adjustment: Controlled by changing screens with different mesh sizes.
Key features: Fine uniform powder, low-temperature grinding, wide applications (health products, baby food, functional foods).
What is the role of the Fruit Powder Grinding Machine in the production line?
The fruit powder grinding machine can operate independently or be combined with supporting equipment for continuous, large-scale production.
I. Complete Production Line Process for Fruit Powder Grinding Machine
| Stage | Equipment | Fonction |
|---|---|---|
| Alimentation | Screw elevator / belt conveyor | Smooth material transfer |
| Grinding | Fruit powder grinding machine | Grinds into uniform fine powder |
| Dust collection | Cyclone / pulse-jet dust collector | Collects dust, clean environment |
| Mixing | Mixer | Evenly blends powder |
| Storage | Storage silo / hopper | Temporary storage |
| Packaging | Packaging machine | Quantifies and packages |
II. Production Line Configuration for Fruit Powder Grinding Machine
- Feeding: Screw elevator (space-saving) or belt conveyor (high efficiency)
- Dust collection: Cyclone (lower cost) or pulse-jet (better performance)
- Mixing: Grinder outlet connects directly to mixer or via screw conveyor
- Storage: Powder transferred to storage silo or hopper via screw conveyor
- Packaging: Storage silo outlet connects to screw conveyor leading to packaging machine
Can the Fruit Powder Grinding Machine grind dried fruits, frozen fruits and soft fruits?
| Material Type | Examples | Processing Requirements |
|---|---|---|
| Dried fruit | Dates, longan, raisins | Moisture ≤ 8%, grind directly |
| Frozen fruit | Strawberries, blueberries, mango | Pre-dry/freeze-dry to moisture ≤ 8% |
| Fresh soft fruit | Strawberries, bananas, peaches | Slice first, then dry/freeze-dry |
Reason: Fresh and frozen fruit have high moisture and soft texture. Direct grinding causes sticking and clumping, making pretreatment necessary.
Does the grinding process of the Fruit Powder Grinding Machine affect nutrition, color and flavor?
No. The fruit powder grinding machine uses low-temperature grinding technology to preserve original quality.
| Advantage | Description |
|---|---|
| Nutrient retention | Prevents heat damage to sensitive nutrients |
| Color protection | Prevents oxidation, retains color |
| Flavor lock | Closed system reduces aroma loss |
| No cross-contamination | Food-grade stainless steel ensures purity |
Is the Fruit Powder Grinding Machine suitable for commercial use?
Yes. Fruit powder grinding machine designed primarily for commercial use.
| Scenario | Application |
|---|---|
| Food processing plants | Batch production of fruit powder & solid drinks |
| Health product companies | Fine processing of health fruit powders |
| Large-scale farms | Value-added processing of homegrown fruits |
| Small processing facilities | Moderate-investment fruit powder production |
II. Performance Advantages of Fruit Powder Grinding Machine
The fruit powder grinding machine operates continuously with stable performance, meeting commercial production demands.
What is the hourly output of the Fruit Powder Grinding Machine?
| Modèle | Voltage (V) | Capacity (kg/h) | Dimensions (mm) | Power (kw) | Poids (kg) | Recommended application |
|---|---|---|---|---|---|---|
| 300 | 380 | 60–150 | 910×830×1100 | 4 | 147 | Small workshops, startups |
| 400 | 380 | 200–400 | 1180×840×1260 | 7.5 | 197 | Small to medium food plants |
| 500 | 380 | 300–500 | 1260×920×1300 | 11 | 315 | Small to medium food plants |
| 600 | 380 | 400–600 | 1350×930×1350 | 15 | 408 | Medium-scale production |
| 800 | 380 | 500–1000 | 1620×1130×1660 | 22 | 460 | Large food factories |
| 1000 | 380 | 800–1200 | 1870×1170×1800 | 30 | 550 | Large-scale production lines |
Actual capacity varies by material and fineness. Abovevalues are reference for 80–100 mesh.
Additional FAQs About Fruit Powder Grinding Machine
I. Fineness Still Not Achieved After Screen Change on Fruit Powder Grinding Machine?
Confirm screen mesh is correct and properly installed. Check if the grinding disc gap is too large. Ensure uniform feeding.
II. How to clean the Fruit Powder Grinding Machine?
Turn off power and wait for complete stop. Remove parts and rinse with water. Wipe body with damp cloth. Do not rinse motor. Dry parts before reassembly.
III. What is the warranty period for the Fruit Powder Grinding Machine?
The fruit powder grinding machine, including motor and grinding discs, is covered by a 1-year warranty. Non-artificial failures are eligible for free repair and parts replacement.
IV. How do you set up a production line with the Fruit Powder Grinding Machine?
Production lines can be customized based on output, space, and material. Complete lines from feeding to packaging are available. Contact us for more information.
About Pcreate Machinery
Pcreate Machinery specializes in food powder processing equipment, with the fruit powder grinding machine as one of its key products. The company offers both stand-alone units and complete production lines from feeding to packaging, covering fruit dehydrators, screw elevators, belt conveyors, cyclone and pulse-jet dust collectors, mixers, storage silos, hoppers, and packaging machines.
The equipment features low-temperature grinding, adjustable fineness, food-grade stainless steel, and full-line integration capabilities.
After-sales services include installation, training, maintenance, troubleshooting, and parts supply.
For selection assistance or production line planning, contact us.
Le précédent : Gelatin Powder Milling Machine
Recommandations connexes
-
-

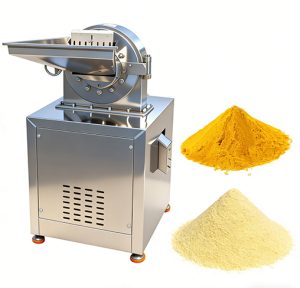

Gelatin Powder Milling Machine
