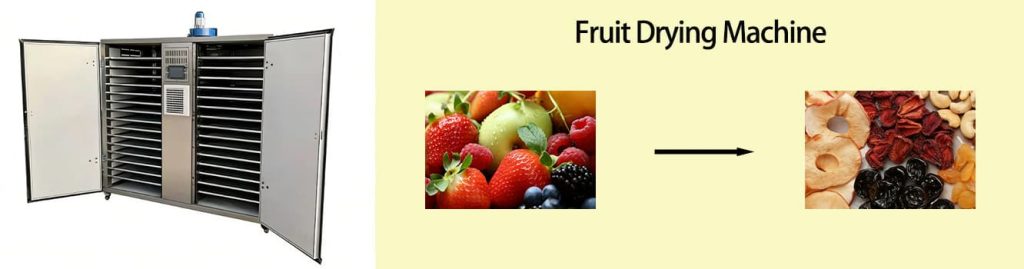

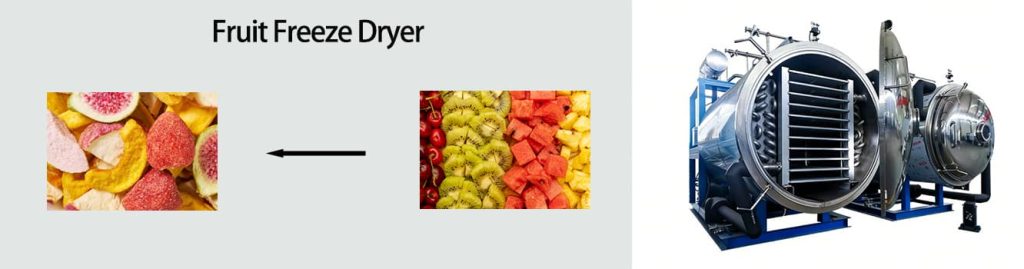

Fruit powder processing turns fresh or dried fruit into fine powder through two core steps: dehydration (or freeze-drying) and grinding. Moisture is removed via hot air drying, or freeze-drying, with freeze-drying best preserving nutrients, color, and aroma. Once moisture drops below 8%, the dried fruit is ground into uniform powder using a fruit powder grinding machine.

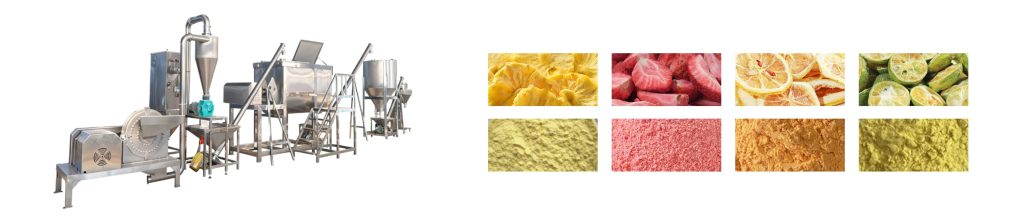

A complete fruit powder production line includes feeding, grinding, dust collection, mixing, storage, and packaging, working together for efficient, stable, large-scale production.

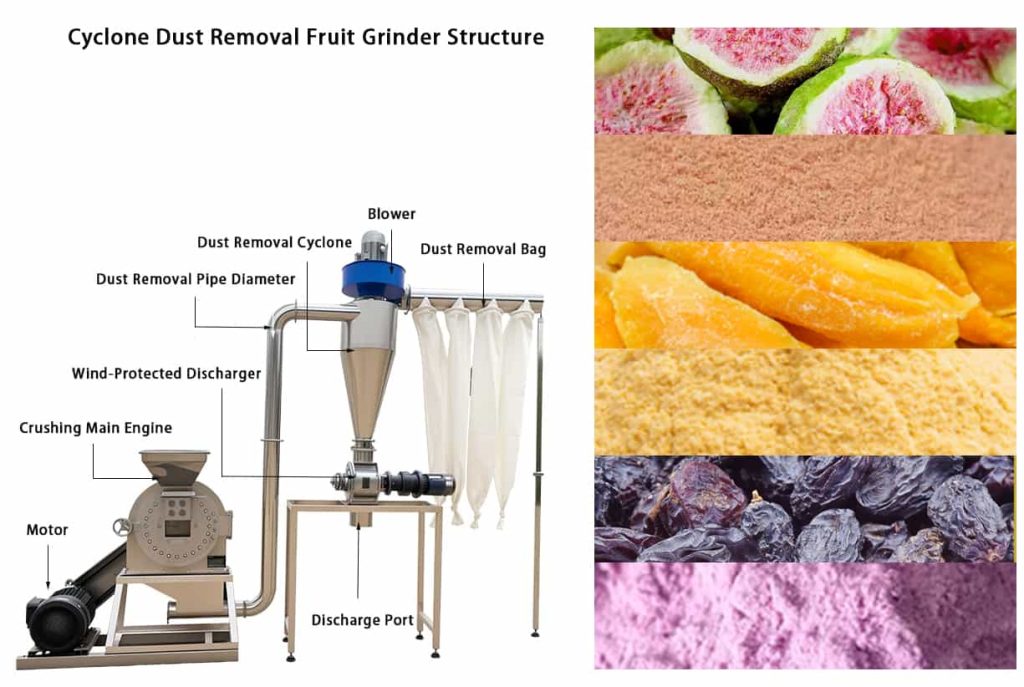

The fruit powder grinding machine uses a tooth-claw grinding principle to turn dried or freeze-dried fruit into fine powder. It can be integrated with supporting systems such as feeding, dust collection, mixing, storage, and packaging.
Material: 304 stainless steel (food grade), upgradeable to 316.
Working principle: Rotating and stationary grinding discs create shear, compression, and grinding forces, working with a screen to complete the process.
Fineness adjustment: Controlled by changing screens with different mesh sizes.
Key features: Fine uniform powder, low-temperature grinding, wide applications (health products, baby food, functional foods).
The fruit powder grinding machine can operate independently or be combined with supporting equipment for continuous, large-scale production.

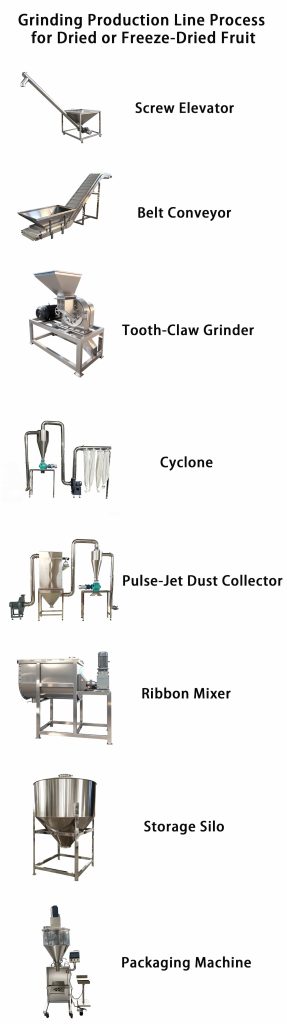

| Stage | Equipment | Function |
|---|---|---|
| Feeding | Screw elevator / belt conveyor | Smooth material transfer |
| Grinding | Fruit powder grinding machine | Grinds into uniform fine powder |
| Dust collection | Cyclone / pulse-jet dust collector | Collects dust, clean environment |
| Mixing | Mixer | Evenly blends powder |
| Storage | Storage silo / hopper | Temporary storage |
| Packaging | Packaging machine | Quantifies and packages |
| Material Type | Examples | Processing Requirements |
|---|---|---|
| Dried fruit | Dates, longan, raisins | Moisture ≤ 8%, grind directly |
| Frozen fruit | Strawberries, blueberries, mango | Pre-dry/freeze-dry to moisture ≤ 8% |
| Fresh soft fruit | Strawberries, bananas, peaches | Slice first, then dry/freeze-dry |
Reason: Fresh and frozen fruit have high moisture and soft texture. Direct grinding causes sticking and clumping, making pretreatment necessary.
No. The fruit powder grinding machine uses low-temperature grinding technology to preserve original quality.
| Advantage | Description |
|---|---|
| Nutrient retention | Prevents heat damage to sensitive nutrients |
| Color protection | Prevents oxidation, retains color |
| Flavor lock | Closed system reduces aroma loss |
| No cross-contamination | Food-grade stainless steel ensures purity |
Yes. Fruit powder grinding machine designed primarily for commercial use.
| Scenario | Application |
|---|---|
| Food processing plants | Batch production of fruit powder & solid drinks |
| Health product companies | Fine processing of health fruit powders |
| Large-scale farms | Value-added processing of homegrown fruits |
| Small processing facilities | Moderate-investment fruit powder production |
The fruit powder grinding machine operates continuously with stable performance, meeting commercial production demands.

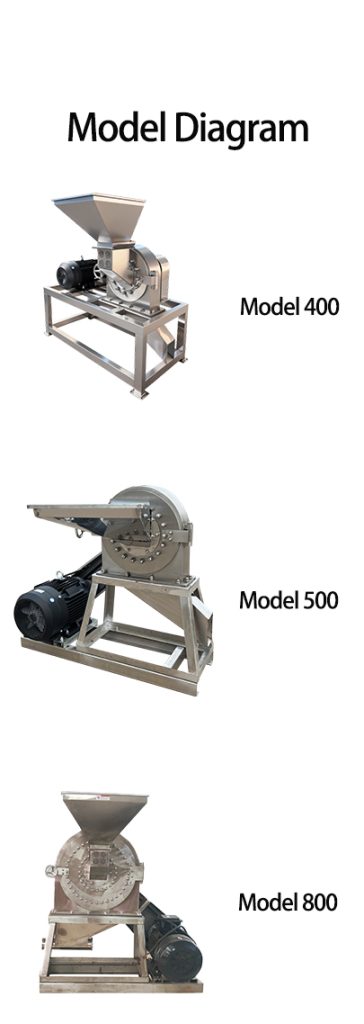

| Model | Voltage (V) | Capacity (kg/h) | Dimensions (mm) | Power (kw) | Weight (kg) | Recommended application |
|---|---|---|---|---|---|---|
| 300 | 380 | 60–150 | 910×830×1100 | 4 | 147 | Small workshops, startups |
| 400 | 380 | 200–400 | 1180×840×1260 | 7.5 | 197 | Small to medium food plants |
| 500 | 380 | 300–500 | 1260×920×1300 | 11 | 315 | Small to medium food plants |
| 600 | 380 | 400–600 | 1350×930×1350 | 15 | 408 | Medium-scale production |
| 800 | 380 | 500–1000 | 1620×1130×1660 | 22 | 460 | Large food factories |
| 1000 | 380 | 800–1200 | 1870×1170×1800 | 30 | 550 | Large-scale production lines |
Actual capacity varies by material and fineness. Abovevalues are reference for 80–100 mesh.
Confirm screen mesh is correct and properly installed. Check if the grinding disc gap is too large. Ensure uniform feeding.
Turn off power and wait for complete stop. Remove parts and rinse with water. Wipe body with damp cloth. Do not rinse motor. Dry parts before reassembly.
The fruit powder grinding machine, including motor and grinding discs, is covered by a 1-year warranty. Non-artificial failures are eligible for free repair and parts replacement.
Production lines can be customized based on output, space, and material. Complete lines from feeding to packaging are available. Contact us for more information.
Pcreate Machinery specializes in food powder processing equipment, with the fruit powder grinding machine as one of its key products. The company offers both stand-alone units and complete production lines from feeding to packaging, covering fruit dehydrators, screw elevators, belt conveyors, cyclone and pulse-jet dust collectors, mixers, storage silos, hoppers, and packaging machines.
The equipment features low-temperature grinding, adjustable fineness, food-grade stainless steel, and full-line integration capabilities.
After-sales services include installation, training, maintenance, troubleshooting, and parts supply.
For selection assistance or production line planning, contact us.
