For herbal, grain and dietary supplement powder processors worldwide, choosing the wrong nutrition powder machine is more than a bad purchase—it means production halts, raw material waste, or a mismatch between the equipment’s voltage and your local workshop.

Far too many buyers focus excessively on price while ignoring core specs like raw material adaptability and industrial-grade construction, only to end up needing costly replacements for the powder machine within months.

Pcreate Machinery’s nutrition powder machine buying guide cuts through the noise, offering practical, step-by-step advice to precisely match industrial-grade equipment to your production capacity, raw material type and target market—no guesswork, no avoidable pitfalls.

Table of Contents

1. Which type of nutrition powder machine is best for herbal raw materials (moringa/ganoderma)?
2. What nutrition powder machine is suitable for grain/plant extract/fruit vegetable raw materials?
3. How to choose a nutrition powder machine for small/large scale production (50kg/h/300kg/h/800kg/h)?
4. Summary and Recommendations
5. FAQs
6. About Pcreate Machinery

Which type of nutrition powder machine is best for herbal raw materials (moringa/ganoderma)?

When grinding herbal raw materials like moringa and ganoderma into nutritional powder, choosing the right nutrition powder machine requires close attention to these key factors:

• Material Compatibility: The nutrition powder machine must be clearly rated for fibrous and heat-sensitive materials—hallmarks of herbal ingredients.
• Temperature Control: Heat generated during grinding can destroy nutrients. Prioritize models that can be fitted with a water cooling system for low-temperature grinding.
• Fineness & Sanitation: Ensure the nutrition powder machine’s fineness range meets your needs (e.g., 80–120 mesh) and features a full stainless steel construction with smooth inner walls for easy cleaning, complying with food or pharmaceutical hygiene standards.
• Raw Material Preprocessing: Materials must be dry, non-oily, and low in stickiness. High moisture or oil content in raw materials will compromise grinding efficiency.

Core Conclusion for Herbal Nutrition Powder Machine Selection

A tooth disc mill with low-temperature cooling + food-grade stainless steel + adjustable tooth disc gap is the top choice. Pcreate Machinery’s water-cooled tooth disc mill is the perfect match, capable of grinding herbal raw materials directly into finished nutritional powder.

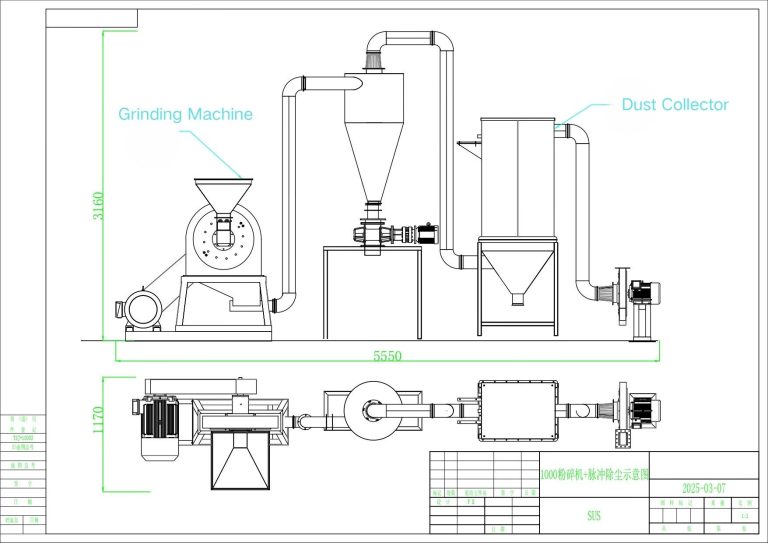

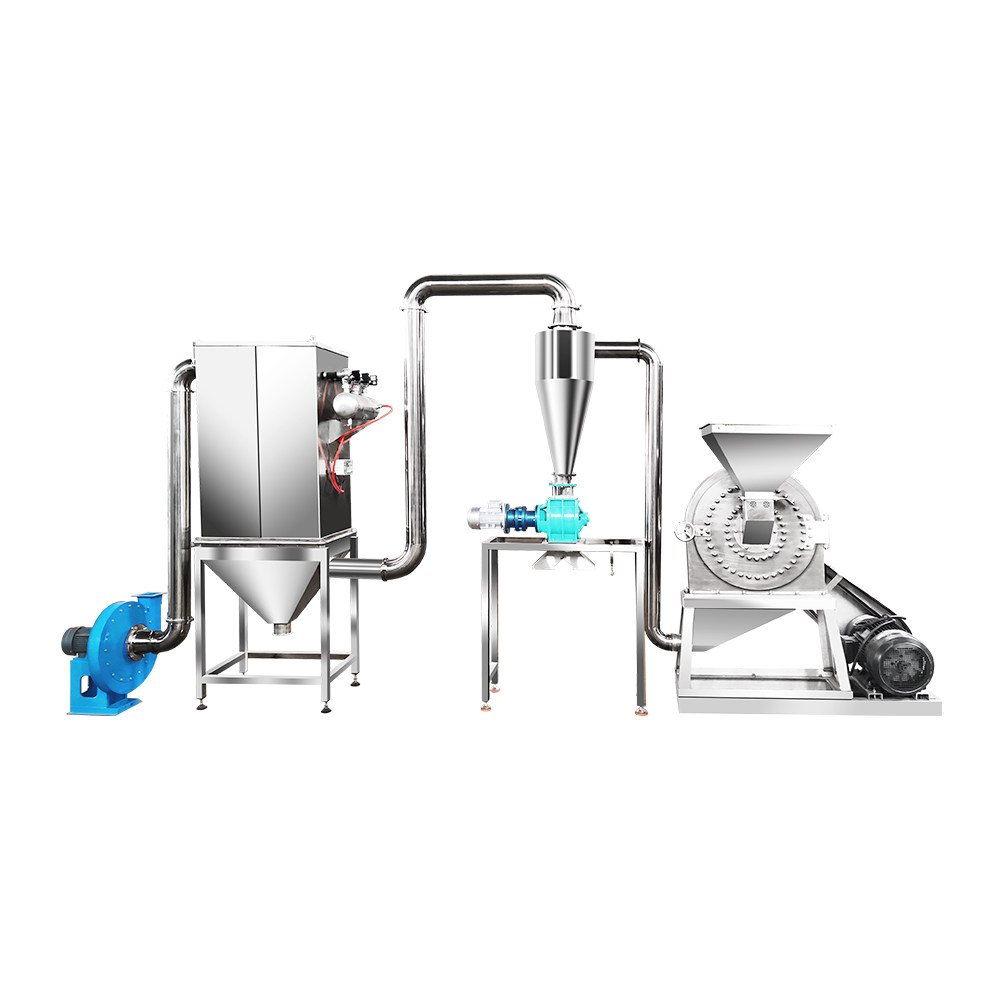

Recommended Nutrition Powder Machine: Pcreate 600 Series Water-Cooled Tooth Disc Mill

Tailored for herbal raw materials, this nutrition powder machine addresses all the key selection criteria above with outstanding performance:

1. Core Advantages

The nutrition powder machine combines precise low-temperature control (cavity temp < 50℃), ultra-fine grinding (80–120 mesh) and anti-stick design—perfectly suited for the tender, slightly oily nature of moringa. It prevents volatile oil loss from high temperatures and powder clumping caused by oil content.

2. Key Configurations

• 304/316 food-grade stainless steel tooth discs with anti-stick coating: Reduces oil adhesion from moringa and similar herbs.
• Dual-circuit water cooling system (synchronous cooling for cavity + main shaft): Enables more accurate temperature rise control.
• Adjustable tooth disc gap: Adapts to standard nutritional powder fineness from 10 to 120 mesh.
• Output capacity: 300–1200kg/h, ideal for commercial batch production.
• Herbal material optimization: Negative pressure discharge + cyclone separation combination—prevents fine powder loss from floating and avoids screen clogging due to clumping.

Core Specifications

Working Principle

Pcreate’s nutrition powder machine crushes materials via high-speed meshing of moving and stationary tooth discs, generating shearing and impact forces for efficient grinding.

Adaptive Performance Metrics

Key Technical Parameters

Pcreate Machinery – Nutrition Powder Machine (600 Series)

What nutrition powder machine is suitable for grain/plant extract/fruit vegetable raw materials?

When grinding grains, plant extracts, or dried fruits/vegetables into nutritional powder, picking the right nutrition powder machine boils down to matching its specs to your raw material’s unique quirks. Here’s the lowdown on what to look for—plus our top Pcreate recommendations for each category:

Key Considerations for Choosing the Right Nutrition Powder Machine：

1. Grains

Grains are tough and dense, so your nutrition powder machine needs serious power and staying power:

• High-power motor: Go for nutrition powder machines with a motor of 5.5kW or more—this ensures enough torque for smooth startup and consistent grinding.
• Wear-resistant tooth discs: The core grinding parts (moving/stationary discs) must be stainless steel—they’ll stand up to grain’s abrasiveness.
• Preprocessing tip: Make sure grains are fully dry. If they’re extra hard, a quick coarse crush first will lighten the load on the main machine.

2. Plant Extracts

Extracts (especially spray-dried powders) love absorbing moisture, clumping up, and getting ruined by heat—so focus on:

• Forced cooling system: Non-negotiable! Grab a water-cooled model to keep the grinding chamber’s temp in check and protect heat-sensitive nutrients.
• Anti-stick design: The chamber’s inner walls should be stainless steel and smooth (no nooks for powder to hide) for easy cleaning.
• Pro hack: Mix extracts with a dry carrier (like microcrystalline cellulose) before grinding to prevent clumping.

3. Dried Fruits & Vegetables

Even dried, these have tough fibers—you need sharp, fast cutting power:

• High spindle speed: Pick nutrition powder machines with a spindle speed over 4500 RPM for enough shearing force to chop through fibers.
• Moisture control: Non-negotiable! Raw materials must have moisture content below 8%—any higher, and you’ll clog the machine faster than you can say “smoothie powder.”

Recommended Pcreate Nutrition Powder Machines by Raw Material Type

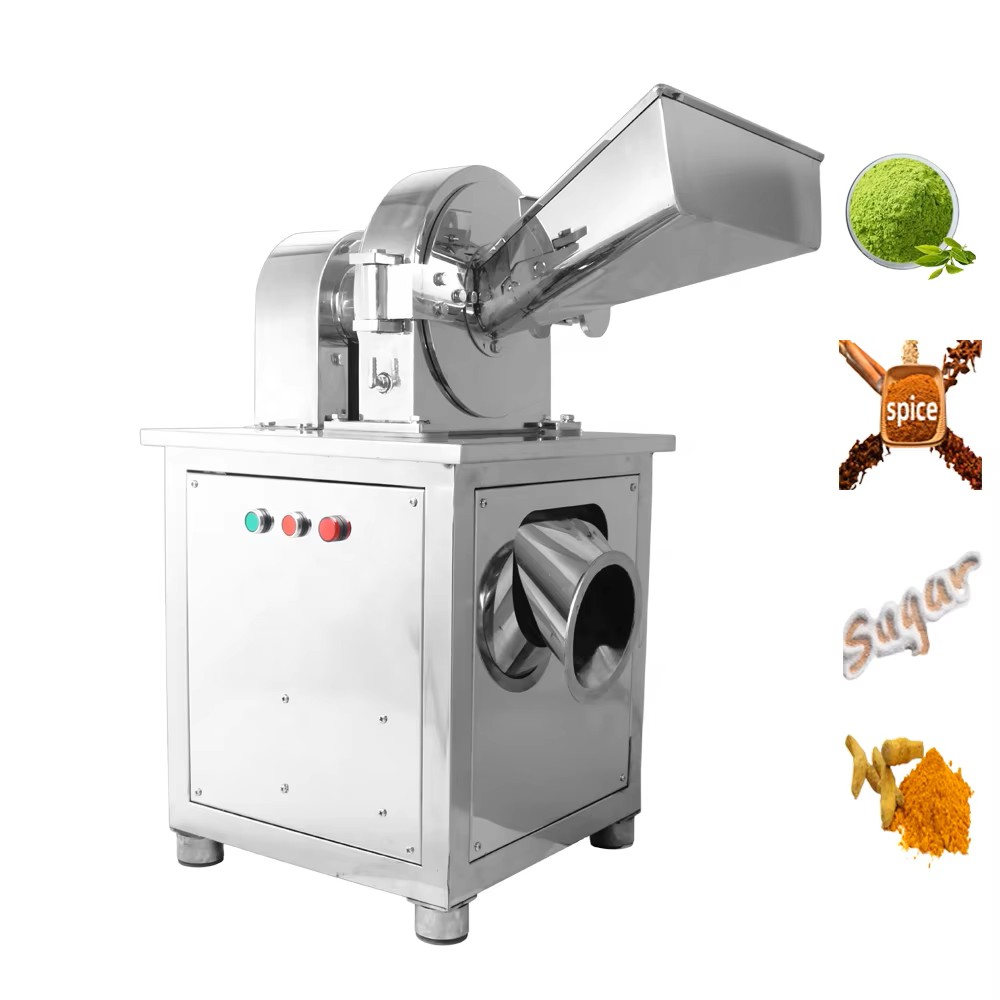

For Grains: Pcreate 400 Series Nutrition Powder Machine All-Enclosed Standalone Grinder

This nutrition powder machine is built for grain’s toughness—no frills, just reliable grinding:

Parameter	Specification
Model	400 Series All-Enclosed Standalone
Material	201/304/316 stainless steel
Overall Dimension	640×1010×1170mm
Screen Ring Diameter	360mm
Main Shaft Speed	4500r/min
Output Capacity	100–500kg/h (varies by raw material and grinding fineness)
Net Weight	Approx. 159kg
Voltage	380V
Motor Power	7.5kW
Grinding Fineness	10–120 mesh

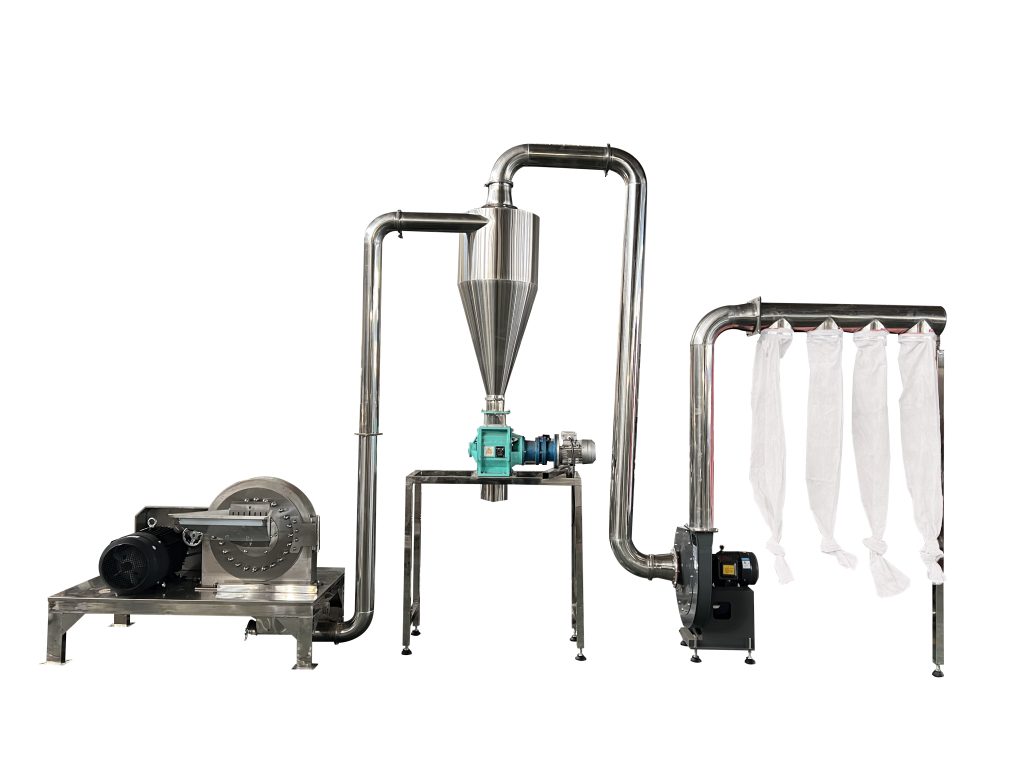

For Plant Extracts: Pcreate 400 Series Nutrition Powder Machine with Dust Removal & Water Cooling

Ticks all the boxes for moisture-prone, heat-sensitive extracts:

Parameter	Specification
Model	400 Series with Dust Removal Device
Material	201/304/316 stainless steel
Overall Dimension	3450×1300×2850mm
Screen Ring Diameter	370mm
Main Shaft Speed	4500r/min
Output Capacity	100–500kg/h (varies by raw material and grinding fineness)
Net Weight	Approx. 176kg
Voltage	380V
Motor Power	7.5kW
Grinding Fineness	10–120 mesh
Auxiliary Functions	Dust removal + water cooling
Temperature Control Capability	≤60℃
Cleaning Design	Quick-release structure (fully detachable for cleaning)

For Dried Fruits & Vegetables: Pcreate 300/400 Series High-Speed Nutrition Powder Machines

Fast, sharp, and sized for different production scales—perfect for tough dried produce:

Parameter	300 Series	400 Series
Model	300 Series	400 Series
Material	201/304/316 stainless steel	201/304/316 stainless steel
Overall Dimension	910×830×1100mm	1180×840×1260mm
Main Shaft Speed	5700r/min	4500r/min
Output Capacity	60–150kg/h	200–400kg/h
Net Weight	147kg	197kg
Voltage	220V/380V	220V/380V
Motor Power	4kW	7.5kW
Grinding Fineness	10–120 mesh	10–120 mesh

How to choose a nutrition powder machine for small/large scale production (50kg/h/300kg/h/800kg/h)?

Picking the right nutrition powder machine gear all comes down to matching your hourly output target—whether you’re running a small startup batch line or a full-scale commercial plant. Below are our tailored Pcreate nutrition powder machine recommendations for 50kg/h, 300kg/h, and 800kg/h+ production, plus a complete turnkey production line for large-scale manufacturing needs.

For ~50kg/h (Small-Scale Production)

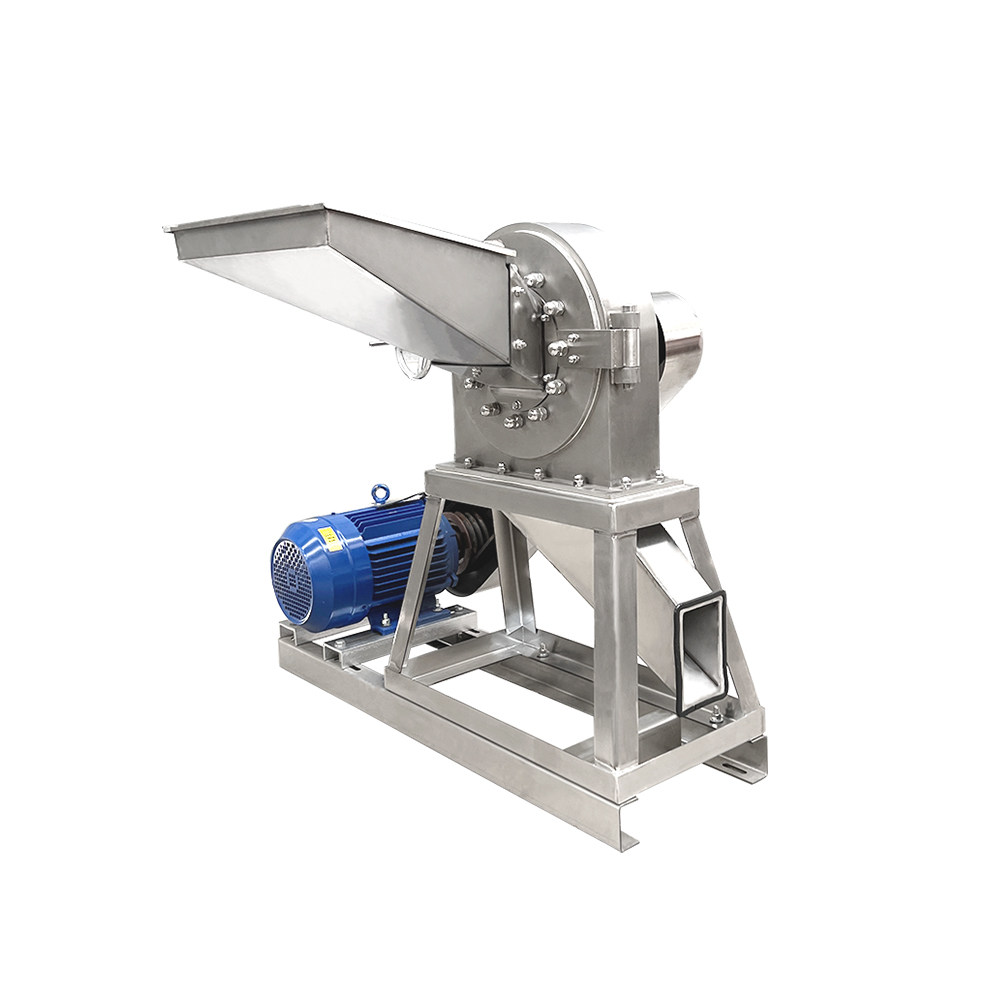

Recommended: Pcreate 300 Series Nutrition Powder Machine

Perfect for small-batch production, home-based workshops, or test runs—compact, energy-efficient, and easy to operate with flexible voltage options.

For ~300kg/h (Medium-Scale Production)

Recommended: Pcreate 400 Series Nutrition Powder Machine with Dust Removal & Water Cooling

Ideal for steady commercial batch production—adds dust control and low-temperature grinding for heat-sensitive materials, with a wider output range to meet growing demand.

For 800kg/h & Above (Large-Scale Production)

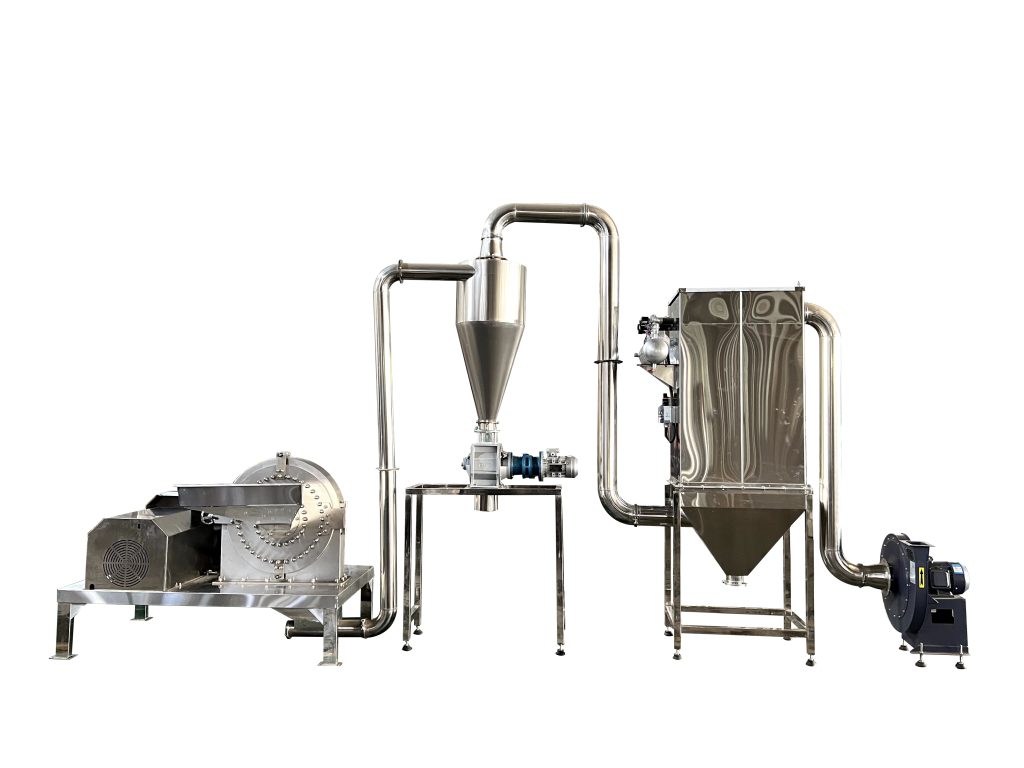

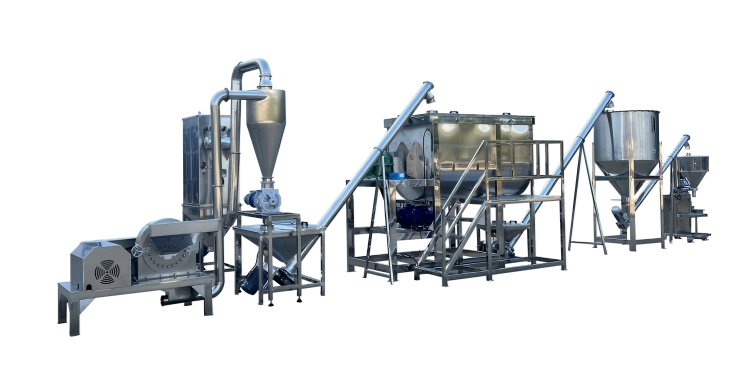

Recommended: Pcreate Complete Nutrition Powder Production Line

If you’re a large-scale processor needing 1 ton/h+ output, our fully automated production line is the ultimate solution. It integrates grinding, conveying, mixing, and packaging into a seamless closed-loop system—designed for continuous 24/7 operation, minimal labor, and consistent product quality. It works for herbs, grains, dried fruits/veggies, plant extracts, and even food seasonings like coffee beans, chili powder, and sugar powder.

Core Advantages of the Pcreate Nutrition Powder Production Line

• All-in-one integration: Combines grinding, elevating, mixing, and packaging—fully automated continuous production with no manual transfer.
• Closed-loop operation: Eliminates raw material contamination and nutrient loss, cuts down material waste, and keeps your workshop dust-free.
• Uniform product quality: Integrated mixing ensures consistent powder texture and ingredient distribution for every batch.
• Food-grade compliance: 304/316 stainless steel contact parts and standardized operation meet strict food processing hygiene standards.
• Multi-material versatility: Works for herbs, grains, plant extracts, and dried fruits/veggies—one line for all your production needs.

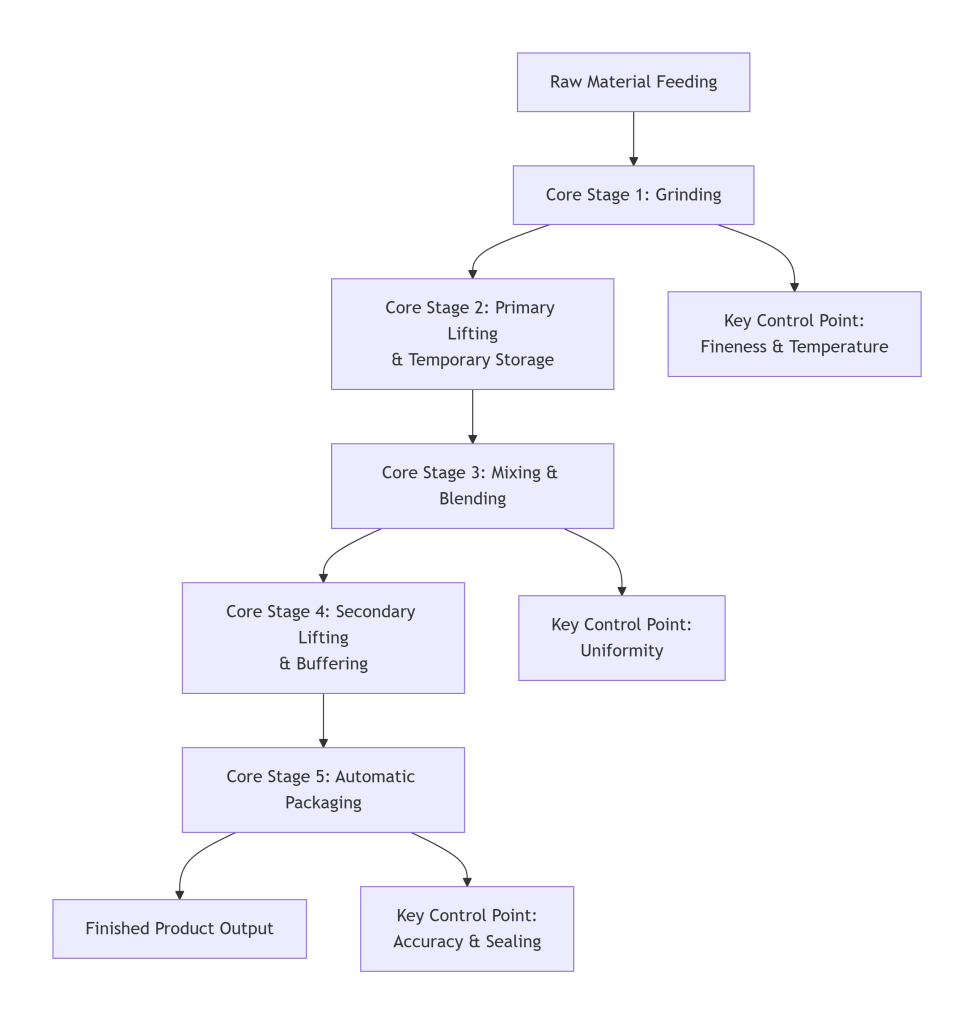

Core Process Stages of the Nutrition Powder Production Line

Each stage is engineered to sync with the next for smooth, high-efficiency production—here’s the breakdown of every key step, plus what to look for when selecting equipment:

1. Grinding

The make-or-break first step that defines your powder’s baseline quality.

• Core Equipment: Nutrition Powder Machine
• Key Function: Reduces preprocessed raw materials to your target fineness (10–120 mesh)
• Key Selection Tips:
  • Low-temperature grinding: Equip with a water cooling system to protect heat-sensitive nutrients.
  • Sanitary construction: 304/316 stainless steel contact parts for easy cleaning (food-grade standard).
  • Dust control: Integrate a pulse dust removal system for a clean, safe workshop environment.

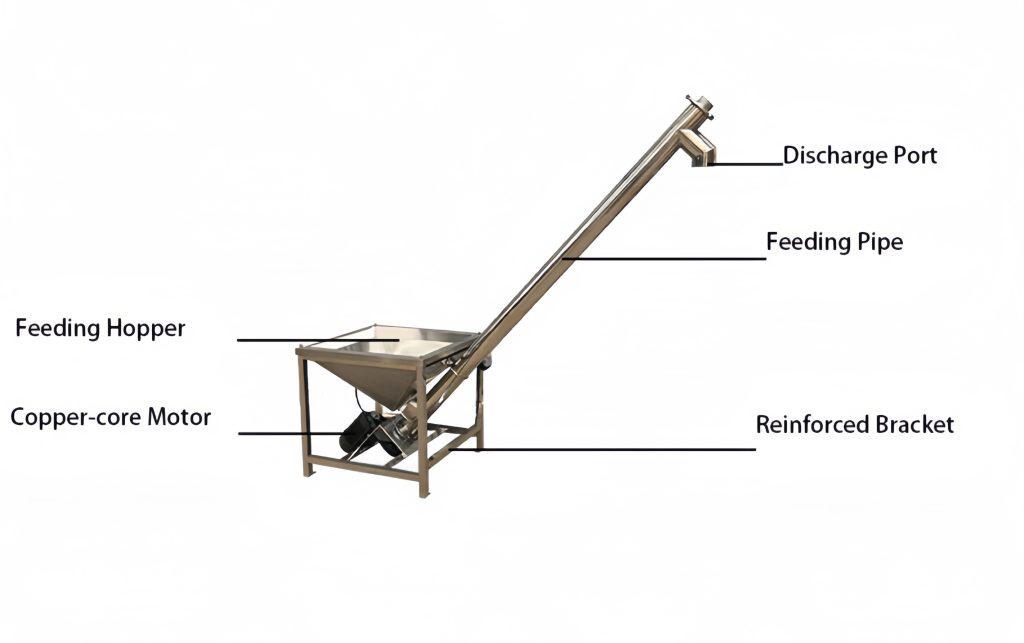

2. First Elevation

Conveys ground powder to the top of the mixer—no manual lifting, no mess.

• Core Equipment: Screw feeding elevator
• Key Function: Dust-free, closed-loop vertical conveying—eliminates contamination and dust leakage from manual handling.
• Key Selection Tips:
  • Capacity matching: Conveying capacity should be slightly higher than the grinder’s output to avoid bottlenecks.
  • Auto start/stop: Equip with a level sensor to sync with upstream/downstream equipment for automated operation.

3. Mixing & Blending

The heart of consistent powder quality—ensures every scoop has the same ingredient ratio.

• Core Equipment: 3D motion mixer / Double-screw conical mixer
• Key Function: Gently and thoroughly mixes main materials and additives for uniform nutrient distribution.
• Key Selection Tips:
  • High mixing uniformity: Aim for 99%+ homogeneity for consistent product quality.
  • Residue-free discharge: No leftover powder in the mixer to avoid cross-contamination between batches.
  • Liquid addition option: Equip with a liquid spraying system for adding trace liquids (e.g., essential oils).

4. Second Elevation

Feeds blended finished powder to the packaging machine’s hopper—acts as a buffer for steady packaging.

• Core Equipment: Screw feeding elevator (same as Stage 2)
• Key Function: Stabilizes powder supply to the packaging machine for non-stop operation.
• Key Selection Tips:
  • Hopper level sensors: Install high/low level gauges to auto-control feeding and sync with the packaging machine.

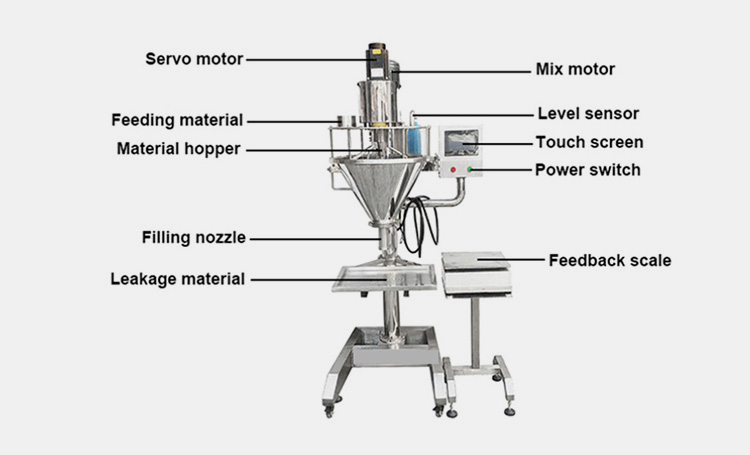

5. Automatic Packaging

The final step that impacts your product’s shelf life and visual appeal.

• Core Equipment: Full-automatic powder packaging machine
• Key Function: Precisely fills, forms, and seals powder into bags per your set weight.
• Key Selection Tips:
  • High-precision weighing: Use a precision combination scale for ±0.1–0.2g accuracy to cut down raw material waste.
  • Flexible bag styles: Choose between back seal, three-side seal, or stand-up pouch packaging (per your market needs).
  • Barrier film compatibility: Works with aluminum foil, metallized film, and PET/PE composite film for moisture-proof, airtight sealing.

Critical Selection Principles for the Nutrition Powder Production Line

When building a large-scale nutrition powder line, individual equipment specs aren’t enough—the whole system needs to work as one. These four principles are non-negotiable for a smooth, efficient, and compliant line:

1. Capacity matching: Calculate the maximum processing capacity (kg/h) for each stage—follow this order to avoid bottlenecks: Packaging ≥ Mixing ≥ Grinding.
2. Automated control: Use a central PLC control system for one-click start/stop, fault alarm, and production data logging—this is a must for modern manufacturing workshops.
3. Dust & safety: The entire line should be a closed-loop negative pressure system—all dust-generating points connect to a central dust removal system, with explosion-proof design for safety.
4. Compliance: Equipment material and design must meet food GMP/HACCP certification requirements—critical for selling in global markets.

Summary & Recommendations

The key to choosing a nutrition powder machine mill isn’t slashing upfront costs—it’s about an exact match for your actual production needs. Voltage compatibility, raw material suitability, and machine construction are the core factors that keep your production line running steadily and reliably.

Stick to the step-by-step approach in Pcreate Machinery’s nutrition powder machine mill buying guide, and you’ll find the perfect equipment that aligns with your production capacity. This means zero unplanned downtime, less raw material waste, and no costly machine replacements caused by ill-fitting gear—all for your herbal, grain, and dietary supplement powder production.

FAQs

1. Do I need to dry raw materials before grinding?

Absolutely. You must ensure raw materials are completely dry prior to grinding—this prevents clumping, mold growth, and machine clogs during the grinding process.

2. How can I get different fineness levels for nutrition powder?

You can adjust the powder fineness easily by swapping out the screen mesh with different pore sizes.

3. Can this Nutrition Powder Machine process other types of raw materials?

Definitely! This mill isn’t just designed for herbs, grains, dried fruits & vegetables, and plant extracts—it also works perfectly for grinding spices and various food ingredients, such as coffee beans, cocoa beans, dried banana slices, and white granulated sugar.
