Ultrafine Grinder

Tired of being unable to achieve fine fineness, uneven particle sizes, and unstable output with ordinary grinders when you need to grind materials into smooth and uniform ultrafine powder? The ultrafine grinder is specially designed for high-precision powder processing.

It can grind materials to 200~3000 mesh, with fine and uniform particle sizes. It is widely used in food, coffee, pharmaceutical, coating, chemical, mineral and other industries. Featuring simple operation, convenient maintenance and stable output, it is the core equipment for ultrafine grinding in modern industry.

Table of contents

What is an Ultrafine Grinder?

Wha is Another Name for an Ultrafine Grinder?

Which Industries Are Powder Ultrafine Grinders Suitable For?

What is the Productivity of an Ultrafine Grinder?

How to Choose a Suitable Ultrafine Grinder?

Does an Ultrafine Grinder Work Well for Grinding Coffee Beans?

Difference Between an Ultrafine Grinder and a Disc Pulverizer?

FAQs

About Pcreate Machinery

What is an Ultrafine Grinder?

An ultrafine grinder is a device used to grind solid materials into extremely fine powder (usually down to the micron or even nanometer scale). It is widely used in industrial scenarios with strict requirements for powder fineness and particle size distribution, such as minerals, chemicals, food, and pharmaceuticals.

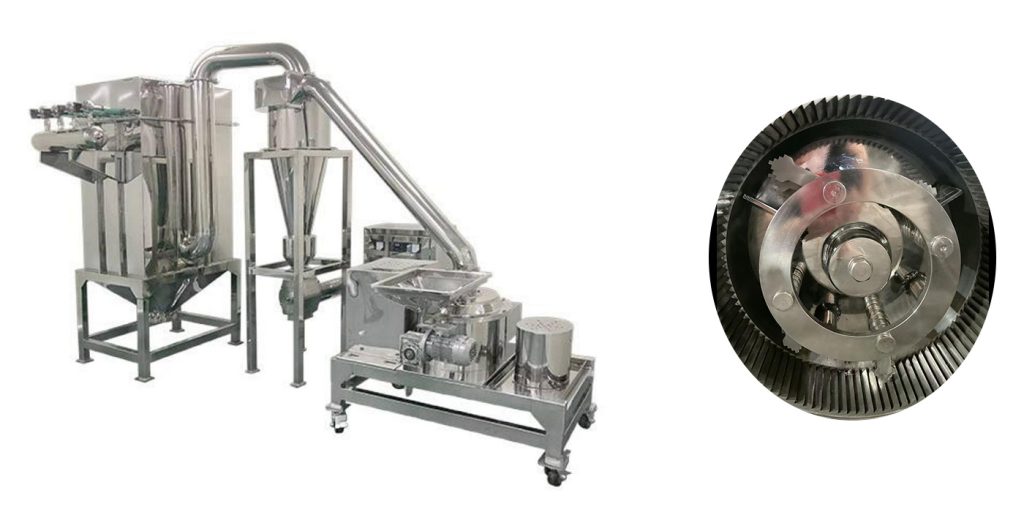

An ultrafine grinder generally consists of a main machine (grinding chamber/grinding roller/stirring system), feeding device, classifier (for fineness control), dust removal/collection system, fan, and electric control system. Some wet-type models are equipped with cooling and circulation pipelines.

Core Parameters and Features

• Fineness range: Conventional 325–3000 mesh (approximately 45–5 μm); jet mills/sand mills can reach over 10000 mesh with D50 < 1 μm.
• Applicable materials: Materials with Mohs hardness below 7 (most models) and low humidity (dry process), including brittle/tough materials.
• Advantages: Narrow particle size distribution, high degree of automation, excellent dust control; higher efficiency and lower energy consumption compared with traditional ball mills.
• Limitations: Sensitive to material humidity/hardness; equipment cost and maintenance requirements are higher than ordinary pulverizers.

What is Another Name for an Ultrafine Grinder?

In different industries or equipment types, ultrafine grinders often have alternative or similar names. Common ones include:

1. Ultrafine PulverizerThe most common alternative name.
   1. Emphasizes the “pulverization” process
   2. Widely used in pharmaceutical, food, and chemical industries
2. Superfine PulverizerVery common in industrial equipment for pharmaceuticals and food, referring to grinding materials to micron or even finer levels.
3. Micro-powder Mill / Ultrafine MillCommon in mining and building materials industries, e.g.:
   1. Calcium carbonate processing
   2. Limestone processing
4. Ultrafine Powder MillCommonly used in mining or powder milling equipment.

Which Industries Are Powder Ultrafine Grinders Suitable For?

Powder ultrafine grinders have a wide range of applications. Common industries include:

1. Food Industry
   1. Coffee beans, cocoa, plant protein powder
   2. White sugar, salt
   3. Coarse cereals powder, meal replacement powder, nutrition powder
2. Pharmaceuticals / Health Products
   1. Biopharmaceutical powder
   2. Health product raw materials, plant extracts
   3. Western medicine raw materials, pharmaceutical excipients
3. Chemical Industry
   1. Coatings, pigments, dyestuffs
   2. Calcium carbonate, talc powder, heavy calcium, light calcium
   3. Carbon black, titanium dioxide, resins, additives
4. New Energy / New Materials
   1. Lithium battery cathode and anode materials
   2. Alumina, zirconia
   3. Phosphor powder, magnetic materials
5. Feed / Agriculture
   1. Superfine grinding of feed raw materials
   2. Seaweed powder, shell powder

What is the Productivity of an Ultrafine Grinder?

The productivity (output) of an ultrafine grinder varies greatly, ranging from several hundred grams to dozens of tons per hour. It mainly depends on equipment type, model size, material characteristics, finished product fineness, and other factors.

• Laboratory / Small-scale: 0.5–5 kg/h (325–2500 mesh)
• Medium/Small-scale production: 5–200 kg/h (325–2500 mesh)
• Industrial medium-scale: 200–1000 kg/h (325–3250 mesh)

3 Key Factors Affecting Output

1. Finer fineness = lower output: For the same equipment, the output at 200 mesh (75 μm) is 3–5 times that at 1000 mesh (13 μm); output for cell-wall breaking grade (D50 < 5 μm) drops by more than 50%.
2. Material characteristics: Easy-to-grind materials (coffee beans, calcium carbonate) have high output; output of fibrous/thermosensitive/hard materials (traditional Chinese medicine, quartz) decreases by 30–60%.
3. Feeding and configuration: Feeding ≤ 40 mesh (0.45 mm) can increase output by 20%; equipped with classifier wheel and closed circulation will reduce output but improve particle uniformity.

How to Choose a Suitable Ultrafine Grinder?

1. Check the Material

• Food, pharmaceuticals, spices: Choose stainless steel, dust-free, water-cooled, food-grade superfine pulverizers
• Coatings, pigments, inks: Prioritize ultrafine grinders
• Calcium carbonate, talc, mineral powder: Choose dry-process ultrafine powder mills

2. Check Fineness Requirements

• 200–500 mesh: Ordinary superfine pulverizer
• 500–3000 mesh: Ultrafine mill / classifying superfine pulverizer
• Below 1 μm, high purity: Jet mill, sand millHigher fineness means lower output and higher price.

3. Check Output (Hourly Output)

• Small-batch, laboratory: Several kilograms to dozens of kilograms per hour
• Small and medium-sized factories: 100–1000 kilograms per hour
• Large-scale production lines: 1–5 tons per hour and above

4. Check Production Method

• Dry process: Direct powder output, suitable for most powders
• Wet process: Slurry grinding, suitable for coatings, pigments, battery materials

5. Check On-site Conditions

• Requirements for dust-free, explosion-proof, food-grade, GMP
• Voltage (220V / 380V), site size, noise requirements

Does an Ultrafine Grinder Work Well for Grinding Coffee Beans?

Yes, it works extremely well and is the professional choice for food factories producing coffee powder.

Advantages of Grinding Coffee Beans with an Ultrafine Grinder

1. Sufficient and uniform finenessCan grind to ultra-fine espresso powder or even finer, with uniform particles, no uneven coarse/fine grains, and more stable extraction.
2. High output, suitable for mass productionIndustrial models can grind dozens to hundreds of kilograms per hour, much more efficient than household grinders, ideal for factories and coffee processing plants.
3. Hygiene and safetyAll-stainless steel material, dust-proof, well-sealed, meets food production standards, no odor cross-contamination.
4. Adjustable finenessAdjustable from coarse powder (pour-over) to ultra-fine powder (espresso/instant raw materials), multi-purpose in one machine.

Suitable Coffee Powder Types

• Espresso coffee powder
• Instant coffee, freeze-dried coffee raw materials
• Coffee meal replacement powder, solid beverages
• Cold brew ultra-fine coffee powder

Difference Between an Ultrafine Grinder and a Disc Pulverizer?

1. Different Fineness

• Disc Pulverizer: Coarse to medium-fine powderMesh: 20–120 meshParticles: Large, visible to the naked eye
• Ultrafine Grinder: Ultra-fine to superfine powderMesh: 200–3000 meshParticles: Extremely fine, like flour or smoke

2. Different Uses

• Disc pulverizer: Corn, soybean meal, feed, grain, chili peppersGoal: Crush, coarse grinding
• Ultrafine grinder: Coffee powder, meal replacement powder, pigments, calcium carbonateGoal: Fine grinding, uniform grinding, high-end powder production

3. Different Output

• Disc pulverizer: High output, hundreds of kilograms to dozens of tons per hour
• Ultrafine grinder: Lower output, but higher fineness

4. Structure and Effect

• Disc pulverizer: Impact and shearing via disc discs, simple and high-speed
• Ultrafine grinder: Equipped with classifier wheel, air/water cooling, dust-free, finer and more uniform powder

FAQs

What Mesh Can an Ultrafine Grinder Pulverize?

• Conventional range: 200 mesh to 3000 mesh
• High-end models: 5000 mesh to 10000 mesh (sub-micron level)

Is an Ultrafine Grinder Easy to Maintain?

Daily maintenance of an ultrafine grinder is simple and convenient. It has few wearing parts and quick replacement. As long as cleaned on time and lubricated regularly, it is very reliable to use.

Is a Pigment Grinder Easy to Operate?

Ultrafine grinders are very easy to operate, basically one-button control. Equipped with overload protection and material shortage alarm, not easy to damage, automatic operation. Beginners can master it in half an hour, saving effort and worry.
