Every day, a large number of eggshells are disposed of as waste, but those in the know have already transformed them into high-profit calcium powder products. The problem is—if the wrong equipment is chosen, the powder won’t be fine enough, production will be unstable, power consumption will be high, and maintenance will be frequent, not only failing to generate profit but also increasing costs.
A truly professional eggshell powder manufacturing machine is more than just “crushing eggshells.” It determines your powder fineness, production stability, operating costs, and even your ability to enter high-value-added markets (food grade, feed grade, organic agriculture).
Instead of worrying about profits being eaten up by energy consumption, choose a stable, high-fineness, and continuously operating industrial-grade machine to truly turn waste eggshells into sustainable income.

Table of contents

What is the hourly production capacity of the Eggshell Powder Making Machine?
Do eggshells need to be pre-treated before grinding?
How much electricity does an Eggshell Powder Making Machine consume, and are its operating costs high?
How to Choose the Right Eggshell Powder Making Machine
Benefits of Using an Eggshell Powder Machine
Step by Step Operation Guide
Frequently Asked Questions (FAQ)

What is the hourly production capacity of the Eggshell Powder Making Machine?

The hourly capacity is not fixed. It varies depending on machine model, motor power, target fineness, and raw material condition.

Common Capacity Ranges

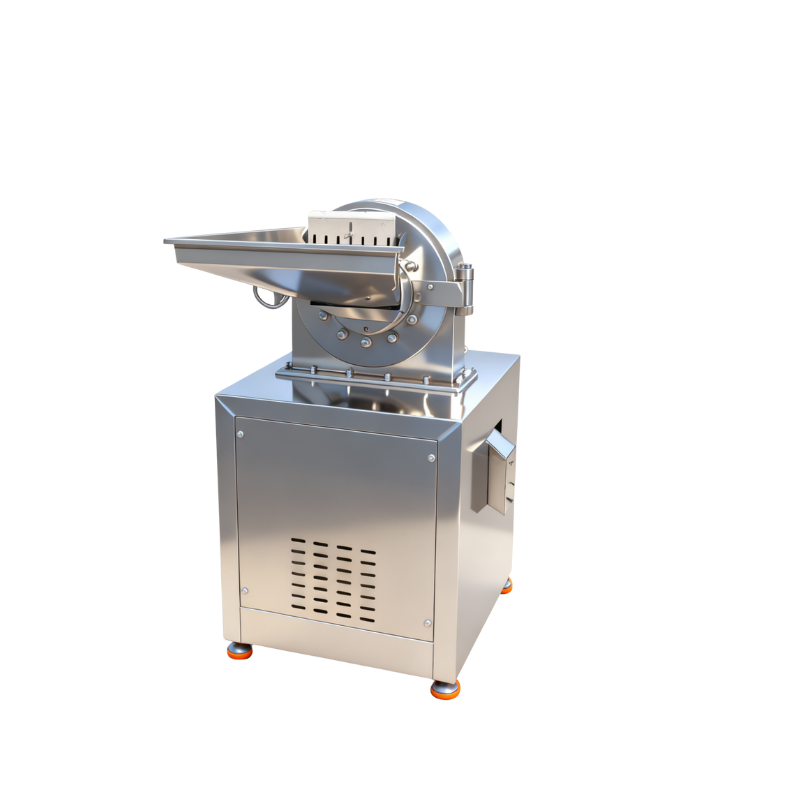

🔹 Small Eggshell Powder Machine

• Capacity: 20–50 kg/h
• Suitable for: Laboratories, pilot production, startups

Specification	Type 30
Material	Stainless steel
Crusher dimensions	980*510*1080mm
Ring diameter	290mm
spindle speed	5800r/min
Inlet size	100*100mm
Discharge port size	120*100mm
Feed inlet height from the ground	1080mm
Discharge port height from the ground	390mm
Yield	20-150kg/h
Weight	150kg
Equipment voltage	380v/220v
Power	4kw
Motor model	YE3-112M-2
Motor Brands	Zhengzhou Five Star
Rotational Speed	2890r/min

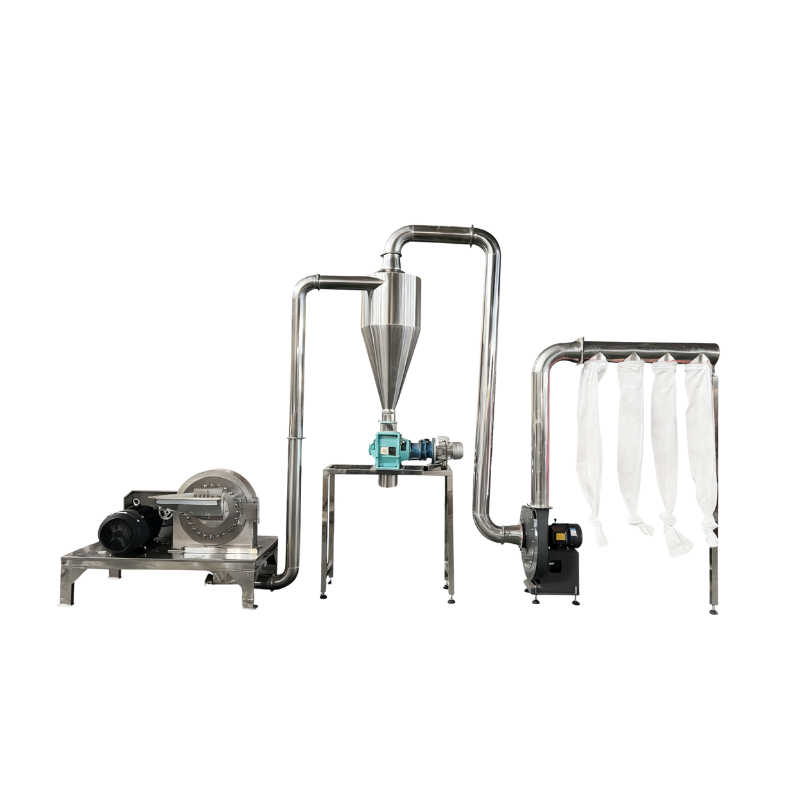

🔹 Medium Eggshell Grinding Machine

• Capacity: 100–300 kg/h
• Suitable for: Small and medium-sized factories, stable batch production

Specification	Type 60
External dimensions	5310*1120*3500mm
Ring diameter	510mm
Inlet size	145*150mm
Shakelon dust collector pipe diameter	500mm
Feed inlet height from the ground	980mm
Discharge port height from the ground	1000mm
Yield	200-500kg/h
Equipment weight	450kg
Voltage	380v
Crusher power	15kw
Rotational speed	3930r/min
Fan power	3kw
Fan Model	YN5-47
Windproof unloader power	0.75kw
Windproof unloader model	XLD2-23-1.1

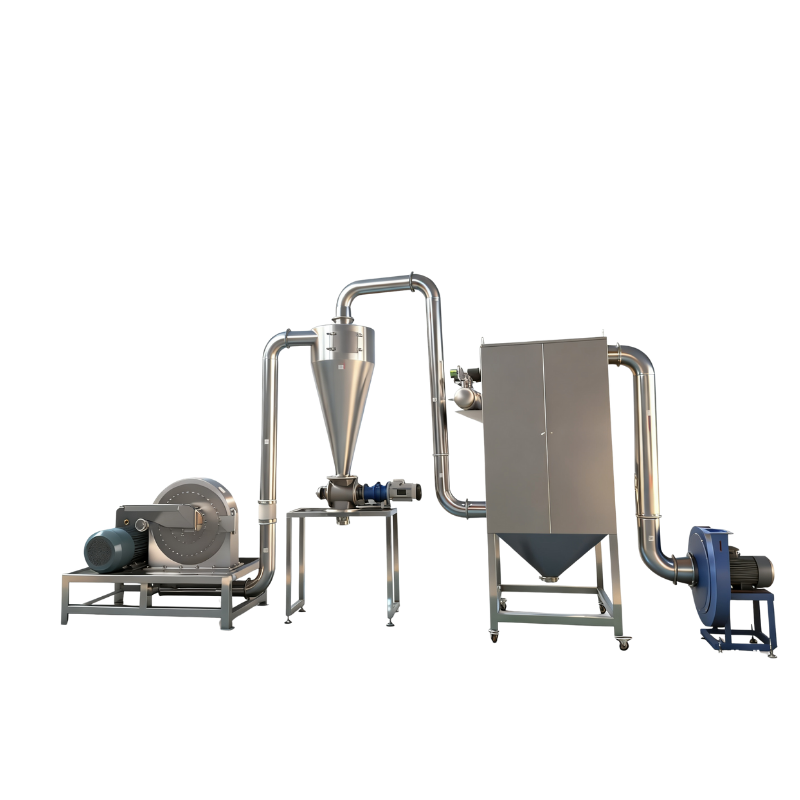

🔹 Large Eggshell Powder Production Line

• Capacity: 500 kg/h and above
• Suitable for: Large-scale continuous production, export-oriented enterprises

Specification	Type 80
External dimensions	5200*1200*3500mm
Ring diameter	650mm
Inlet size	130*150mm
Yield	500kg-2000kg/h
weight	650kg
Crusher motor power	22kw
Rotational Speed	2950r/min
Windproof unloader power	0.75kw
Windproof unloader model	YE2-90L-4
Pulse dust collector model	TD-12Z
Dust filter element	12
Pulse interval	[1-6000]*10 seconds
Solenoid valve	4
Dust collector cabinet dimensions	1000*1000*2300mm
Fan power	3kw

Key Factors Affecting Actual Output

1️⃣ Target Fineness

• Higher fineness (e.g., 200 mesh and above) reduces capacity.
• Lower mesh size (60–100 mesh) allows higher output.

Fineness directly affects powder discharge speed.

2️⃣ Raw Material Moisture Content

Recommended moisture content: below 5%.

Excess moisture may:

• Reduce grinding efficiency
• Increase equipment load
• Cause screen blockage

3️⃣ Motor Power Configuration

Higher motor power generally means higher theoretical capacity, but also increased energy consumption.

Do eggshells need to be pre-treated before grinding?

To ensure stable operation of the eggshell powder manufacturing machine, improve grinding efficiency, and guarantee product quality, it is recommended to pre-treat the eggshells before grinding.

Proper pre-treatment not only improves powder fineness but also extends equipment lifespan.

Why do eggshells need pre-treatment?

Untreated eggshells typically have the following problems:

• Residual egg liquid and membrane
• High moisture content
• Potentially contain bacteria or impurities
• Large clumps affecting feed uniformity

If directly fed into the eggshell grinder, it may lead to:

❌ Decreased grinding efficiency

❌ Screen clogging

❌ Increased equipment load

❌ Unstable product quality

Standard pre-processing procedure for eggshell powder production:

1️⃣ Cleaning: Removes residual egg liquid and impurities from the eggshell surface to prevent odor and contamination.

Especially important for food-grade applications.

2️⃣ High-temperature sterilization (essential for food-grade applications)

If used in the food calcium powder or health product industry, high-temperature sterilization is mandatory to ensure compliance with food safety standards.

3️⃣ Drying Process (Key Step)
It is recommended to control the moisture content of the eggshells to below 5%.

Excessive moisture content will:

• Reduce grinding efficiency
• Increase the risk of material blockage

Affect the fineness of the powder output
After thorough drying, the grinding effect will be significantly more stable.

How much electricity does an Eggshell Powder Making Machine consume, and are its operating costs high?

1️⃣ Motor Power Range

• Small machine: 2.2 kW – 7.5 kW
• Medium machine: 11 kW – 22 kW
• Large industrial machine: 30 kW or higher

This refers to rated motor power at full load.

2️⃣ Electricity Consumption Estimate

At 100% load:

• 5 kW machine → ~5 kWh per hour
• 15 kW machine → ~15 kWh per hour
• 30 kW machine → ~30 kWh per hour

Example: A 15 kW machine running 8 hours/day consumes approximately 120 kWh daily.

3️⃣ Factors Affecting Power Consumption

• Production capacity (kg/h)
• Raw material dryness
• Operating time & load
• Grinding structure design
• Use of VFD (Variable Frequency Drive) for energy savings

Is Operating Cost High?

• Small-scale production → Low electricity cost
• Medium commercial use → Electricity is part of total cost (along with labor, raw materials, maintenance)
• Large industrial lines → Electricity becomes more significant but unit cost per ton remains controllable

Electricity alone is not extremely high (especially below tens of kilowatts), but long-term operation requires cost optimization.

How to Choose the Right Eggshell Powder Making Machine

With the expanding market for eggshell resource utilization, eggshell powder is widely used in food calcium supplements, feed additives, organic fertilizers, and industrial raw materials. Choosing a suitable eggshell powder manufacturing machine not only affects product quality but also directly impacts a company’s profitability. So, what factors should companies focus on when purchasing eggshell powder processing equipment?

Different application areas have significantly different requirements for eggshell powder fineness:

• Food-grade calcium powder: 200 mesh or finer
• Health product raw materials: 300 mesh or finer
• Feed additives: 80–150 mesh
• Agricultural fertilizers: 20–80 mesh

Before selecting an eggshell crusher, the final product application must be determined, as fineness directly determines the equipment model and structural configuration.

Matching equipment model according to production capacity requirements: Eggshell powder manufacturing machines are available in various specifications, from small experimental equipment to automated production lines, all of which can be customized.

Common Capacity Ranges:

• Small Equipment: 20–50 kg/h
• Medium Equipment: 100–300 kg/h
• Large Production Line: 500 kg/h and above When selecting a model, it is recommended to consider future expansion needs to avoid secondary investment due to insufficient equipment capacity.

Pay Attention to Equipment Material and Hygiene Standards

If used in the food or health product industry, the equipment must meet food safety standards.

Recommended Selection:

• 304 Stainless Steel (Food Grade Standard)
• 316 Stainless Steel (High Corrosion Environments or High-Standard Export Markets) High-quality materials not only ensure product safety but also extend the equipment’s lifespan.

Understand if the Crushing Structure is Suitable for Eggshell Materials

Eggshells are characterized by being “hard, light, and easily rebounding,” making ordinary crushing equipment often inefficient and prone to rapid wear.

A high-quality eggshell powder manufacturing machine should possess:

Good heat dissipation design
Professional structural design can improve crushing efficiency and reduce energy consumption and maintenance costs.

High-speed impact or turbine structure

Adjustable screen system

Stable transmission system

Benefits of Using an Eggshell Powder Machine

There are many types of eggshell powder makers available on the market. These machines vary in size and design, but their purpose is the same—to grind eggshells into a fine powder. When choosing an eggshell grinder, factors such as capacity, power supply, and ease of use should be considered.

Some eggshell grinders are manual, requiring manual cranking of the handle to grind the eggshells. These machines are usually smaller and more portable, suitable for home gardeners or those with limited space. On the other hand, there are electric eggshell grinders, powered by electricity, which are more efficient and less labor-intensive. In terms of functionality, some eggshell grinders are equipped with adjustable settings to control the fineness of the powder. This allows you to customize the texture of the eggshell powder to your specific needs. In addition, some machines are equipped with safety devices, such as lids or protective covers, to prevent accidents during the grinding process.

Step-by-Step Operation Guide

Using an eggshell powder maker is a simple and easy process that anyone can easily master. Here’s a step-by-step guide to help you get started quickly:

• Collect clean, dry eggshells: After cooking or baking eggs, thoroughly rinse the shells to remove any remaining yolk or egg white. Allow the shells to air dry completely before grinding.
• Prepare the grinder: If you are using a manual eggshell grinder, ensure the handle is securely attached and the machine is stable. If you are using an electric grinder, ensure it is connected to a power source and take necessary safety precautions.
• Place the eggshells into the machine: Carefully pour the dried eggshells into the designated compartment of the grinder. Be careful not to overload the machine, as this will affect its performance.
• Adjust the settings: If your eggshell grinder has adjustable settings, determine the desired powder fineness and make any necessary adjustments.
• Start grinding: Turn on the machine and let it run until the eggshells are completely ground into a fine powder. This may take anywhere from a few seconds to a few minutes, depending on the machine’s power and the amount of eggshells.
• Collect the powder: After grinding, carefully open the machine and collect the eggshell powder. Transfer the powder to an airtight container for storage, or use it immediately for your desired purpose.

Using an eggshell grinder is that simple! With just a few easy steps, you can transform eggshells into a versatile and valuable resource.

Frequently Asked Questions (FAQ)

How finely can an eggshell powder mill grind eggshells?

Generally, the adjustable fineness range is 40-500 mesh (some high-end models can grind even finer).

• 40-60 mesh: Suitable for organic fertilizer and feed additives
• 60-80 mesh: Suitable for calcium powder raw materials
• Above 100 mesh: Suitable for food-grade or health product applications
  Fineness can be achieved by changing the screen or adjusting equipment parameters.

1. What is the hourly output of an eggshell powder mill?

Output varies considerably depending on the model:

• Small machine: 100-300 kg/h
• Medium machine: 300-800 kg/h
• Large machine: 1 ton/hour and above
  Actual output is closely related to the dryness and fineness requirements of the raw materials.

1. Do eggshells need to be pre-treated?

Yes, basic pretreatment is recommended:

✔ Cleaning to remove impurities

✔ Removing egg membranes (to improve powder purity)

✔ Thorough drying (moisture content below 5% is ideal) Undried eggshells will affect grinding efficiency and increase energy consumption.

4. Is the machine prone to wear and tear? Are maintenance costs high?

Eggshells are mainly composed of calcium carbonate, which has high hardness but is a moderately abrasive material.

Common wear parts include:

• Blades / Hammers
• Grinding disc
• Screen High-quality alloy materials can effectively extend service life. Under normal production conditions, maintenance costs are controllable.

1. Can the eggshell powder mill operate continuously?

Industrial equipment supports long-term continuous operation.

Recommendations:

• Check equipment status every 8 hours
• Lubricate bearings regularly
• Keep the dust removal system unobstructed

Continuous and stable operation is a basic requirement for industrial production.

6. Will the machine generate dust pollution?

Eggshell powder is a lightweight powder, and dust will be generated during the production process.

Solutions:

✔ Matching pulse dust collector

✔ Sealed structure design

✔ Negative pressure collection system

This keeps the workshop clean and meets environmental standards.

7. Can the eggshell powder mill process other materials?

Most equipment is compatible with similar materials, such as:

• Shells
• Dried seaweed
• Mineral powder
• Some spices

However, different materials have different hardness and fiber structure, so testing in advance is recommended.

8. What equipment is included in a complete production line?

A complete eggshell powder production line typically includes:

1. Washing equipment
2. Drying equipment
3. Eggshell powder mill (core equipment)
4. Screening system
5. Dust removal equipment
6. Automatic packaging machine
   Customized configurations can be made according to different production capacities.
7. How to choose a suitable eggshell powder mill?

When selecting a machine, consider:

• Hourly processing capacity
• Target fineness
• Continuous production
• Budget range
• Food-grade standards required

It is recommended to match the model to actual production needs, rather than simply choosing the machine with the highest power.

Conclusion

An eggshell powder manufacturing machine is not merely a simple crushing device; it is a core piece of equipment for achieving efficient utilization of eggshell resources and enhancing product added value. The equipment’s stability, powder fineness control capability, energy consumption per unit output, and continuous operation performance directly determine production efficiency and long-term profit margins.

In the current market environment, customers are more concerned with whether the equipment can operate stably for a long time, whether the powder quality is uniform and meets standards, and whether the overall operating costs are controllable, rather than simply comparing prices. Choosing an eggshell powder manufacturing machine with optimized structure, wear-resistant materials, and support for continuous industrial production is the only way to truly reduce maintenance costs, improve production efficiency, and help enterprises enter higher value-added application areas.

Instead of pursuing low-priced equipment, it’s better to choose a high-efficiency, high-stability solution that transforms eggshells from waste into a resource that continuously generates revenue, achieving true cost reduction, efficiency improvement, and sustainable development.
