What is a stainless steel pulverizer with a pulse dust collector?

A pulverizer with pulse jet dust collector is a complete grinding and dust removal solution designed for food, chemical, pharmaceutical, feed, and mineral industries.
It integrates efficient size reduction and environmental-friendly dust collection, ensuring consistent product fineness and a clean working environment.

Table of Contents

• What is a stainless steel pulverizer with a pulse dust collector?
• Why choose stainless steel for the pulverizer?
• What configurations are commonly available?
• How does the integrated system work in practice?
• What are typical technical specifications?
• Where has this equipment been applied successfully?
• What should you consider before investing?
• Which industries and applications suit this system?
• What benefits does the combined pulverizer + pulse dust collector provide?
• How can users extend the machine’s service life?
• What is the practical summary?

A stainless steel pulverizer with a pulse dust collector is a production-scale grinding system that combines a hygienic grinding chamber and an on-board filtration unit. The pulverizer reduces bulk solids into fine powder; the pulse dust collector captures airborne fines and automatically cleans its filter media with short bursts (“pulses”) of compressed air. The result is controlled dust emission, stable output and easier compliance with food/pharma hygiene standards.

Why choose stainless steel for the pulverizer?

Stainless steel (commonly 304 or 316L) is chosen for several practical reasons:

• corrosion resistance and chemical inertness — important for food, spice, and pharmaceutical powders;
• smooth surfaces that are easy to clean and sanitize (reduces cross-contamination risk);
• durability under repetitive mechanical stress and abrasion when processing non-extreme abrasives;
• regulatory compatibility for GMP, HACCP and similar hygiene frameworks when food or pharma quality is required.

What configurations are commonly available?

Typical configurations fall into two groups:

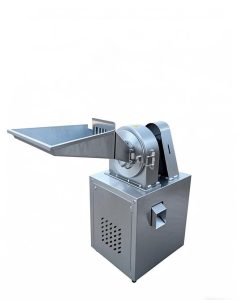

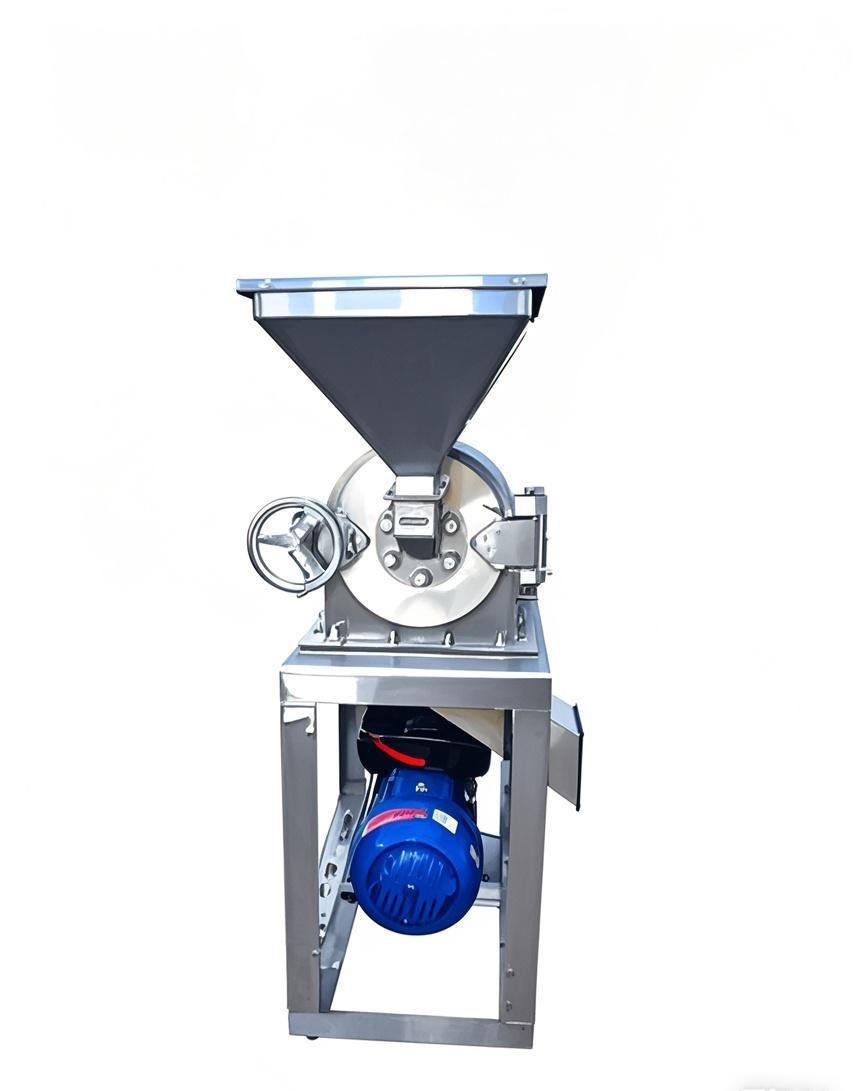

1. Standalone pulverizer (stainless steel body)

• Compact footprint, simpler to operate, suitable for small-batch or laboratory use.
• Requires a separate dust-management solution if dust control is required.

M-200

M-300

M-400

M-500

M-600

M-800

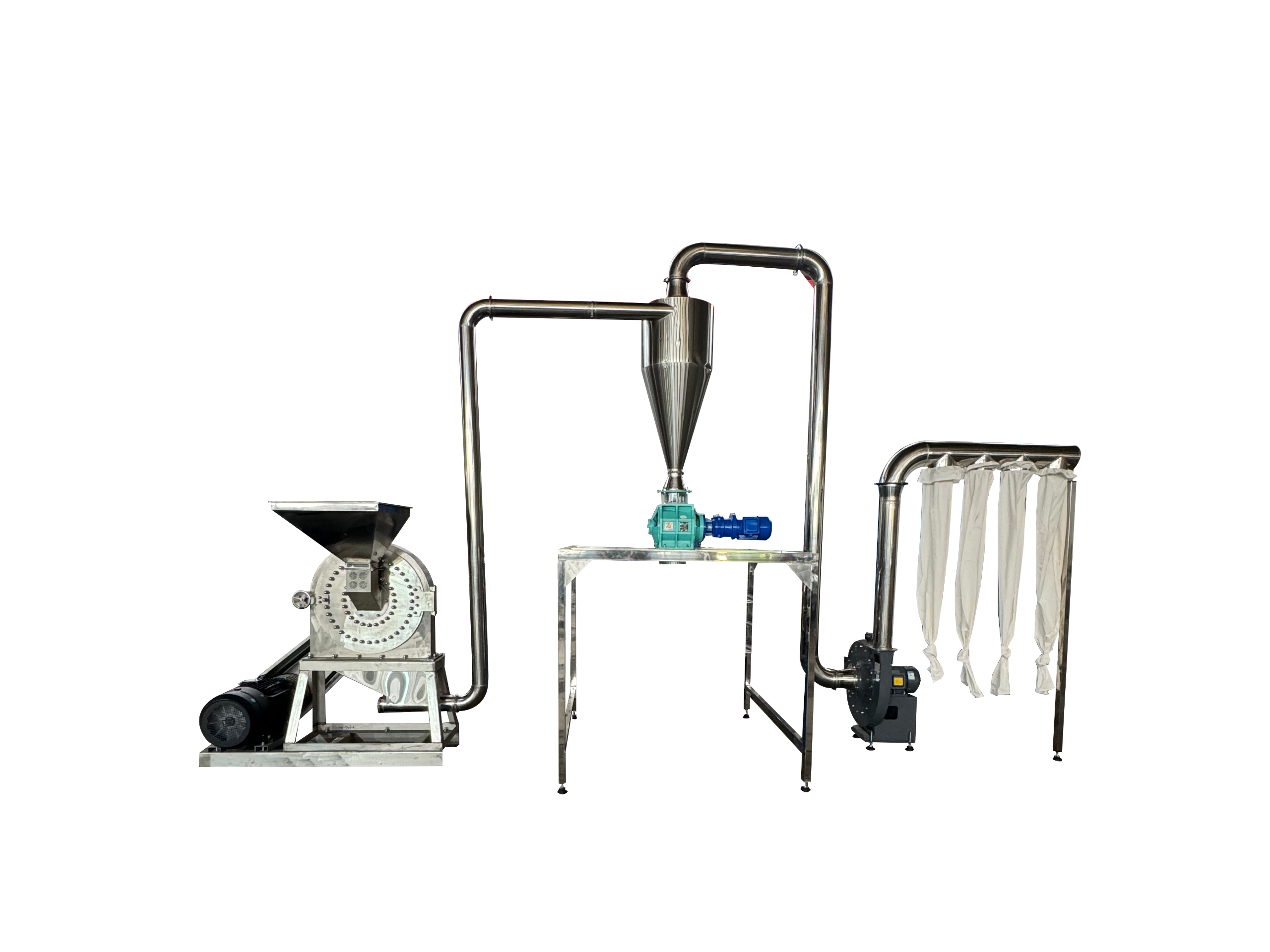

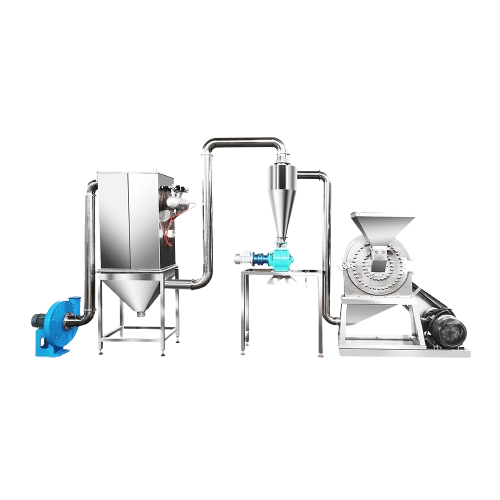

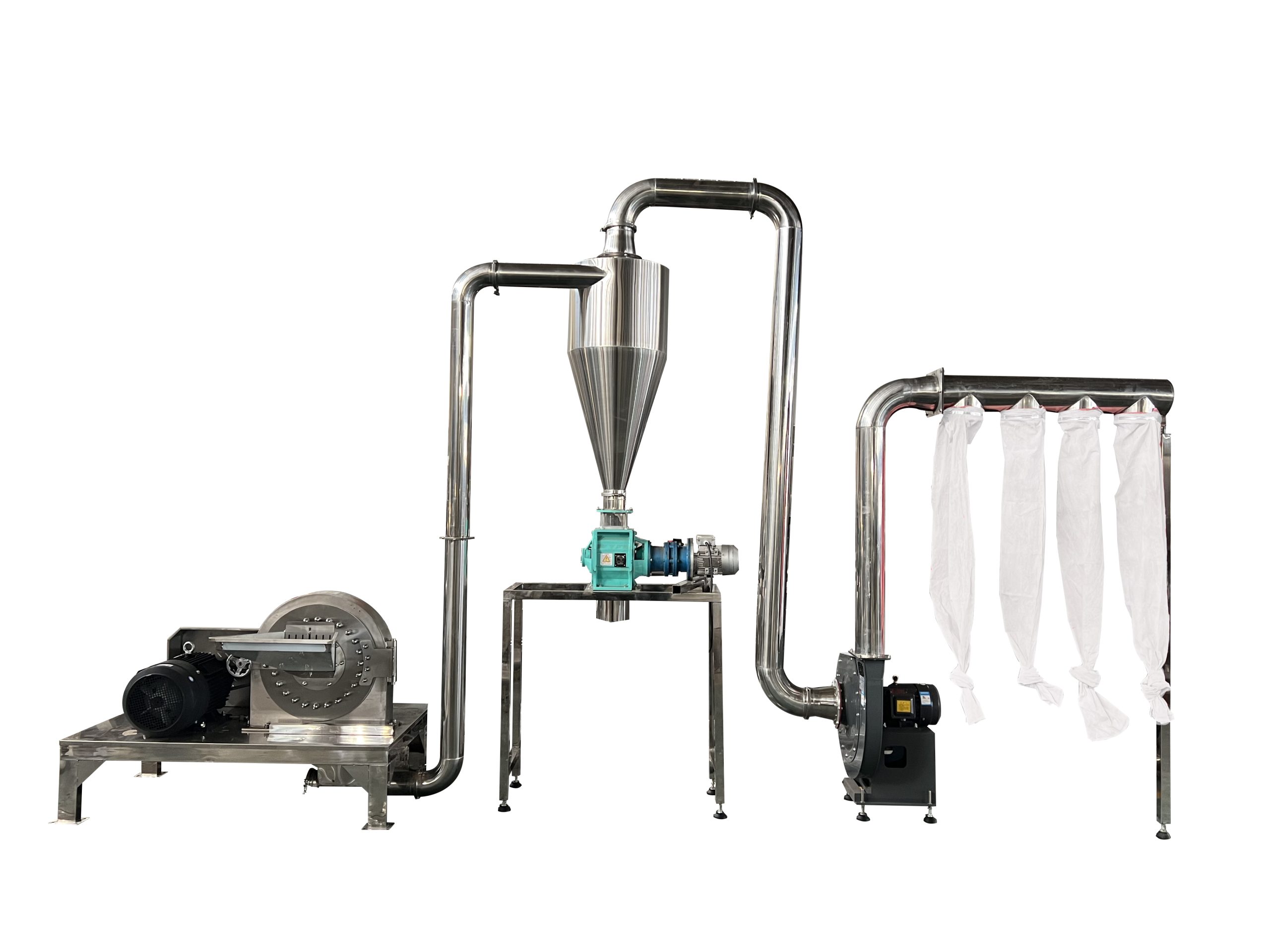

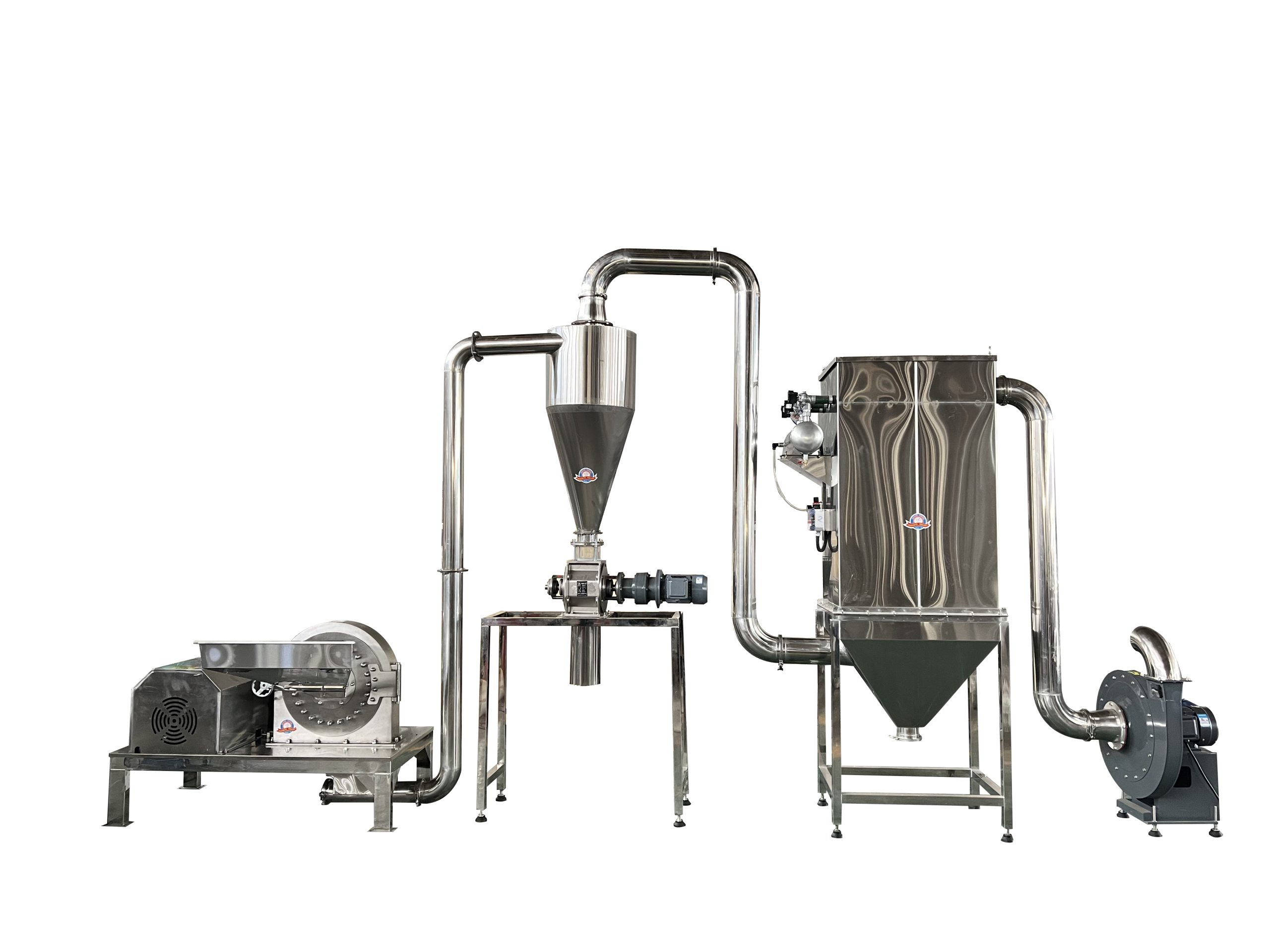

2. Integrated system: pulverizer + cyclone + pulse dust collector

• Often supplied as a single skid for easier installation and cleaner workshop operation.
• Designed for continuous production: pulverizer → cyclone (coarse separation) → pulse jet baghouse (fine filtration).

Standalone Dust Collector

Two-Stage Grinder with Dust Collector

Box Dust Collector

Cyclone Dust Collector

Optional add-ons: feed hoppers with controlled feeders, vibratory sieves after grinding, sample ports, and full stainless ducting for food/pharma applications.

How does the integrated system work in practice?

1. Feeding — material is fed into the pulverizing chamber via gravity or controlled feeder to ensure even throughput.
2. Pulverization — high-speed rotors (blades/hammers/pins depending on design) impact and shear the material into smaller particles. Rotor speed and clearance control fineness.
3. Primary separation — a cyclone or centrifugal separator removes coarse rejects and reduces the dust load on the filters.
4. Filtration — the remaining fine dust-laden air passes through the pulse baghouse. Periodic compressed-air pulses dislodge cake build-up on filter bags; dust drops into the hopper below.
5. Exhaust & recirculation — cleaned air is exhausted, and collected product is discharged for sieving or packaging. The closed loop reduces product loss and contamination.

What are typical technical specifications?

• Capacity: 30–300 kg/h (scalable modules available)
• Final particle size: 20–120 mesh (adjustable)
• Material: Stainless steel 304 / optional 316L for contact parts
• Drive: IE2/IE3 motor, frequency inverter optional for speed control
• Dust collector type: Pulse-jet baghouse with PLC-controlled cleaning cycle
• Power consumption: depends on capacity and rotor design (specify after feed test)
• Options: GMP polishing, CIP-friendly design, ATEX classification for combustible dust zones (if required)

Technical Parameters

Where has this equipment been applied successfully?

• Spice milling (Southeast Asia) — chili, turmeric, coriander: systems sized 150–250 kg/h with full stainless ducting for food safety.
• Pharmaceutical herbal extracts (Central Asia) — 50–120 kg/h GMP-compliant lines for capsule and tablet feedstock.
• Food additives & grain powder (Africa) — 200–300 kg/h lines paired with sieving and packaging modules to reduce manual handling and dust exposure.

What should you consider before investing?

• Raw material characteristics — moisture, oil content, hardness and abrasiveness all change mill selection and maintenance schedule.
• Target particle size and distribution — tight particle specs may require multi-stage grinding + classification.
• Throughput requirement — peak vs average throughput affects feeder and motor sizing.
• Hygiene and certification needs — food/pharma will need polished finishes, sanitary fittings and traceability.
• Dust hazard — combustible dust requires special measures (inerting, grounding, ATEX compliance).
• Total cost of ownership — include spare parts, filter bags, energy and expected wear items in the calculation.

Which industries and applications suit this system?

• Food & spices (ground spices, sugar, starch)
• Pharmaceuticals (herbal powders, excipients)
• Chemicals (pigments, catalysts, coatings)
• Agriculture (feed additives, fertilizer fines)
• Any application needing fine, clean powder with low cross-contamination risk

What benefits does the combined pulverizer + pulse dust collector provide?

• Cleaner workshop environment — significant reduction of airborne dust.
• Higher yield — less product lost to exhaust and better capture of fines.
• Improved product quality — more uniform particle size and less contamination.
• Lower operator exposure — safer working conditions and easier compliance.
• Simplified maintenance — pulse cleaning reduces manual filter cleaning and downtime.

How can users extend the machine’s service life?

• Operate within the specified feed size, moisture and load limits.
• Establish a regular inspection regime for wear parts (rotors, liners, screens).
• Replace filter media on a life-cycle schedule and check pulse valves periodically.
• Keep bearings and drives correctly lubricated; follow manufacturer torque and preload specs.
• Maintain a controlled feeding method — avoid tramp metal and large lumps.
• Train operators on start/stop procedures, emergency stops and safe cleaning methods.

What is the practical summary?

A stainless steel pulverizer paired with a pulse dust collector is a practical solution when you need clean, repeatable fine powders under hygiene-sensitive production conditions. The integrated approach reduces dust, improves yields, and simplifies compliance, but the right selection depends on feedstock, target fineness, throughput and safety requirements. Specify materials, test with your actual feed, and plan for spare parts and filter maintenance when evaluating options.
