Stainless Steel Rotary Drum Mixer

What Is a Stainless Steel Rotary Drum Mixer?

A drum mixer is a mechanical device that mixes materials by rotating a drum to tumble and blend them. It is mainly used in industries such as chemical engineering, pharmaceuticals, and food processing. Its core principle relies on spiral blades inside the drum or gravity: as the drum rotates, materials repeatedly rise and slide within the drum, creating convection and diffusion to achieve uniform mixing. The equipment typically consists of a stainless steel drum, a drive unit, and a control system.

Working Principle of a Stainless Steel Rotary Drum Mixer

1. Feeding: Materials are loaded into the stainless steel drum through a top or side feed port (usually an open design or sealed pipeline).
2. Mixing: Driven by a motor, the drum rotates at a constant speed. Materials inside rise with the drum wall to a certain height, then fall freely. Uniform mixing is achieved through gravity-induced diffusion and convection. Some models are equipped with guide plates or spiral blades inside the drum to enhance mixing efficiency.
3. Discharging: After mixing is complete, the drum reverses rotation or discharges materials through a bottom discharge door (often equipped with a pneumatic/manual control valve), ensuring no residue and easy cleaning.

Main Application Fields

1 .Food Processing (High-Frequency Scenario)

• Condiments & sauces: Mixing chili sauce, broad bean paste, and seasoning powders (e.g., five-spice powder, pepper powder) to ensure uniform dispersion without caking.
• Marinating & coating: Tumbling and marinating salted fish, chicken feet, and meat to promote seasoning penetration; sugar-coating or film-coating snacks (e.g., shredded squid, nuts).
• Granular material mixing: Blending eight-treasure porridge ingredients (oatmeal, beans), tea leaves, and grains without causing breakage.

2.Pharmaceutical & Chemical Industries

• Pharmaceutical industry: Uniform mixing of pharmaceutical raw materials, excipients, and granular medicines, complying with GMP hygiene standards.
• Chemical industry: Mixing powdery/granular materials such as pigments, catalysts, chemical fertilizers, and pesticides. Corrosion-resistant materials are used to adapt to strong acid/alkali environments.

3. Feed & Agriculture

• Feed production: Uniform mixing of dry powder or granular feed to improve the distribution of nutritional components.
• Agricultural processing: Seed coating and pesticide mixing (e.g., fungicides) to ensure even adhesion of chemicals.

4.Other Industrial Scenarios

• Ceramics & building materials: Mixing refractory materials and ceramic powders.
• Plastics & new materials: Blending color masterbatches and plastic particles to avoid degradation of heat-sensitive materials.

Technical Advantages

1 .Material & Hygiene

• Corrosion resistance: Made of 304/316 stainless steel, suitable for high-hygiene scenarios (food, chemical, pharmaceutical). It resists acid and alkali corrosion, extending equipment service life.
• Easy-to-clean design: The inner drum wall is polished without dead corners; the fully enclosed structure prevents cross-contamination, meeting GMP/HACCP standards.

2. Mixing Efficiency & Effect

• Gentle yet efficient mixing: Relying on drum rotation and gravity, materials fall freely to form diffusion and convection, protecting the integrity of fragile particles (e.g., seasoning powder, pharmaceutical raw materials).
• Optimized guide structure: Some models are equipped with spiral blades or guide plates to enhance material movement and shorten mixing time.

3. Operational & Maintenance Convenience

• Intelligent control: Supports speed adjustment, timed operation, and forward/reverse rotation switching (forward for mixing, reverse for discharging), reducing manual intervention.
• Low-noise operation: The motor + reducer transmission system is paired with rubber wheel friction drive, resulting in lower noise than traditional mixing equipment.

4 .Flexible Adaptability

• Multi-functional application: Can handle various materials (powder, granules, slurry) and adapt to scenarios such as food marinating (salted fish, sauces) and chemical powder mixing (pigments, catalysts).
• Customizable design: Supports customization of drum capacity, discharge method (pneumatic valve/bottom discharge), and power to meet different production needs.

5. Economic Advantages

• Low energy consumption: The gravity mixing principle reduces energy use, saving over 30% electricity compared to forced mixers.
• Low maintenance cost: Simple structure with no complex mixing blades, leading to a low failure rate.

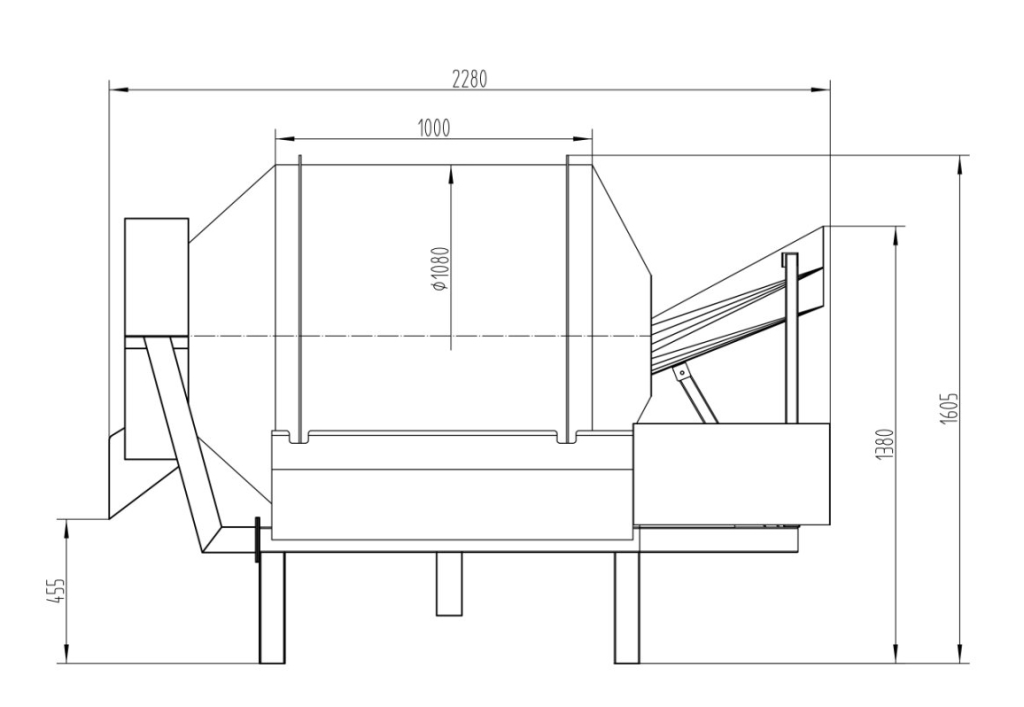

Models & Configurations

Stainless Steel Rotary Drum Mixers come in different models and configurations based on material type, production requirements, and application scenarios. Common models and specifications are as follows:

Stainless Steel Rotary Drum MixerSelection Guide

When purchasing a rotary drum mixer, select the model based on the following key factors:

1. Material Characteristics
   • Material state (powder, granules, flakes, or liquid-containing slurry) requires matching guide structures.
   • Special material properties: Corrosive materials (chemical raw materials) need 316 stainless steel; heat-sensitive materials (pharmaceuticals) require a gentle mixing design.
2. Production Capacity
   • Choose the appropriate model based on production scale and daily material processing volume. Equipment capacity is usually evaluated by hourly processing volume.
3. Customization Needs
   • Additional functions: Liquid adding, spraying, drying, or cooling (e.g., “liquid-spray drum mixers” for eight-treasure porridge ingredient mixing).
   • Sealing requirements: Pharmaceutical scenarios require shaft-end air sealing + bag dust removal.
   • Capacity customization: Select drum size based on batch quantity.
   • Power adjustment: High-viscosity materials (e.g., sauces) require increased motor power.
4. Power Requirements
   • Choose a motor with appropriate power based on material characteristics and mixer load to ensure efficient operation.
5. Equipment Space
   • Consider installation space: Larger-capacity equipment requires more space for installation and operation.
6. Maintenance
   • Evaluate maintenance cycles and convenience: Easy-to-maintain mixers reduce downtime and maintenance costs.

How to Extend the Service Life of a Stainless Steel Rotary Drum Mixer?

Motor and reducer: Dismantle and clean carbon brushes and gears annually; replace worn bearings.

1.Thorough Cleaning

Rinse immediately after use: Wash the inside and outside of the drum with clean water after each operation to prevent material residue from solidifying (e.g., sauces). Use a soft brush to clean dead corners if needed (do not scratch with hard objects).

2.Lubrication Management

Regularly add lubricating oil: Replenish grease (lithium-based or sodium-based grease is recommended) to bearings, gears, and other transmission parts every 1–2 weeks. Replace the mechanical oil in the reducer every 500 hours.

3.Avoid Overload Operation

Load materials according to the equipment’s rated capacity; overloading is prohibited.

4.Correct Start-Stop Operation

Run the mixer idly before starting to check for abnormal noise or vibration. Ensure the drum is empty before stopping to avoid restarting with materials inside.

5.Parts Inspection & Replacement

Blades and liners: Check for wear monthly; tighten, repair, or replace loose, deformed, or worn blades.

Seals: Inspect the drum end cover and discharge port seals every six months; replace aging or damaged seals promptly.

Belts/chains: Adjust tightness (sag < 15mm); replace severely worn ones simultaneously.
