Rotary Drum Mixer

Rotary Drum Mixer: A Comprehensive Guide

What is a Rotary Drum Mixer?

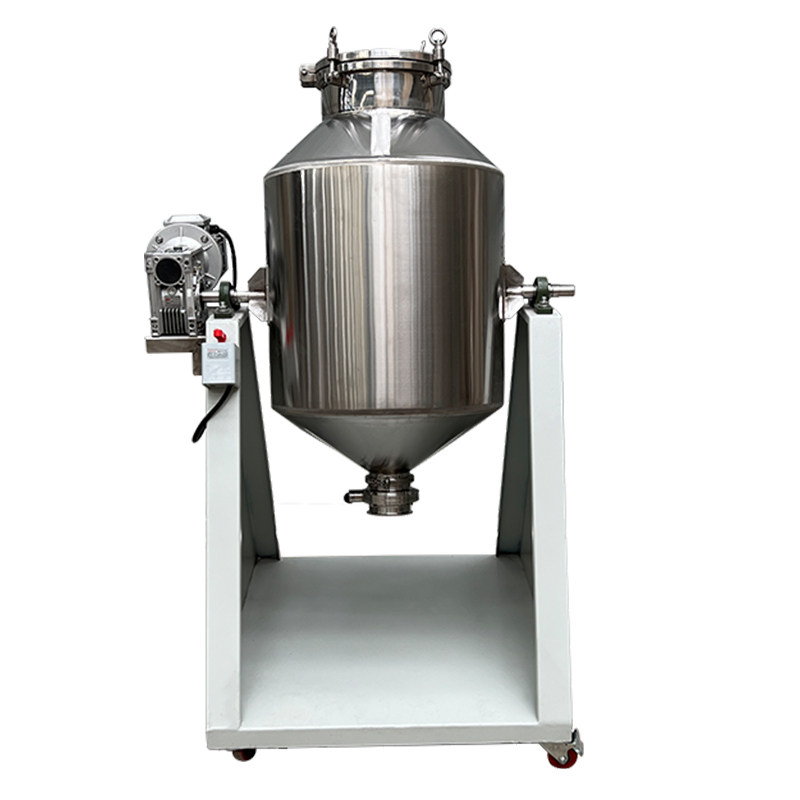

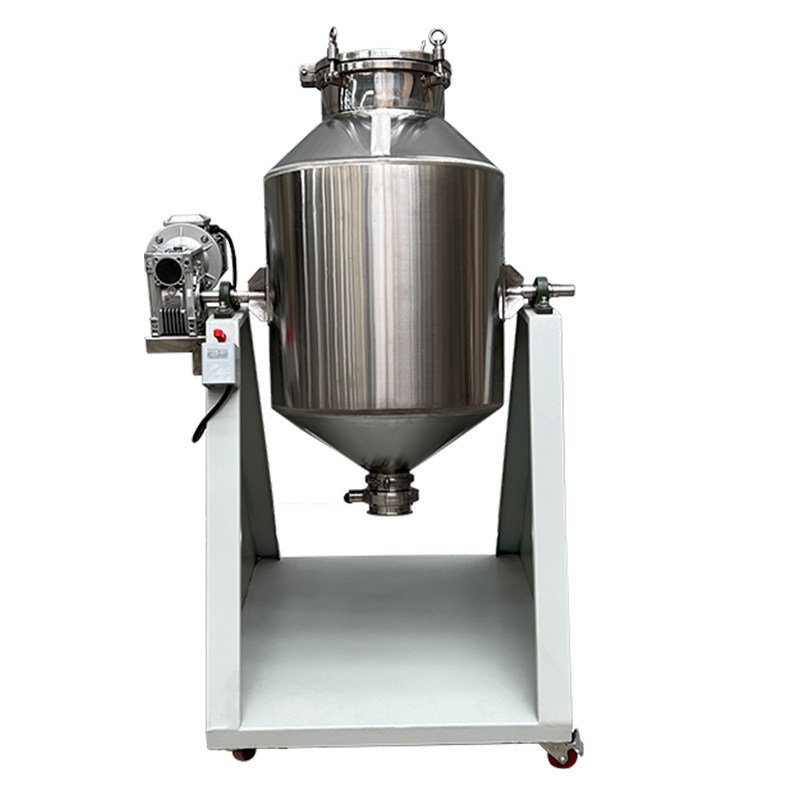

The rotary drum mixer features a drum body shaped like a waist drum. Driven by a motor, the horizontally or obliquely installed drum rotates 360°, causing materials inside to repeatedly tumble, shear, and disperse, achieving uniform mixing in three-dimensional space. The mixing uniformity can reach 99.5% (CV ≤ 3%).

Working Principle of Rotary Drum Mixer

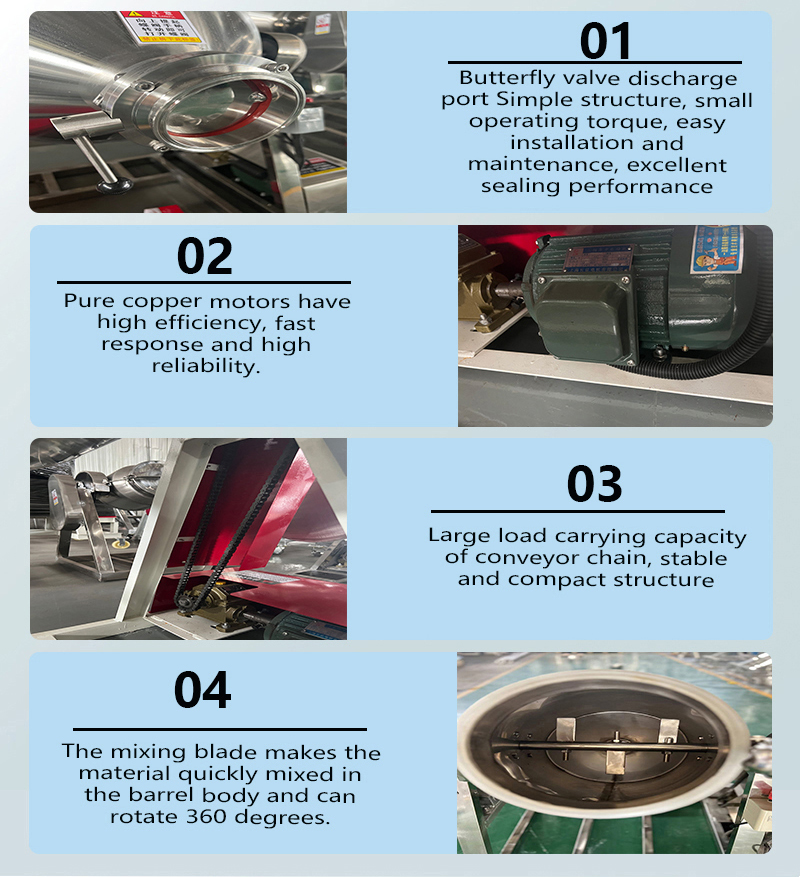

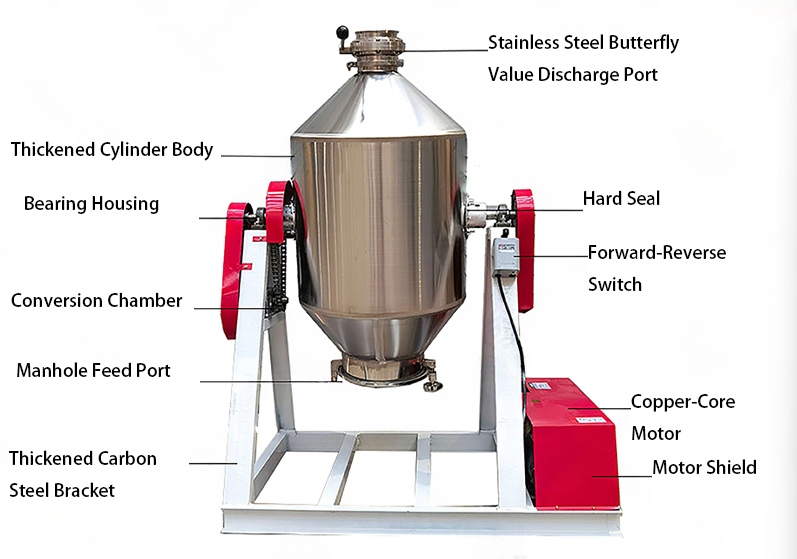

1. Drum Structure

• Waist-drum Design: Eliminates right-angle residues and reduces cleaning dead corners.
• Internal Components: Spiral blades (enhance axial material flow).

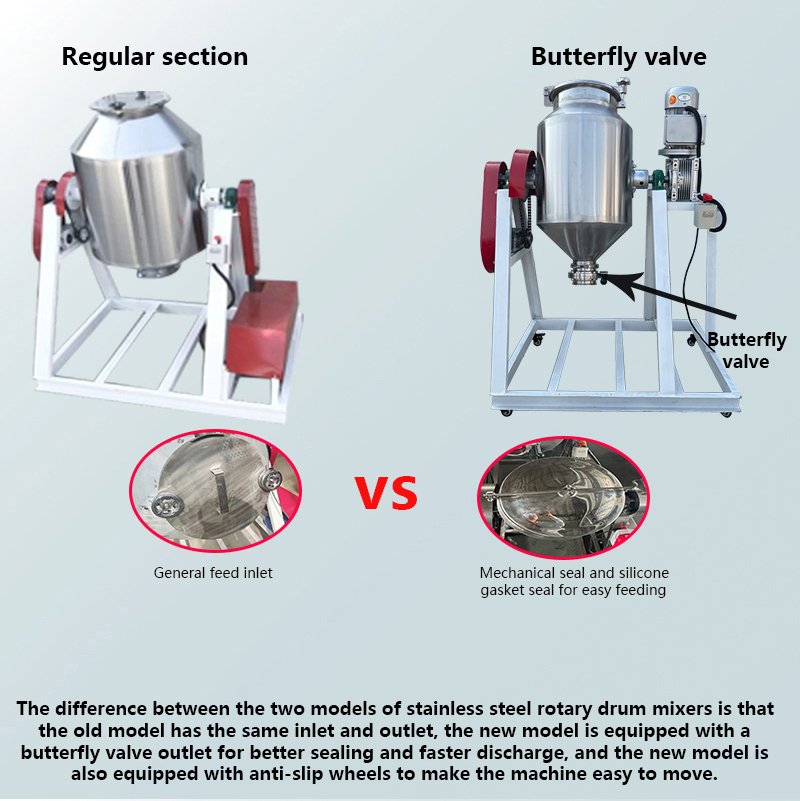

2. Sealing System

• Equipped with mechanical seals + silicone gaskets, ensuring a dust leakage rate of ≤ 0.01% (a critical indicator for chemical/pharmaceutical industries).

3. Working Process

• The motor drives the drum to rotate 360°, while the stirring blades inside the drum rotate in the opposite direction, creating dual motion:
  • Drum rotation makes materials tumble and disperse repeatedly under gravity.
  • High-speed stirring blades shear and crush materials, realizing 3D uniform mixing.

Main Application Fields of Rotary Drum Mixer

1. Food Processing Industry

Uniform mixing of seasonings (e.g., salt, sugar, chicken essence), flour, cocoa powder, and protein powder.

2. Pharmaceutical & Chemical Industries

• Pharmaceutical: GMP-grade mixing of active pharmaceutical ingredients (APIs) and excipients, with precise proportioning of trace additives (≤ 0.1%).
• Chemical: Stirring of catalysts, rubber additives, and pigment powders.

3. Feed & Agricultural Processing

Mixing of feed powders with trace elements (e.g., vitamin premixes) or uniform stirring of grains and legumes.

4. Special Industrial Fields

Fine mixing of magnetic powder, ceramic powder, and fluorescent powder; or preparation of welding materials and refractory materials.

Technical Advantages of Rotary Drum Mixer

1. High-Efficiency Mixing Technology

• Reverse Dual-Speed Stirring: Combined rotation of the 360° drum and reverse rotation of internal spiral blades, achieving a mixing uniformity of over 99.5%. It can handle trace additives (e.g., 0.1% ratio) with an error rate of ≤ 0.1% (a core requirement for pharmaceutical/feed industries).

2. Structural Design & Durability

• Corrosion-Resistant Materials: 304/316 stainless steel contact surfaces, complying with FDA/GMP hygiene standards, suitable for food, pharmaceutical, and other high-demand scenarios.
• Sealing & Leakage Prevention: Mechanical seal + silicone gasket design, with a dust leakage rate of ≤ 0.01% (a key indicator for the chemical industry).
• Low-Maintenance Design: Quick-detachable stirring paddles and arc-shaped drum (no dead corners), reducing cleaning time to ≤ 15 minutes and minimizing cross-contamination risks.

3. Intelligence & Safety

• Intelligent Control: Supports variable frequency speed regulation and overload protection (automatic power-off threshold: ±10%).
• Low Noise (≤ 75dB) & Low Vibration: Improves the working environment.

4. Application Scope & Compatibility

• Multi-Scenario Adaptation: Capacity ranges from 60L to 1000L (customizable), compatible with powder, granular materials, and trace liquid addition (e.g., feed premixes).
• Industry Universality: Applicable to food (seasonings, flour), pharmaceutical (API), chemical (catalysts), and feed (trace elements) industries.

5. Energy Efficiency & Economy

• Low-Energy Operation: Power range of 2.2kW-7kW, saving 20%-30% energy compared to similar equipment.

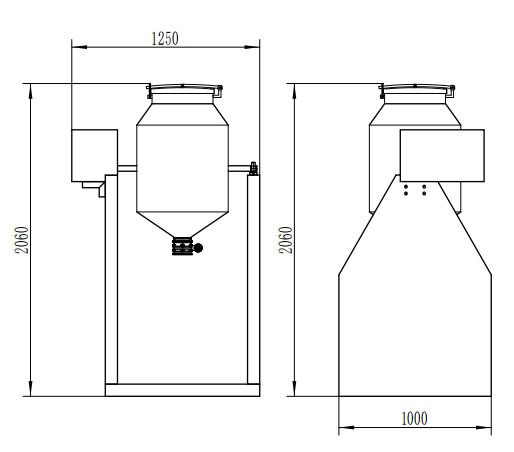

Models & Configurations of Rotary Drum Mixer

Different models and configurations are available based on material types, production requirements, and application scenarios. Common specifications are as follows:

Selection Guide for Rotary Drum Mixer

When purchasing a rotary drum mixer, select the right model based on the following key factors:

1. Material Characteristics

• Factors such as material particle size, humidity, and viscosity affect mixer selection. For high-viscosity and hard-to-mix materials, choose a dedicated rotary drum mixer.

2. Production Capacity

• Select the appropriate mixer model according to production scale and daily material processing volume. Equipment capacity is usually evaluated based on hourly processing volume.

3. Power Requirements

• Choose a motor with suitable power based on material characteristics and mixer load to ensure efficient operation.

4. Equipment Space

• Consider the installation space when selecting a rotary drum mixer. Larger-capacity equipment requires more space for installation and operation.

5. Maintenance & Upkeep

• Evaluate the maintenance cycle and convenience of the equipment. Choosing an easy-to-maintain mixer can reduce downtime and maintenance costs.

How to Extend the Service Life of Rotary Drum Mixer?

1. Standardized Operation

• Check fasteners, sealing performance, and foreign objects before startup.
• Avoid overloading; load materials according to the rated capacity (loading rate: 30%-60%).

2. Thorough Cleaning

• Clean residual materials immediately after each batch use, focusing on the contact surface between the stirring paddle and the drum wall.
• Do not rinse the motor/bearing with high-pressure water (use a soft cloth for wiping).

3. Regular Lubrication

• Add high-temperature resistant grease to bearings/gears every 500 hours.
• Check oil seals for leakage and replace hardened seals in a timely manner.

4. Preventive Maintenance

• Inspect blade wear monthly (replace if deformation exceeds 3mm).
• Listen for abnormal operation noises (a precursor to bearing damage) and measure motor temperature rise (normal if ≤ 65℃).

5. Environmental Management

Cut off power for long-term idle equipment, apply anti-rust oil inside the drum, and cover it for dust prevention.

Ground the equipment to prevent static electricity (for chemical dust scenarios).
