Cardamom Powder Making Machine

Cardamom, known as the “Queen of Spices”, continues to dominate the global food, beverage and pharmaceutical markets. The market size is expected to reach $3.72 billion by 2026.

Faced with such market opportunities, your cardamom powder production must not stop at basic grinding.

Are you troubled by these problems: uneven particle size, low batch processing efficiency, which further affects your core competitiveness?

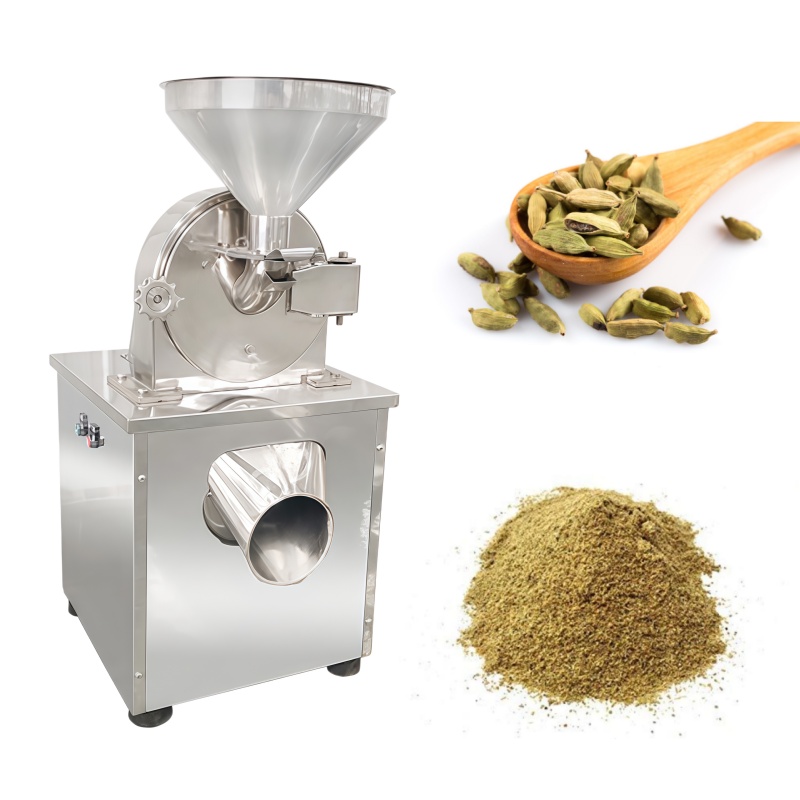

Our Cardamom Powder Making Machine is specially designed to solve these pain points. Combining cutting-edge technology and decades of experience in spice processing, we create an excellent solution that meets the demanding requirements of global buyers.

Table of Contents

1. How to Choose the Right Cardamom Powder Making Machine?
2. How to Operate the Cardamom Powder Making Machine?
3. Which Cardamom Powder Making Machine Is Suitable for Large-Scale Production?
4. Why Do Global Buyers Trust Pcreate Machinery’s Cardamom Powder Making Machine?
5. Summary and Recommendations
6. FAQs
7. About Pcreate Machinery

1. How to Choose the Right Cardamom Powder Making Machine?

1.1 Material of Cardamom Powder Making Machine: 304 Stainless Steel is the First Choice

Cardamom contains oil and volatile oil, which easily react with metals, and the processing process must meet food hygiene standards.

Therefore, the cavity, cutter head and screen that contact materials must be made of 304 stainless steel. Some high-end models can use 316 stainless steel to improve corrosion resistance.

It must meet GMP and FDA certification requirements to avoid rust pollution and flavor cross-contamination caused by carbon steel.

1.2 Grinding Performance of Cardamom Powder Making Machine: Match Fineness and Capacity

• Fineness Adjustment: For commercial use, it is recommended to choose an adjustable range of 0.5–10 mm (60–200 mesh). For high-end spice processing, 200–300 mesh ultra-fine models can be customized to ensure adaptation to different product needs such as composite seasoning powder and hot pot base.
• Capacity Matching: Calculate hourly capacity based on daily output.
  • Small workshops (50–200 kg/day): 4 kW model (100–200 kg/h)
  • Medium factories (500–1000 kg/day): 7.5–15 kW model (300–800 kg/h)
  • Large production lines (over 1 ton/day): customized equipment above 22 kW
• Structure Selection: Tooth-claw or tooth-disc type (spindle speed 3000–4500 r/min) is suitable for fine grinding with good particle uniformity.

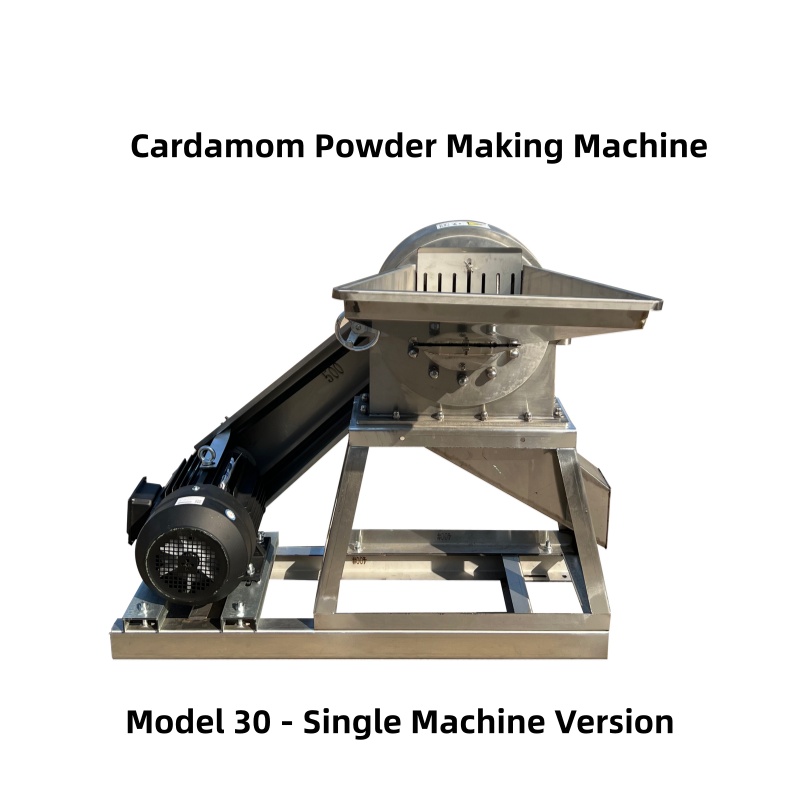

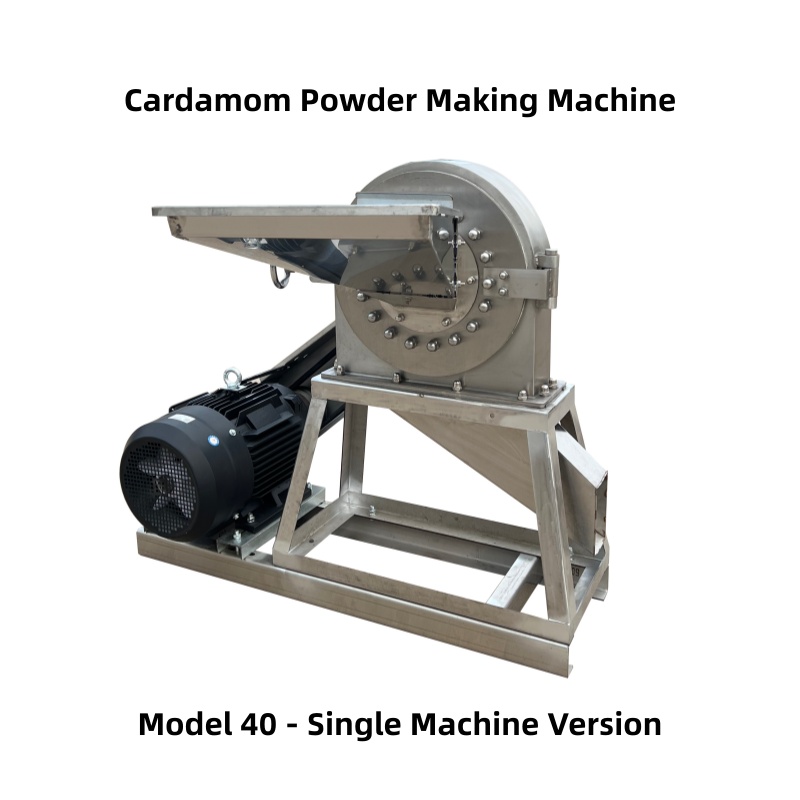

Model Specifications

1.3 Temperature Control Design: Avoid Aroma Loss

The volatile oil of cardamom is easy to volatilize when the temperature exceeds 45°C, resulting in weak flavor.

Therefore, the Cardamom Powder Making Machine needs to be equipped with a cooling system:

• Small models: air cooling
• Medium and large equipment running continuously for more than 30 minutes: water cooling jacket required

Control the grinding chamber temperature below 40°C to maximize the retention of aroma components.

1.4 Sealing and Cleaning: Dust-Free + Easy to Disassemble and Wash

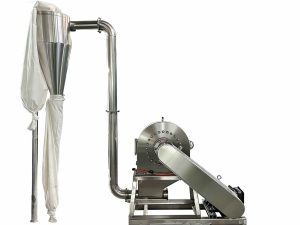

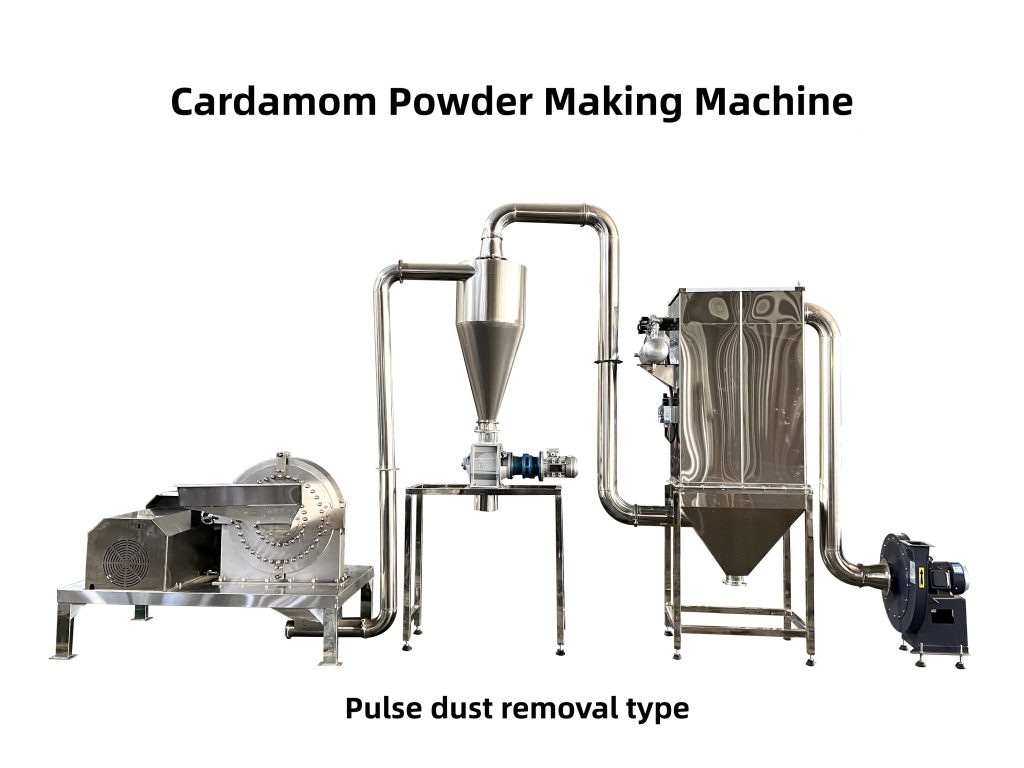

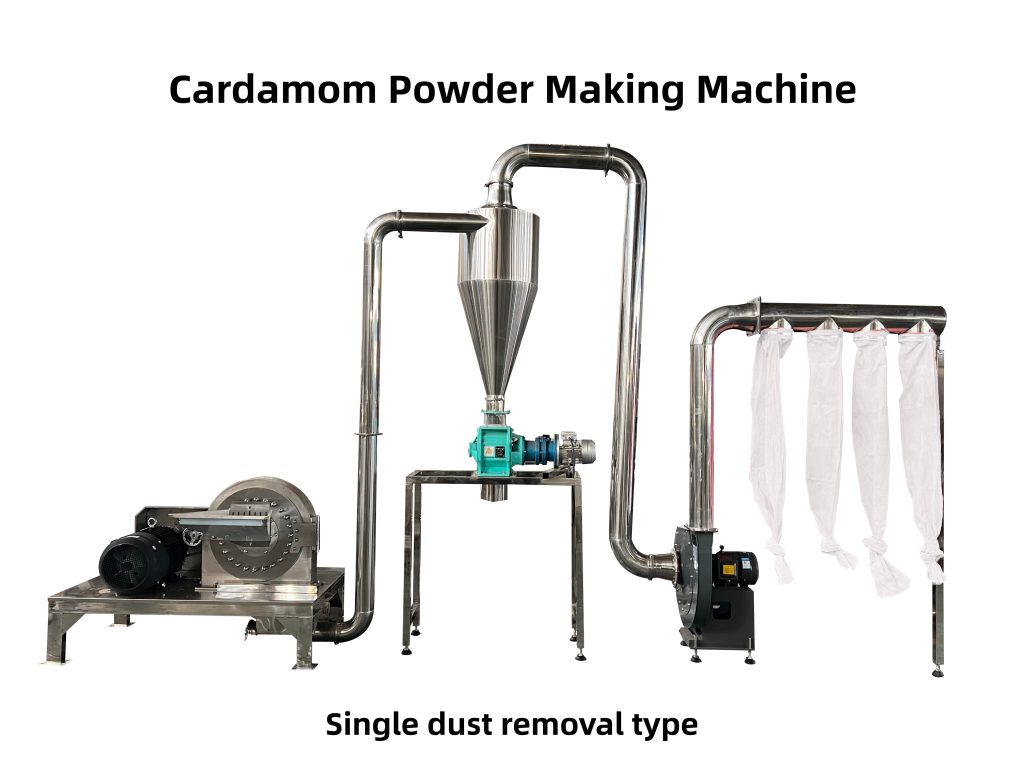

• Sealing Performance: Fully enclosed dust-free structure to prevent dust overflow, equipped with dust removal system, reduce aroma leakage, and meet workshop environmental protection requirements.
• Cleaning Convenience: Quick screen replacement, split cavity design, no powder accumulation gaps, support sterile water washing, avoid oil residue oxidation and deterioration, especially suitable for multi-variety alternate production.

1.5 Compliance and Certification

• Provide production license, ISO9001 quality system certification
• Have CE certification, material contact parts pass FDA testing

Recommendation by User Type

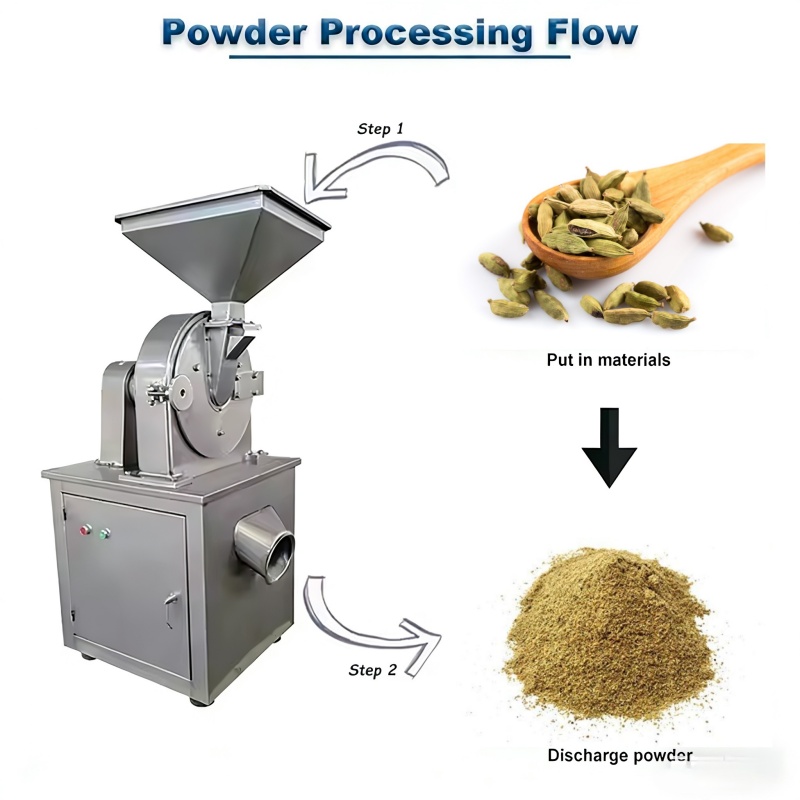

2. How to Operate the Cardamom Powder Making Machine?

2.1 Startup Procedure

1. Turn on the main power and confirm the power indicator is on.
2. Start the dust removal system (if any) and run for 3–5 minutes to remove dust in the pipeline.
3. Press the FWD button, or use JOG to test whether the rotation direction is correct (clockwise is forward). Start the main machine after no abnormality and run idle for 2–3 minutes.
4. Observe the operation status: no abnormal noise, vibration, normal bearing temperature, normal cooling system (water temperature ≤40°C for water cooling models) before feeding.

2.2 Feeding and Operation Monitoring

• Feeding operation: Use a special feeding rod to feed evenly and continuously. Do not put hands or arms directly into the feeding port. Control feeding speed to avoid overloading.
• Real-time monitoring: Do not leave without permission during operation. Pay close attention to 3 points:
  • Grinding chamber temperature (≤40°C)
  • Equipment status (no severe vibration, abnormal noise, stable current)
  • Discharge status (uniform powder, no blockage)
• Special operation: To adjust fineness, stop the machine to replace the screen. Clean the machine before changing materials to avoid cross-contamination. Rest for 5 minutes after continuous operation for more than 30 minutes.

2.3 Troubleshooting (Faults During Operation)

• Material Blockage: Press STOP immediately, cut off power and hang a “Do Not Switch On” warning sign. Open the cleaning door to clear after the machine stops completely. Do not reach in to clean during operation.
• Overheating: If temperature >45°C, stop feeding, run idle for 1–2 minutes, check the cooling system.
• Abnormal Noise / Vibration: Stop immediately, check spindle balance, loose bolts or cutter head wear.

2.4 Shutdown Procedure

1. Stop feeding first, let the machine run forward until materials are completely discharged (about 1–2 minutes).
2. Press STOP and turn off the main power.
3. After the main machine stops, turn off the dust removal system and main power.

2.5 Cleaning and Arrangement

• Equipment cleaning: Disassemble screens, feeding ports, clean residue with brush, wash with sterile water, dry with cloth. For oily materials, grind a small amount of coarse salt to clean the cavity.
• Site arrangement: Collect finished cardamom powder, store in sealed condition, clean the working area.
• Record filling: Record operation time, raw material consumption, output, equipment status and fault handling.

2.6 Daily Maintenance Points

• Daily: Clean grinding chamber and screen, check fasteners and cooling system.
• Weekly: Check cutter head / tooth claw wear, adjust belt tension, add lubricating oil.
• Monthly: Replace worn screens and wearing parts, test electrical insulation, clean motor heat sink.
• Long-term shutdown: Empty materials, apply anti-rust oil, store in dry and ventilated place.

2.7 Safety Red Lines

• It is forbidden to operate without certificate, modify parameters or remove protective devices without permission.
• It is forbidden to reach or probe into dangerous areas during operation.
• It is forbidden to grind flammable, explosive, corrosive materials or hard objects beyond capacity.
• It is forbidden to operate electrical buttons with wet hands or smoke in areas with excessive dust concentration.
• It is forbidden to clean, repair or adjust without cutting off power.

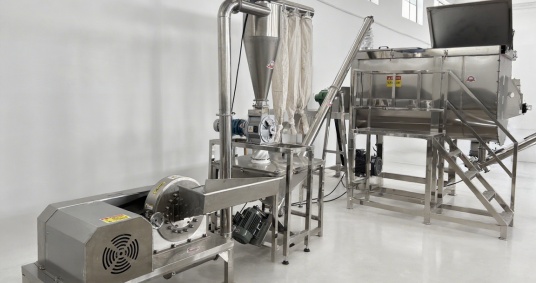

3. Which Cardamom Powder Making Machine Is Suitable for Large-Scale Production?

If you are a large cardamom powder processing factory and need large-scale production with an output of more than 1000 kg/h, we recommend our Cardamom Powder Production Line.

This production line features continuous automatic production, fast processing speed, high output and good quality. It completes grinding, mixing, packaging and other processes.

It includes Cardamom Powder Making Machine, Mixer, Elevator, Packaging Machine and other equipment. It is also suitable for coffee beans, chili, sugar and other food and seasonings.

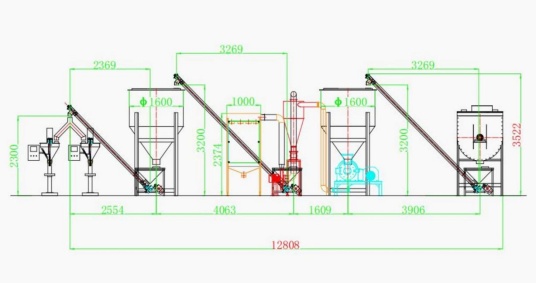

3.1 Technical Parameters of Cardamom Powder Production Line

The production line can be customized according to your needs.

3.2 Advantages

• Customizable: Configure different lines according to output demand, automatic or semi-automatic mode.
• Easy to operate: Easy installation, ready to use after power on, easy to disassemble and clean.
• Ensure high quality: Low-temperature grinding retains color and nutrients, all food-grade stainless steel.
• Wide application: Suitable for cardamom, coffee beans, cocoa beans, chili, sugar, etc.

3.3 Core Stages of Cardamom Powder Production Line

1. Grinding
   1. Core equipment: cardamom powder making machine
   2. Key points: low-temperature grinding, water cooling system, 304/316 stainless steel, pulse dust removal.
2. First Lifting
   1. Core equipment: screw elevator
   2. Function: closed and dust-free vertical conveying.
3. Mixing and Stirring
   1. Core equipment: 3D motion mixer or double spiral conical mixer
   2. Key points: mixing uniformity >99%, complete discharge, no residue.
4. Second Lifting
   1. Core equipment: screw elevator
   2. Function: buffer between mixing and packaging, stable feeding.
5. Automatic Packaging
   1. Core equipment: automatic packaging machine
   2. Key points: high-precision weighing, multiple packaging forms, good sealing.

4. Why Do Global Buyers Trust Pcreate Machinery’s Cardamom Powder Making Machine?

4.1 Advanced Technology: Directly Solve Cardamom Processing Pain Points

1. According to the characteristics of cardamom “high oil content, easy volatile aroma”, our machine adopts dual cooling technology (water + air), strictly controls the temperature below 40°C, maximizes the retention of volatile oil. Innovative tooth-claw structure with 60–200 mesh adjustable screen.
2. All material contact parts are 201/304/316L stainless steel, certified by FDA & GMP. Fully enclosed dust-free design, low noise, key parts imported, fatigue life over 8000 hours.

4.2 Compliance and Certification: Access to Global Markets

1. Domestic certifications: ISO9001, food machinery safety certification, in line with GB/T 25430-2010.International certifications: CE, FDA, HALAL, KOSHER, directly enter Europe, US, Southeast Asia, Middle East.
2. Support local customization: moisture-proof design for Southeast Asia, IP55 protection; ultra-fine models and CIP cleaning system for Europe and US; multi-language interface (Chinese, English, Arabic, Spanish).

4.3 Service and Reputation: Global Trust Support

1. Full-chain service: pre-sales (free test, capacity calculation, custom scheme), in-sales (multilingual training), after-sales (24-hour response).
2. 10+ years R&D experience, annual output 2000+ units, delivery within 7 days for conventional models.
3. Exported to 30+ countries, 500+ overseas enterprises, repeat purchase rate over 65%.
4. Emergency stop, quick-disassembly screen, overload protection, safe and efficient operation.

5. Summary and Recommendations

Seize the $3.72 billion cardamom market! Don’t let insufficient grinding technology hinder your expansion.

Pcreate Cardamom Powder Making Machine helps you solve quality and efficiency problems with temperature control, uniform fine grinding and high-efficiency mass production, easily meet global market requirements.

Contact us now for free capacity calculation, customized solutions and overseas market access support.

Maximize the value of the “Queen of Spices” and grow with you in the trillion-level growth feast!

6. FAQs
7. Which is the best Cardamom Powder Making Machine for small or household use?

The Model 400 single Cardamom Powder Making Machine produced by Zhengzhou Pcreate Machinery is the most suitable choice. Capacity 100–300 kg/h, fineness 60–200 mesh, small footprint.

2. How to get different fineness of cardamom powder?

The fineness can be adjusted by replacing screens with different apertures.

3. How to prevent cardamom powder from flying around?

A dust removal device can be installed at the back end or buy a machine with a dust removal device.

4. Can this machine process other raw materials?

Yes. It can grind various fruits, vegetables, dried herbs, seasonings and food materials, such as coffee beans, cocoa beans, dried banana slices, white sugar, etc.
