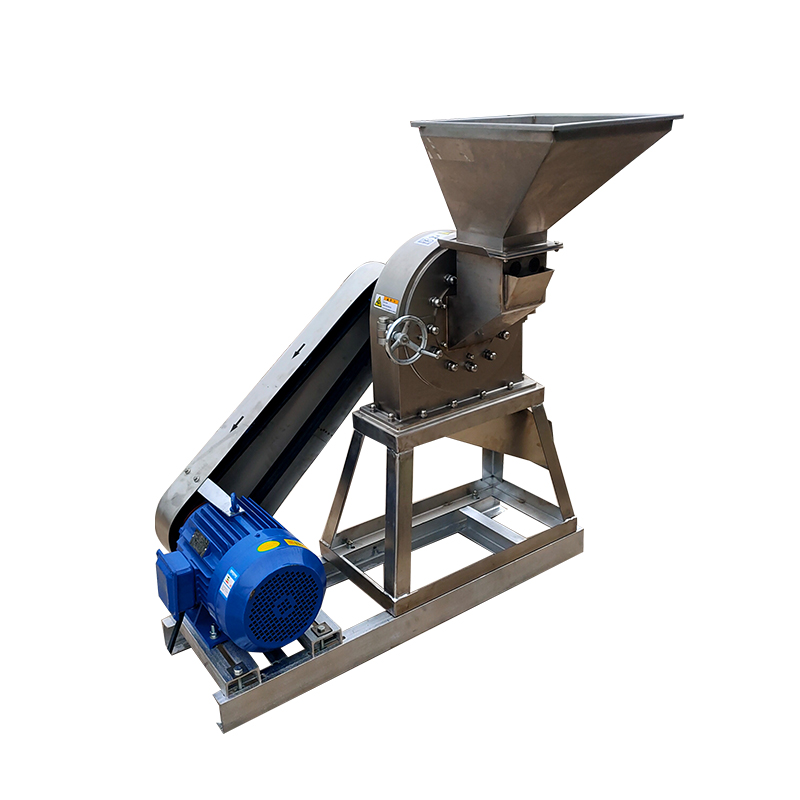

Stainless Steel Salt Crusher

The stainless steel salt crusher is a specialized crushing device designed to grind coarse salt (such as iodized salt, sea salt, rock salt, rose salt, etc.) into fine powder. Its core feature lies in the use of food-grade stainless steel for the main components that come into contact with the salt, ensuring a hygienic, efficient, and durable grinding process.

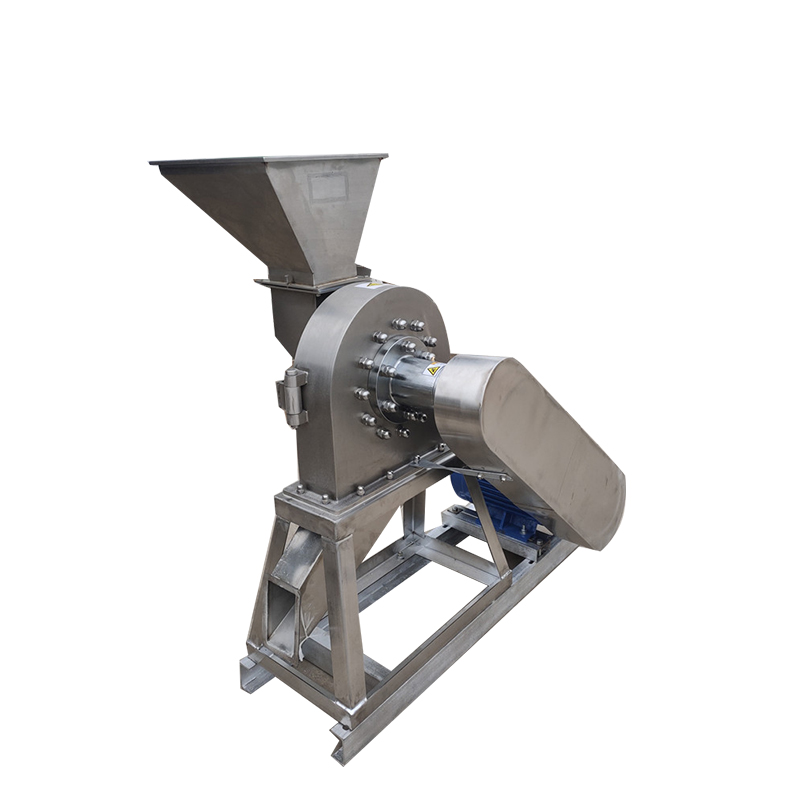

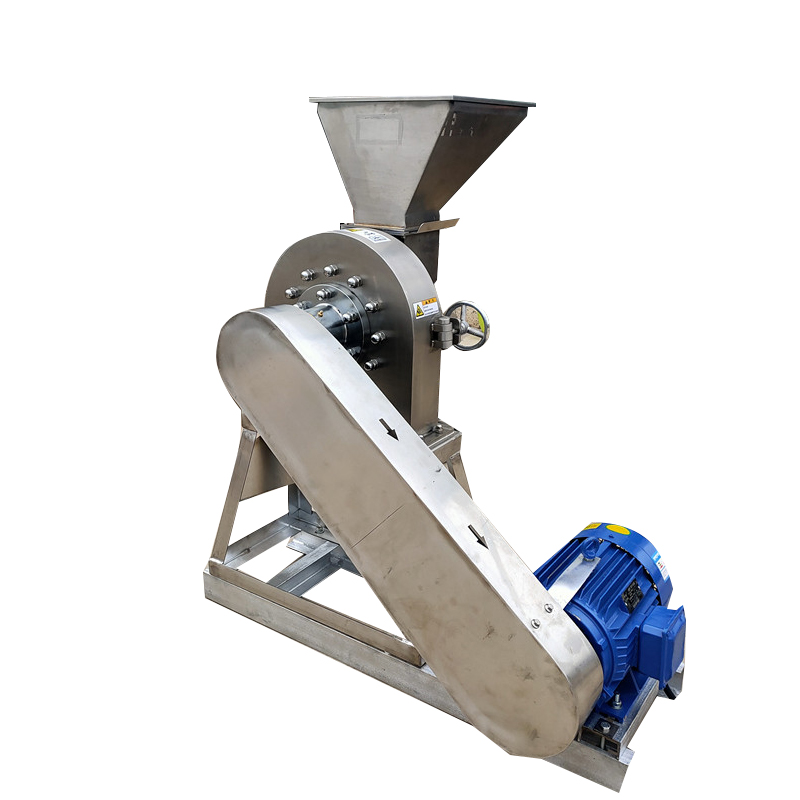

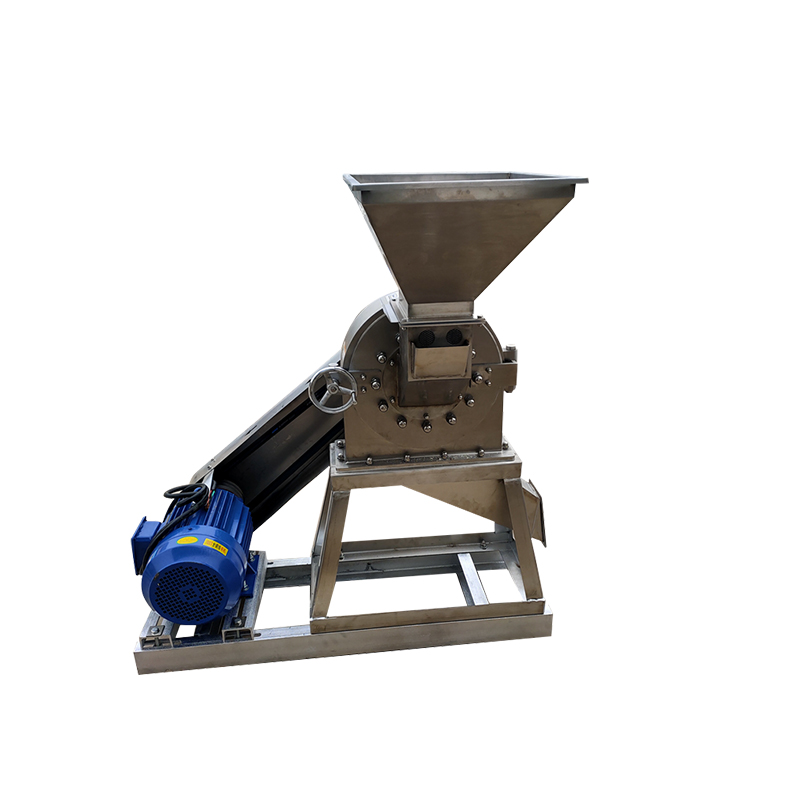

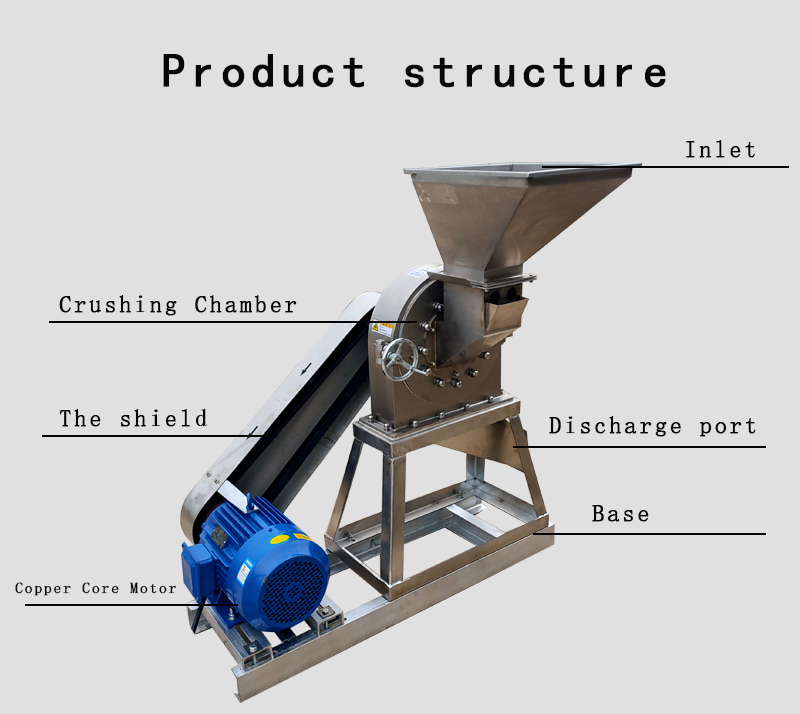

Structure and Working PrincipleThe stainless steel salt crusher is equipped with a main unit mounted on the base. The main unit includes a body and a crushing chamber formed by the body and a connected access door.

• The body contains bearings and a main shaft supported by the bearings.
• One end of the main shaft extends outside the body and is fitted with a pulley, while the other end inside the crushing chamber is equipped with a rotor.
• Both ends of the bearings are sealed with inner and outer end covers.
• The rotor is fixed with multiple rings of steel teeth, which are interlocked with a toothed disk fixed inside the access door.
• The upper part of the access door features a feed inlet, above which a feed hopper is installed.
• The lower part of the access door has a discharge outlet.

Through the relative motion between the fixed toothed disk and the moving toothed disk, the material is crushed by impact, collision, and friction. The crushed material passes through a screen and is discharged out of the machine through the discharge outlet. The fineness of the discharge can be adjusted by replacing screens with different mesh sizes.

Features and Advantages

Material:The entire machine is made of 304 stainless steel, which is corrosion-resistant and acid-resistant.
Surface Treatment: The inner wall of the casing is machined to achieve a smooth surface, eliminating issues such as roughness and powder accumulation.
Feed System:The upper part is equipped with a feed hopper, and below the hopper, there is an external feed adjustment plate. Depending on the brittleness of the material and the desired fineness, the adjustment plate should be set to the appropriate position (controlling the feed rate) and locked. A spiral feeder can also be installed upon customer request.
Crushing Efficiency: The crushing blade set includes internal blades, which increase the airflow within the crushing chamber. This not only ensures output but also reduces the temperature generated during crushing, making it more suitable for crushing materials with poor flowability or stickiness.
Flexibility It comes with various specifications of screens to meet different fineness requirements.
Usability The machine is easy to operate and maintain.
High CapacityHigh production capacity that can meet the output demands of most users.

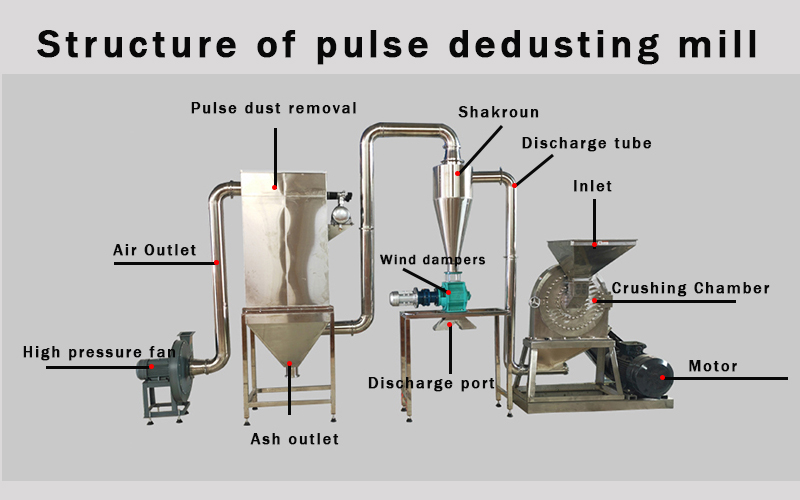

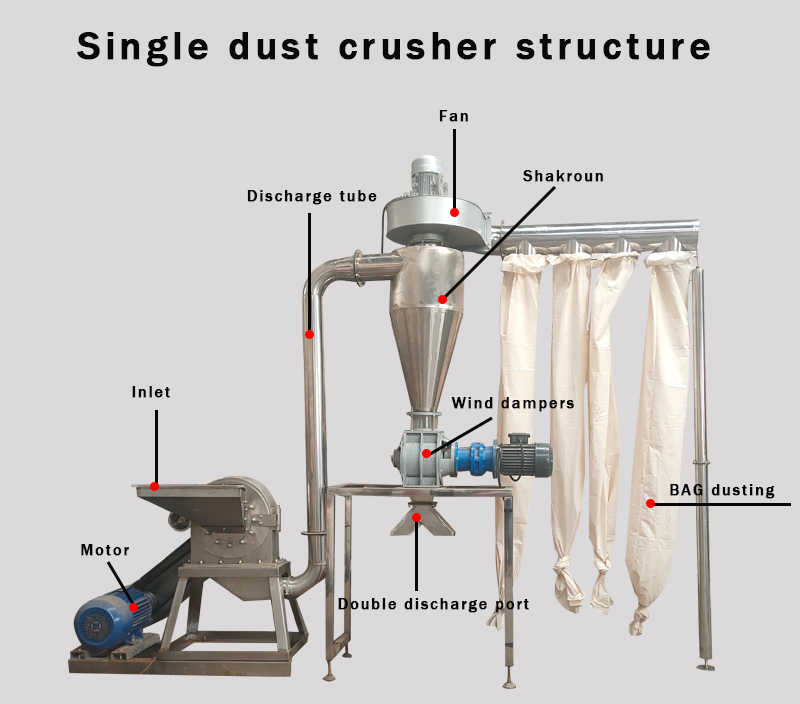

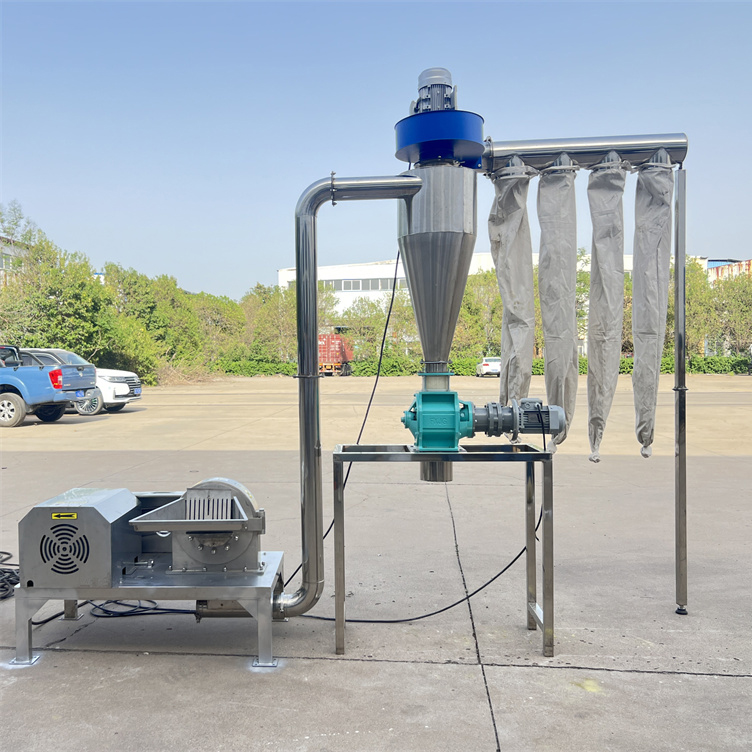

Dust ControlAvailable in two forms: with or without dust removal, catering to the needs of different customers.
Hygienic DesignThe compact structure has no dead corners, making it easy to clean.

Applicable Materials

The stainless steel salt crusher can crush a wide variety of materials, including but not limited to:

Sugars & Seasonings: white sugar, rock sugar, maltose, salt, monosodium glutamate, chicken bouillon, brown sugar, glucose
Herbs & Medicines: dried goji berries, mulberries, monk fruit, chrysanthemums, atractylodes, angelica, dried ginger, turmeric, Chinese yam, dried tangerine peel, licorice, poria cocos, ginseng, cypress leaves
Tea & Botanicals: floral tea, dark tea
Spices:chili peppers, star anise, Sichuan peppercorns, cinnamon, bay leaves, cumin, spices, green peppercorns, bell peppers, nutmeg
Grains & Legumes: wheat, corn, rice, barley, highland barley, glutinous rice, soybeans, mung beans, black beans, red beans
